Quick Details
-
Model Number:
-
N6+
-
Reflectorless:
-
1000m
-
Accuracy:
-
2''/5"
-
Field of View:
-
1°30'
-
Dust and Water Protection:
-
IP55
-
Weight:
-
5.5kg
-
Operating Temperature:
-
-20℃ ~ +50℃
-
Magnification:
-
30X
-
Image:
-
Erect
-
Minimum Focus Distance:
-
1.2m
-
Resolving Power:
-
3"
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
South
-
Model Number:
-
N6+
-
Reflectorless:
-
1000m
-
Accuracy:
-
2''/5"
-
Field of View:
-
1°30'
-
Dust and Water Protection:
-
IP55
-
Weight:
-
5.5kg
-
Operating Temperature:
-
-20℃ ~ +50℃
-
Magnification:
-
30X
-
Image:
-
Erect
-
Minimum Focus Distance:
-
1.2m
-
Resolving Power:
-
3"

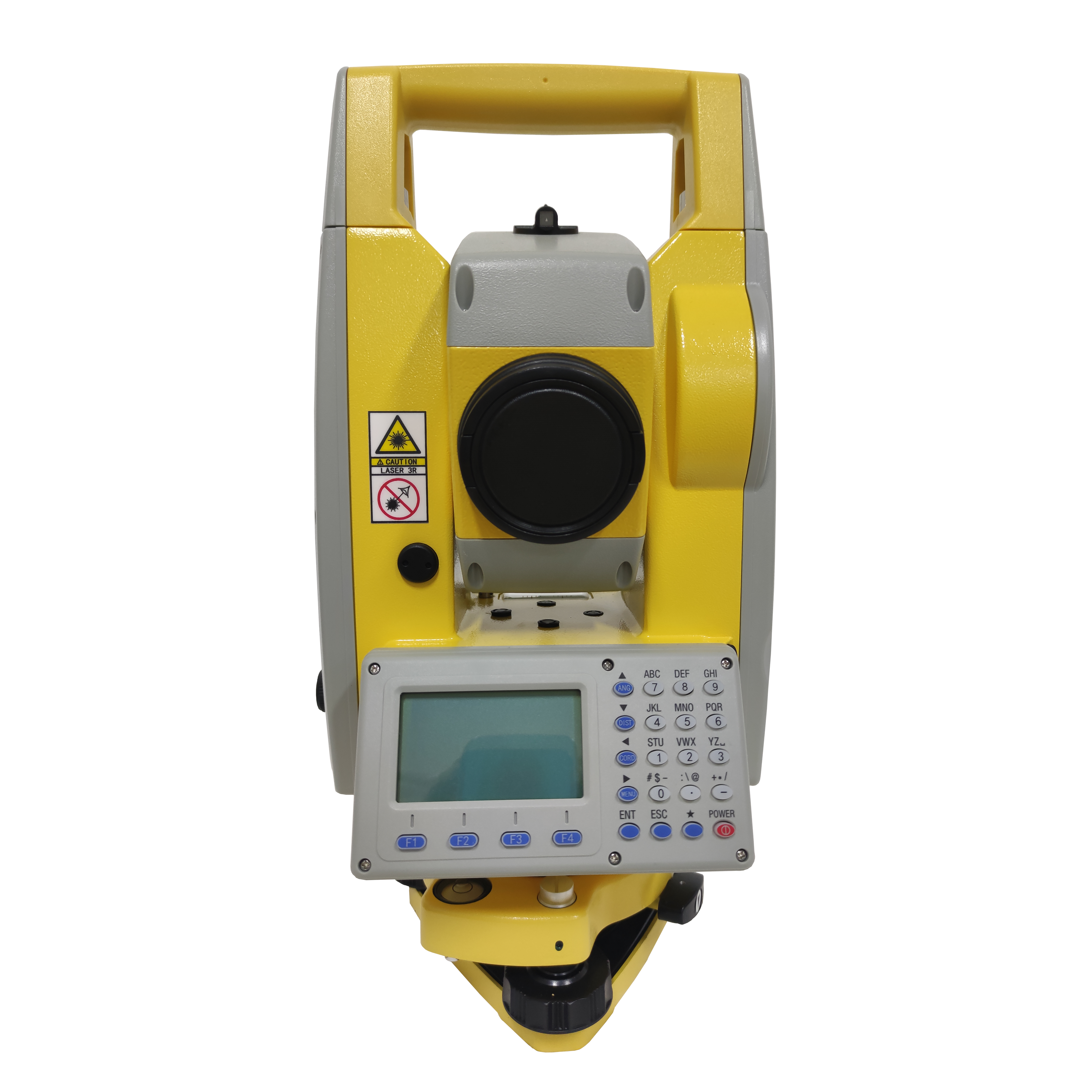

China total station High Performance survey equipment total station South N6+ with 1000m Reflectorless
South N6⁺ Series Best-Selling Total Station
Key Features
* 2" / 5" Accuracy
* Long-Range Prism (5000m) and Non-Prism (1000m/1500m) EDM
* Trigger Key, Hot key for faster operation
* Cable-Free Connection by Wireless Blue tooth or USB Stick
* Bigger internal memory, Save 96000 data block
* Longer operation Time up to 10 hours per battery
* Long-Range Prism (5000m) and Non-Prism (1000m/1500m) EDM
* Trigger Key, Hot key for faster operation
* Cable-Free Connection by Wireless Blue tooth or USB Stick
* Bigger internal memory, Save 96000 data block
* Longer operation Time up to 10 hours per battery
What is new for N6⁺
Outstanding Performance and Versatile Functions
New Battery Housing
▪Easy to lock and release
▪One hand operation
▪Easy to lock and release
▪One hand operation
Trigger Key
▪Faster operation
▪Trigger in all measurement surface
▪Faster operation
▪Trigger in all measurement surface
Easy Viewing Display
▪6-line with backlight on both faces.
▪Easy-to-use 24-key pads with alphabet entry.
▪6-line with backlight on both faces.
▪Easy-to-use 24-key pads with alphabet entry.
Relocated Tangent Screw
Lock and fine adjustmenttangent screw
Lock and fine adjustmenttangent screw
USB Flash Disk
USB disk for data import&export, more convenient and keep it safe
USB disk for data import&export, more convenient and keep it safe
New Mainboard
▪ Processor upgrade to M7. More powerful process ability
▪Lower consumption. Longer operation time up to 10 hrs by 1 battery
▪ Processor upgrade to M7. More powerful process ability
▪Lower consumption. Longer operation time up to 10 hrs by 1 battery
Bigger Memory
Up to save 96000 data blocks
Up to save 96000 data blocks
Easy-to-use Onboard System
New tool-bar design on the side of screen, which helps you
check the status of your N6⁺ Total Station in real-time.
check the status of your N6⁺ Total Station in real-time.
Choose N6⁺ to meet your topographic needs as a superior
mates. It offers a clear-to-view onboard system by it's easy-
to-use but powerful programs.
to-use but powerful programs.
Such as:
▶ Offset: angle, distance, column offset
▶ Point to Line: to calculate the coordinate of occupied
point based on a known point and line
▶ COGO: calculation of coordinate geometry
▶ Point to Line: to calculate the coordinate of occupied
point based on a known point and line
▶ COGO: calculation of coordinate geometry
New Hot Key Functions and BT Data Transfer
12 number key, 12 short path directly enter the
application, less operation steps and higher efficiency.
application, less operation steps and higher efficiency.
Cable free data transfer work with transfer software,
one key export to USB stick, generate TXT, CSV, DXF files.
one key export to USB stick, generate TXT, CSV, DXF files.
Optimized Road Program
The optimized road program offers a smart solution for
road designing, editing and laying out. The new road
program will calculate the horizontal and vertical curve in
arbitrary geometric curved algorithm.
road designing, editing and laying out. The new road
program will calculate the horizontal and vertical curve in
arbitrary geometric curved algorithm.
Work on Data Collector
After added the Blue tooth module on N6⁺, you will have
more possibilities to extend the applications on Total
Station. With open source commands, you are easy to
establish the communications between the N6+ and
other software you wish to use.
more possibilities to extend the applications on Total
Station. With open source commands, you are easy to
establish the communications between the N6+ and
other software you wish to use.
Product Description
Specification
|
|
N6 2”
|
N6 5”
|
||
|
Distance Measurement
|
|
|
||
|
Range
|
R10
|
R15
|
||
|
Reflector
|
5000m*¹
|
|
||
|
Reflectorless *²
|
1000
|
1500
|
||
|
Accuracy
|
|
|
||
|
Reflector
|
±(2+2ppm x D)mm
|
|
||
|
Reflectorless
|
±(3+2ppm x D)mm
|
|
||
|
Measuring Interval
|
|
|
||
|
With Reflector
|
Fine < 0.3s, Tracking <0.1s
|
|
||
|
Without Reflector
|
0.3s-3s*³
|
|
||
|
Others
|
|
|
||
|
Minimum Reading
|
0.1mm
|
|
||
|
Unit
|
Meter/ US.Feet/ Int.Feet/ Feet-inch
|
|
||
|
Angle Measurement
|
|
|
||
|
Accuracy
|
2”
|
5”
|
||
|
Reading System
|
Absolute Encoding
|
|
||
|
Circle Diameter
|
79mm
|
|
||
|
Minimum Increment
|
1”/5”
|
|
||
|
Detection Method
|
Horizontal: Dual, Vertical: Dual
|
|
||
|
Telescope
|
|
|
||
|
|
Erect
|
|
||
|
Tube Length
|
154mm
|
|
||
|
Effective Aperture
|
45mm (EDM:50MM)
|
|
||
|
Magnification
|
30x
|
|
||
|
Field of View
|
1°30’
|
|
||
|
Minimum Focus Distance
|
1.2m
|
|
||
|
Resolving Power
|
3”
|
|
||
|
Tilt Sensor
|
|
|
||
|
System
|
Dual Axis Liquid-Electric
|
|
||
|
Working Range
|
±4’
|
|
||
|
Accuracy
|
1”
|
|
||
|
Communications
|
|
|
||
|
Communication Ports
|
USB Port
|
|
||
|
Data Interface
|
USB Stick, Blue tooth
|
|
||
|
Effective Range of Blue tooth
|
10m
|
|
||
|
Plummet
|
|
|
||
|
Laser Plummet
|
±1.5mm at 1.5m
|
|
||
|
Optical Plummet (Optional)
|
Erect Image
|
|
||
|
Magnification
|
3 x
|
|
||
|
Focusing Range
|
0.5m~∞
|
|
||
|
Field of View
|
5°
|
|
||
|
Power
|
|
|
||
|
Type
|
Rechargeable Lithium battery
|
|
||
|
Voltage
|
7.4V DC, 3100mAH
|
|
||
|
Operating Time
|
10 Hours*⁴
|
|
||
|
Level Vials
|
|
|
||
|
Plate Vial
|
30”/2mm
|
|
||
|
Circular Vial
|
8’/2mm
|
|
||
|
Others
|
|
|
||
|
Dust and Water Protection
|
IP55
|
|
||
|
Display
|
Dual Side, LCD 6 Lines
|
|
||
|
Keyboard
|
Alphanumeric 24 Keys
|
|
||
|
Operating Temperature
|
-20℃ ~ +50℃
|
|
||
|
Atmosphere Correction
|
Manual Input, Auto Correction
|
|
||
|
Earth Curvature Correction
|
Manual Input, Auto Correction
|
|
||
|
Prism Constant
|
Manual Input, Auto Correction
|
|
||
|
Dimension
|
190mm x 195mm x 335mm
|
|
||
|
Weight (approx..)
|
5.5kg
|
|
||
