Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QOGRISYS
-
Supplier Type:
-
Factory
-
Type:
-

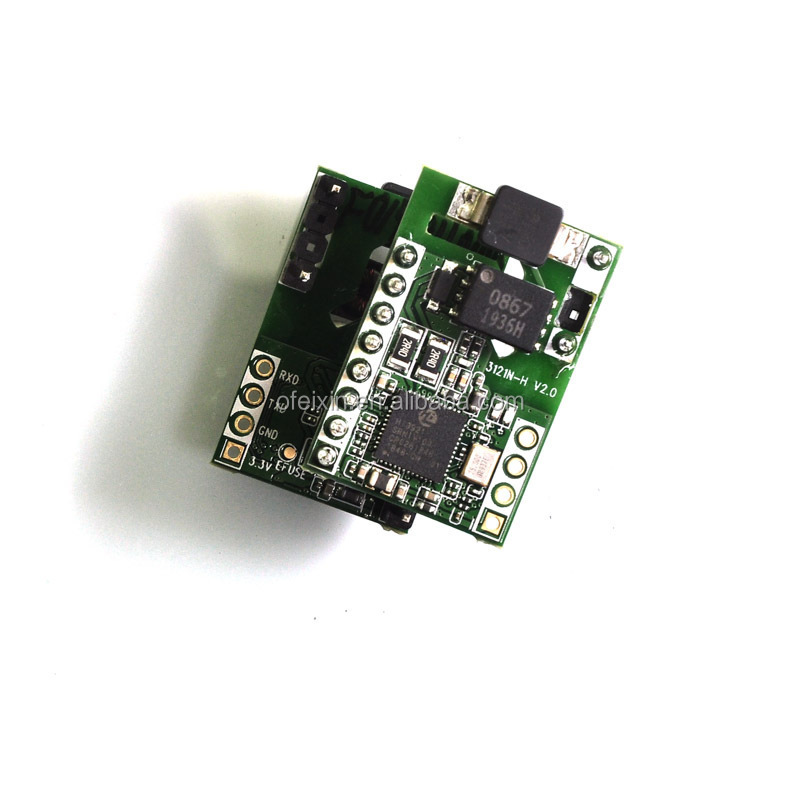

PLC IOT Module
-
Main Chipset:
-
Hi3921SV100
-
Interface:
-
UART/GPIO/PWM/ADC
-
WiFi Standard:
-
IEEE1901.1
-
Data Rates:
-
80Kbps
-
Certification:
-
RoHS,REACH
Quick Details
-
Chipset:
-
Hi3921SV100
-
Application:
-
Automatic Meter Reading
-
Model Number:
-
3121N-H
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QOGRISYS
-
Supplier Type:
-
Factory
-
Type:
-
PLC IOT Module
-
Main Chipset:
-
Hi3921SV100
-
Interface:
-
UART/GPIO/PWM/ADC
-
WiFi Standard:
-
IEEE1901.1
-
Data Rates:
-
80Kbps
-
Certification:
-
RoHS,REACH
Product Description
Advantage
1.Support IEEE1901.1
2.Peak rate of physical layer 0.507 mbit//s,application layer rate 80Kbps
3.Support 0.5-3.7m and 2.5-5.7m frequency bands, which can be configured by software
4.High performance cortex-m3 processor, working frequency 200MHz, embedded SRAM 256KB
5.Supports TDMA and CSMA/CA, providing collision avoidance mechanism capability
6.Ultra-low power consumption, static power consumption ≤ 0.15w, dynamic power ≤ 0.5w
7.Support whitelist recognition, hardware implementation of aes128/256 encryption and decryption algorithm, RSA signature
8.verification algorithm, HASH tamper-proof algorithm
9.LiteOS, an open operating system, provides an open, efficient and safe system development and operation environment. Flexible
10.protocol support and expansion capability
2.Peak rate of physical layer 0.507 mbit//s,application layer rate 80Kbps
3.Support 0.5-3.7m and 2.5-5.7m frequency bands, which can be configured by software
4.High performance cortex-m3 processor, working frequency 200MHz, embedded SRAM 256KB
5.Supports TDMA and CSMA/CA, providing collision avoidance mechanism capability
6.Ultra-low power consumption, static power consumption ≤ 0.15w, dynamic power ≤ 0.5w
7.Support whitelist recognition, hardware implementation of aes128/256 encryption and decryption algorithm, RSA signature
8.verification algorithm, HASH tamper-proof algorithm
9.LiteOS, an open operating system, provides an open, efficient and safe system development and operation environment. Flexible
10.protocol support and expansion capability
Use to:
Smart Lighting、Smart Home、Smart Parking、Central Air-Conditioning、the power of IOT terminal equipment and other PLC IM electronic products.
Detailed Parameters
|
Model No
|
3121N-H
|
Speed
|
80Kbps
|
|
RF Antenna
|
None
|
OS Supported
|
LiteOS
|
|
Operating Frequency
|
0.5-3.7MHz/2.5-5.7MHz
|
Operating Voltage
|
3.3V
|
|
Dimensions
|
L28.12 * W18.0 * T5.8mm
|
Storage Temperature
|
-40°C to 125°C
|
|
Operating Temperature
|
-40°C to 85°C
|
RF Chains
|
1T1R
|
Layout Recommendation
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
