Quick Details
-
Description:
-

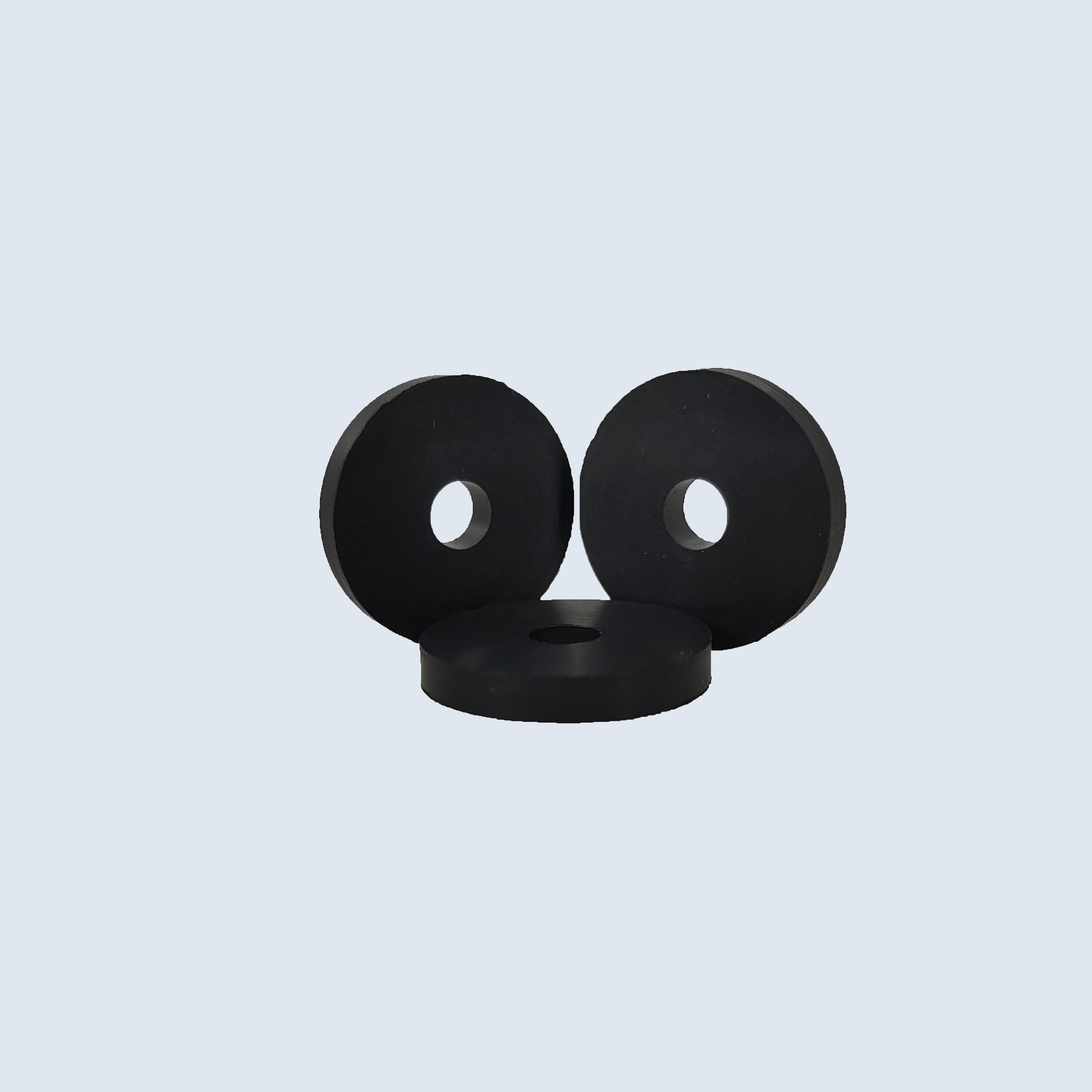

Rubber gasket
-
Compound material:
-
Meet ASTM D2000, can be ROSH, REACH compliance
-
Hardness:
-
From 20 ~ 90 shore A
-
Color:
-
As per request
-
Size:
-
Customize size
-
Package:
-
PE bag, Carton
-
Lead time:
-
8 days for sample, 12~18 days for mass production
-
Advantage:
-
Smooth surface with small parting line
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BS
-
Model Number:
-
gasket
-
Description:
-
Rubber gasket
-
Compound material:
-
Meet ASTM D2000, can be ROSH, REACH compliance
-
Hardness:
-
From 20 ~ 90 shore A
-
Color:
-
As per request
-
Size:
-
Customize size
-
Package:
-
PE bag, Carton
-
Lead time:
-
8 days for sample, 12~18 days for mass production
-
Advantage:
-
Smooth surface with small parting line
We are ISO factory
We have existing tools for below sizes. If they don't work for you, tell us your size.
We can OEM for you.
1
|
M3
|
3,3mm x 8mm x 1.5 mm
|
silicone 70 black + clear
|
2
|
M3
|
3,3mm x 16mm x 1.5 mm
|
silicone 70 black + clear
|
3
|
M4
|
4,3 mm x 9 mm x 1.5 mm
|
silicone 70 black + clear
|
4
|
M4
|
4,3 mm x 18 mm x 1.5 mm
|
silicone 70 black + clear
|
5
|
M5
|
5,3 mm x 10 mm x 2.0 mm
|
silicone 70 black + clear
|
6
|
M5
|
5,3 mm x 20 mm x 2.0 mm
|
silicone 70 black + clear
|
7
|
M6
|
6,4 mm x 13 mm x 2.0 mm
|
silicone 70 black + clear
|
8
|
M6
|
6,4 mm x 30 mm x 2.0 mm
|
silicone 70 black + clear
|
9
|
M8
|
8,4 mm x 16 mm x 2.0 mm
|
silicone 70 black + clear
|
10
|
M8
|
8,4 mm x 40 mm x 2.0 mm
|
silicone 70 black + clear
|
11
|
M10
|
10,5 mm x 20 mm x 2,5 mm
|
silicone 70 black + clear
|
12
|
M10
|
10,5 mm x 40 mm x 2,5 mm
|
silicone 70 black + clear
|
13
|
M12
|
12,5 mm x 25 mm x 2,5 mm
|
silicone 70 black + clear
|
14
|
M12
|
12,5 mm x 50 mm x 2,5 mm
|
silicone 70 black + clear
|
20
|
#2 Rubber disk A
|
8.5 mm x 15 mm x 5 mm
|
Silicone 50 Yellow
|
21
|
#3 Rubber disk B
|
8.5 mm x 15 mm x 3 mm
|
Silicone 70 Black
|
22
|
EPDM gasket
|
12,5 mm x 20 mm x1,5 mm
|
EPDM 70 Black
|
23
|
EPDM gasket
|
12,5mm x 20 mm x 1,5 mm
|
EPDM 70 Black
|
24
|
CR gasket
|
3.96 mm x 11.1 mm x 1.58 mm
|
Neoprene 45-65 Black
|
25
|
SCT-OR1
|
8.2 mm x 10.1 mm x 1.2 mm
|
silicone 70
|
26
|
CR-EX1
|
9.4 mm x 11.5 mm x 1.15 mm
|
silicone 60
|
27
|
CR-IN1
|
8.6 mmX12.5 mmX1.2 mm
|
silicone 60
|
28
|
Cutimze size
|
5 mm x 20 mm x 3 mm
|
silicone 60
|
29
|
Inch size 1#
|
.187x.125x.500"
|
EPDM 60 black
|
30
|
Inch size 2#
|
.187x .187 x .500"
|
EPDM 60 black
|
31
|
Inch size 3#
|
.187x .250 x .500 "
|
EPDM 60 black
|
32
|
Inch size 4#
|
.450x .220 x .375"
|
EPDM 75 black
|
33
|
Inch size 5#
|
.450x .220 x .500"
|
EPDM 75 black
|
34
|
Inch size 6#
|
.450x .220 x .625"
|
EPDM 75 black
|
35
|
Inch size 7#
|
.550 x 1.0x.125
|
FKM 70 black
|
36
|
AS006
|
1/16" X1/8"X1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
37
|
AS010
|
1/16"X1/4"X3/8‘
|
Buna-N / Silicone / EPDM 75 BLACK
|
38
|
AS012
|
1/16"X3/8"X1/2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
39
|
AS014
|
1/16"X1/2"X5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
40
|
AS019
|
1/16"X13/16"X15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
41
|
AS024
|
1/16"X1-1/8"X1-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
42
|
AS027
|
1/16"X1-5/16"X1-7/16
|
Buna-N / Silicone / EPDM 75 BLACK
|
43
|
AS028
|
1/16"X1-3/8"X1-1/2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
44
|
AS029
|
1/16"X1-1/2"X1-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
45
|
AS032
|
1/16"X1-7/8"X2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
46
|
AS111
|
3/32"X7/16"X5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
47
|
AS118
|
3/32"X3/4"X15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
48
|
AS126
|
3/32"X3/4"X15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
49
|
AS128
|
3/32"X1-1/2"X1-11/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
50
|
AS132
|
3/32"X1-3/4"X1-15/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
51
|
AS133
|
3/32"X1-13/16"X2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
52
|
AS134
|
3/32"X1-7/8"X2-1/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
53
|
AS135
|
3/32"X1-15/16"X2-1/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
54
|
AS136
|
3/32"X2"X2-3/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
55
|
AS137
|
3/32"X2-1/16"X2-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
56
|
AS138
|
3/32"X2-1/8"X2-5/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
57
|
AS139
|
3/32"X2-3/16"X2-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
58
|
AS210
|
1/8"X3/4"X1"
|
Buna-N / Silicone / EPDM 75 BLACK
|
59
|
AS219
|
1/8"X1-5/16"X1-9/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
60
|
AS220
|
1/8"X1-3/8"X1-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
61
|
AS221
|
1/8"X1-7/16"X1-11/16"
|
Buna-N / Silicone / EPDM 75 BLACK
|
62
|
AS222
|
1/8"X1-1/2"X1-3/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
63
|
AS225
|
1/8"X1-7/8"X2-1/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
64
|
AS227
|
1/8"X2-1/8"X2-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
65
|
AS229
|
1/8"X2-3/8"X2-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
66
|
AS230
|
1/8"X2-1/2"X2-3/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
67
|
AS231
|
1/8"X2-5/8"X2-7/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
68
|
AS232
|
1/8"X2-7/8"X3"
|
Buna-N / Silicone / EPDM 75 BLACK
|
69
|
AS234
|
1/8"X3"X3-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
70
|
AS235
|
1/8"X3-1/8"X3-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
71
|
AS237
|
1/8"X3-3/8"X3-5/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
72
|
AS240
|
1/8"X3-3/4"X4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
73
|
AS246
|
1/8"X4-1/2"X4-3/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
74
|
AS325
|
3/16"X1-1/2"X1-7/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
75
|
AS326
|
3/16"X1-5/8"X2"
|
Buna-N / Silicone / EPDM 75 BLACK
|
76
|
AS336
|
3/16"X2-7/8"X3-1/4"
|
Buna-N / Silicone / EPDM 75 BLACK
|
77
|
AS337
|
3/16"X3"X3-3/8"
|
Buna-N / Silicone / EPDM 75 BLACK
|
FAQ
Q 1. What's the payment term?
A: We accept T/T 50% deposit and 50% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q 2. What is the normal lead time for product orders?
A: Average lead times for prototype / first article are 7~10 days, if tooling is involved, lead time for production tooling is 10
days, average production time after sample approval is 2-3 weeks.
Q 3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q 4. Could you please tell us the month capacity of your products ?
A: It depends on which model, we produce more than 1500 tons rubber materials per month.
Q 5. what kind of certificates you have ?
A1: We have been ISO9001:2008 certified by SGS since 2019.
A2: We have various rubber compounds approved by NSF, KTW, W270, WRAS, ACS, AS4020, EN681, EN549, ROHS and REACH.
Q6: How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We provide quality certs such as measurement report, material data sheet, COO, COA, etc. to all customers before delivery.
A3: We accept third party inspection such as SGS, TUV, INTERTEK, BV, etc.
Q 7: How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your needs
while keeping material costs in mind.
Q 8: Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q 9:Can you supply different color materials?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in
case of an order.
Q10: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FKM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
A: We accept T/T 50% deposit and 50% balance against copy of B/L or L/C at sight, West Union,VISA,Paypal is also accepted.
Q 2. What is the normal lead time for product orders?
A: Average lead times for prototype / first article are 7~10 days, if tooling is involved, lead time for production tooling is 10
days, average production time after sample approval is 2-3 weeks.
Q 3. What is your standard packing?
A: All the goods will be packed by carton box and loaded with pallets. Special packing method can be accepted when needed.
Q 4. Could you please tell us the month capacity of your products ?
A: It depends on which model, we produce more than 1500 tons rubber materials per month.
Q 5. what kind of certificates you have ?
A1: We have been ISO9001:2008 certified by SGS since 2019.
A2: We have various rubber compounds approved by NSF, KTW, W270, WRAS, ACS, AS4020, EN681, EN549, ROHS and REACH.
Q6: How to check the quality of the bulk order?
A1: We provide preproduction samples before mass production for all customers if needed.
A2: We provide quality certs such as measurement report, material data sheet, COO, COA, etc. to all customers before delivery.
A3: We accept third party inspection such as SGS, TUV, INTERTEK, BV, etc.
Q 7: How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your needs
while keeping material costs in mind.
Q 8: Do you use any international standards for the rubber products?
A: Yes, we mainly use ASTM D2000 standard to define the quality of the rubber materials, tolerances as per ISO3302, ISO2768, etc.
Q 9:Can you supply different color materials?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors, the color code will be required in
case of an order.
Q10: What materials are available to produce from your side?
A: NBR, EPDM, SILICONE, FKM(FKM), NEOPRENE(CR), NR, IIR, SBR, ACM, AEM, Fluorosilicone(FVMQ), FFKM, Liquid Silicone, Sponge, etc.
