Quick Details
-
Size:
-
7880 x 2480 x 1520 mm
-
Place of Origin:
-
Guangdong, China
-
Name:
-
truck trailers
-
Axle:
-
13 ton Fuwa brand, 150x150, 2/3 units
-
Suspension:
-
Mechanical suspension
-
King pin:
-
2", bolt on type
-
Landing gear:
-
28 ton, two speeds
-
Tire:
-
11R22.5, 8/12 units
-
Rim:
-
8.25-22.5, 8/12 units
-
ABS:
-
None
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
30 tons
-
Brand Name:
-
STD
-
Size:
-
7880 x 2480 x 1520 mm
-
Place of Origin:
-
Guangdong, China
-
Name:
-
truck trailers
-
Axle:
-
13 ton Fuwa brand, 150x150, 2/3 units
-
Suspension:
-
Mechanical suspension
-
King pin:
-
2", bolt on type
-
Landing gear:
-
28 ton, two speeds
-
Tire:
-
11R22.5, 8/12 units
-
Rim:
-
8.25-22.5, 8/12 units
-
ABS:
-
None
SPECIFICATION
|
Specification
|
|
|
|
1. Dimension
|
7880 x 2480 x 1520 mm
|
|
|
2. Tare weight
|
4000 kg
|
|
|
3. Payload
|
30 tons
|
|
|
4. Twist lock
|
4 units
|
|
|
5. Function
|
Load 1x20' container
|
|
|
Standard Configuration
|
|
|
|
1. Axle
|
13 ton Fuwa brand, 150x150, 2/3 units
|
|
|
2. Suspension
|
Mechanical suspension
|
|
|
3. King pin
|
2", bolt on type
|
|
|
4. Landing gear
|
28 ton, two speeds
|
|
|
5. Tire
|
11R22.5, 8/12 units
|
|
|
6. Rim
|
8.25-22.5, 8/12 units
|
|
|
7. Braking system
|
Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle,
30 single chambers on other axles
|
|
|
8. Electrical system
|
Dual circuit, 7-way split pin receptacle plug, LED light
|
|
|
9. ABS
|
None
|
|
|
10. Painting
|
Blasting sand before painting, one coat primer and two coat finish painting,
colour supplied by customer
|
|
|
11. Mudguard
|
Plastic or steel
|
|
|
12. Others
|
1 tool box, 1 wheel carrier, excluding spare wheel
|
|
|
Optional Configurations
|
|
|
|
1. Air suspension
|
Firestone, Goodyear or Chinese brand
|
|
|
2. Lift axle system
|
Lift axle system
|
|
|
3. ABS system
|
Wabco or Chinese brand
|
|
|
4. Axle
|
BPW 12 ton
|
|

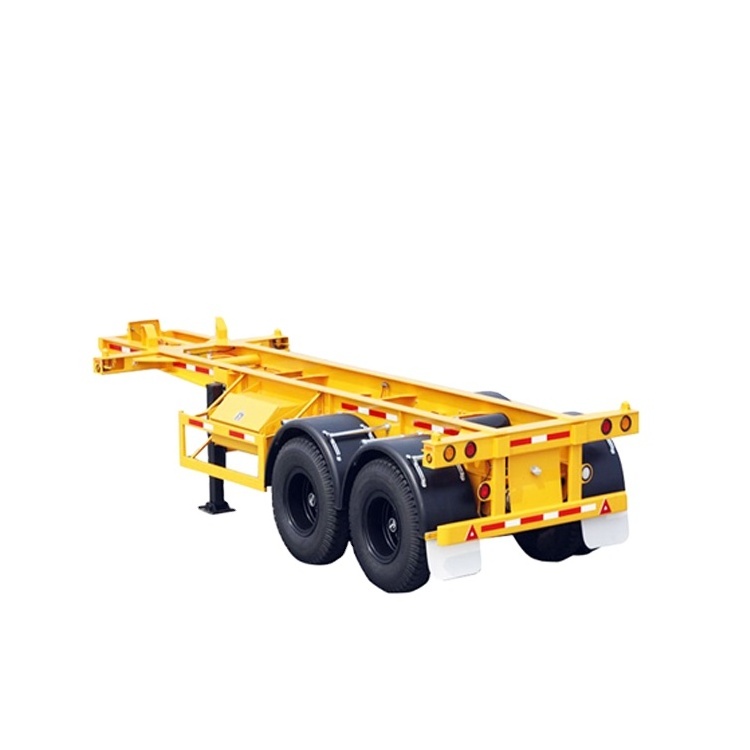

PRODUCT PICTURE
