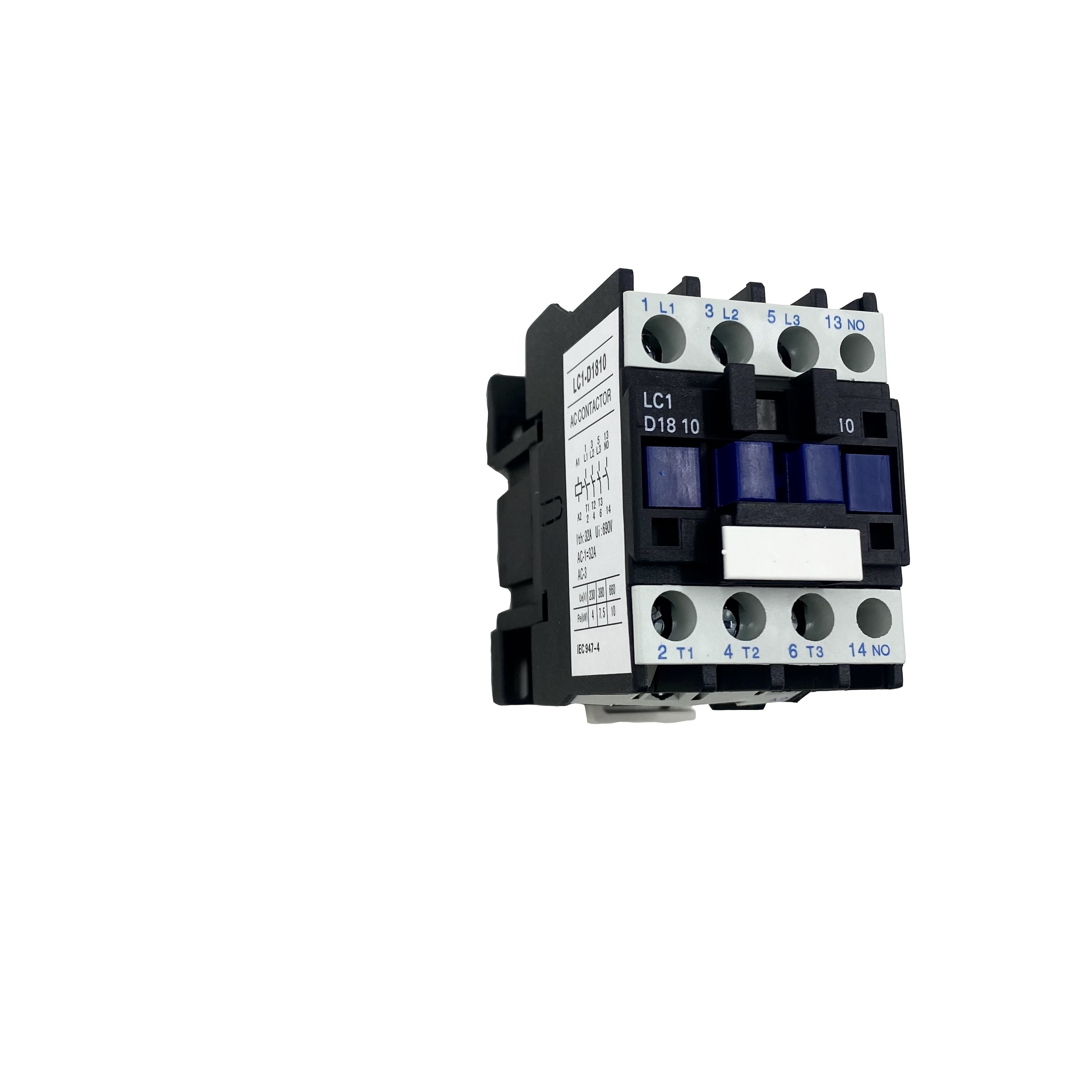

LC1D18 CJ2X 3phase 9A 12A 18A 25A 32A 40A telemecanique magnetic contactor

LC1D18 CJ2X 3phase 9A 12A 18A 25A 32A 40A telemecanique magnetic contactor

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Main Circuit Rating Voltage:: 220V/230V/380V/400V/415V/500V/660V/690V

Main Circuit Rating Current:: 9-95A

Place of Origin:: China

Brand Name:: CEE

Model Number:: LC1-D18

Quick Details

Electricity Type:: AC

Number of Pole:: 3

Phase:: 3

Main Circuit Rating Voltage:: 220V/230V/380V/400V/415V/500V/660V/690V

Main Circuit Rating Current:: 9-95A

Place of Origin:: China

Brand Name:: CEE

Model Number:: LC1-D18

LC1-D AC CONTACTOR, 9-95A

1. APPLICATION

Electromagnetic contactors, series LC1, are switching devices intended for remote start, shutdown and reversing of three-phase asynchronous motors with short-circuit rotor in AC network with frequency of 50/60 Hz and voltage of 660 V (utilization category AC-3) and for remote control of electric circuits with making current equal to rated load current (utilization category AC-1).
Jointly with thermal relays the contactors protect controlled electric motors from overloads of inadmissible duration and currents arising during loss of a phase.

2. SPEFICATION

Parameters					LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Rated conventional heating current (A) AC-1					25	25	32	40	50
Rated operational current (A)	400(380)V	AC-3	9	12	18	25	32
	400(380)V			AC-4	3.5	5	7.7	8.5	12
		690(660)V	AC-3	6.6	8.9	12	18	21
		690(660)V		AC-4	1.5	2	3.8	4.4	7.5
Rated insulation voltage (V AC)					690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	230(220)V AC	2.2	3	4	5.5	7.5
				400(380)V AC	4	5.5	7.5	11	15
				690(660)V AC	5.5	7.5	10	15	18.5
		hp	200 V AC	3	5	7.5	7.5	10
				240 V AC	3	5	7.5	10	15
				460 V AC	5	7.5	10	15	20
				600 V AC	5	7.5	10	115	20
Operating frequency (operations/h)	Electrical	AC-3	1200	1200	1200	1200	600
			AC-4	300	300	300	300	300
		Mechanical		3600	3600	3600	3600	3600
Electrical life (x10³ operations)	AC-3		1000	1000	1000	1000	800
Electrical life (x10³ operations)		AC-4		200	200	200	200	200
Mechanical life (x106operations)					10	10	10	10	8
Number of contacts					3P+NO/3P+NC

Parameters					LC1-D4011	LC1-D5011	LC1-D6511	LC1-D8011	LC1-D9511
Rated conventional heating current (A) AC-1					60	80	80	110	110
Rated operational current (A)	400(380)V	AC-3	40	50	65	80	95
	400(380)V			AC-4	18.5	24	28	37	44
		690(660)V	AC-3	34	39	42	49	49
		690(660)V		AC-4	9	12	14	17.3	21.3
Rated insulation voltage (V AC)					690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	230(220)V AC	11	15	18.5	22	25
				400(380)V AC	18.5	22	30	37	45
				690(660)V AC	30	37	37	45	45
		hp	200 V AC	15	20	20	25	30
				240 V AC	20	25	25	30	30
				460 V AC	25	40	40	40	50
				600 V AC	25	40	40	40	50
Operating frequency (operations/h)	Electrical	AC-3	600	600	600	600	600
			AC-4	300	300	300	300	300
		Mechanical		3600	3600	3600	3600	3600
Electrical life (x10³ operations)	AC-3		800	600	600	600	600
Electrical life (x10³ operations)		AC-4		150	150	150	100	100
Mechanical life (x106operations)					8	8	8	6	6
Number of contacts					3P+NO+NC

AUXILIARY PRODUCTS

The company design, manufacturer a nd market standardised indu strial plugs and sockets acc. to IEC 60 309-1-2 , EN 60 309-1-2 for the global market .

A great number o f products are certified by Intertek & TUV Rheinland & CQC .

The company hold various Third Party Certifications including TUV, SEMKO, CE, CB, EAC, CCC and meet applicable regulations such as Ro HS and REACH .

COMPANY

CEE

Zhejiang CEE Electric is a specialized manufacturer of industrial plugs & sockets and distribution boxes for industrial applications. CEE also manufactures AC c ontactors and thermal overload relays.

A great number o f products are certified by Intertek & TUV Rheinland & CQC. The company hold various Third Party Certifications including TUV, SEMKO, CE, CB, EAC, CCC and meet applicable regulations such as Ro HS and REACH.

We are exporting to Europe, Africa, Russia, Australia, Southeast Asia and many other countries and regions.

Office

Show Room

Labortory

Injection Workshop

Thousands of Moulds

Assembling Workshop

Riveting Machines

Semi-Finished Warehouse

Finished Products Warehouse

Canton Fair

We sincerely invite you to visit our booth. We will be there every year.Looking forward to your esteemed presence!

HALL 10.3 BOOTH L35
DATE: APRIL 15-19TH
OCT. 15-19TH

Q: Are you a manufacturer or trading company ?

A: We are a leading manufacturer of QUALITY industrial plugs and sockets with more than 20 years experience.

Q. Do you have any MOQ for trial order?

A: No MOQ requirement.

Q: What's your terms of payment?

A: 30% T/T, Credit Card or E-checking in advance, balance against copy of BOL.

Q: Can you customize my products or put my logo on your products?

A: Y es , we offer OEM and ODM services. Please inform us formally before production.

Q: What's the lead time ?

A: Usually, sample orders takes 2-3 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.

Q: What about the shipping methods?

A: For small or urgent orders, door-to door courier delivery like DHL, UPS, FedEx or TNT is recommended; for large orders, sea or air transportation is recommended.
