China Flexible Adhesive Layer Anaerobic Gasket Maker 515 510 518 Glue Anaerobic Flange Sealant

China Flexible Adhesive Layer Anaerobic Gasket Maker 515 510 518 Glue Anaerobic Flange Sealant

FOB Reference Price: Get Latest Price

≥500 Pieces

US $1.68

≥5000 Pieces

US $1.54

≥10000 Pieces

US $1.39

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

EINECS No.:: 202-415-4

Place of Origin:: Jiangxi, China

Brand Name:: HiGlue

Model Number:: 518

Type:: Pink Flange Sealant

Material:: Anaerobic Flange Sealant

Max. FIlling Gap:: 0.25mm

Viscosity:: 500,000~1000,,000mpa.s

Primer:: 7471/7649

Full Cure Time:: 24H

Package size:: 50ml, 250ml, 1kg, 17kg

MOQ:: 100pcs

Shelf life:: 3 Years

Packing:: Tube and Bucket

OEM:: Yes

Quick Details

CAS No.:: 9003-01-4

Other Names:: Rigid Assembly Gasket Maker

MF:: C3H402

EINECS No.:: 202-415-4

Place of Origin:: Jiangxi, China

Brand Name:: HiGlue

Model Number:: 518

Type:: Pink Flange Sealant

Material:: Anaerobic Flange Sealant

Max. FIlling Gap:: 0.25mm

Viscosity:: 500,000~1000,,000mpa.s

Primer:: 7471/7649

Full Cure Time:: 24H

Package size:: 50ml, 250ml, 1kg, 17kg

MOQ:: 100pcs

Shelf life:: 3 Years

Packing:: Tube and Bucket

OEM:: Yes

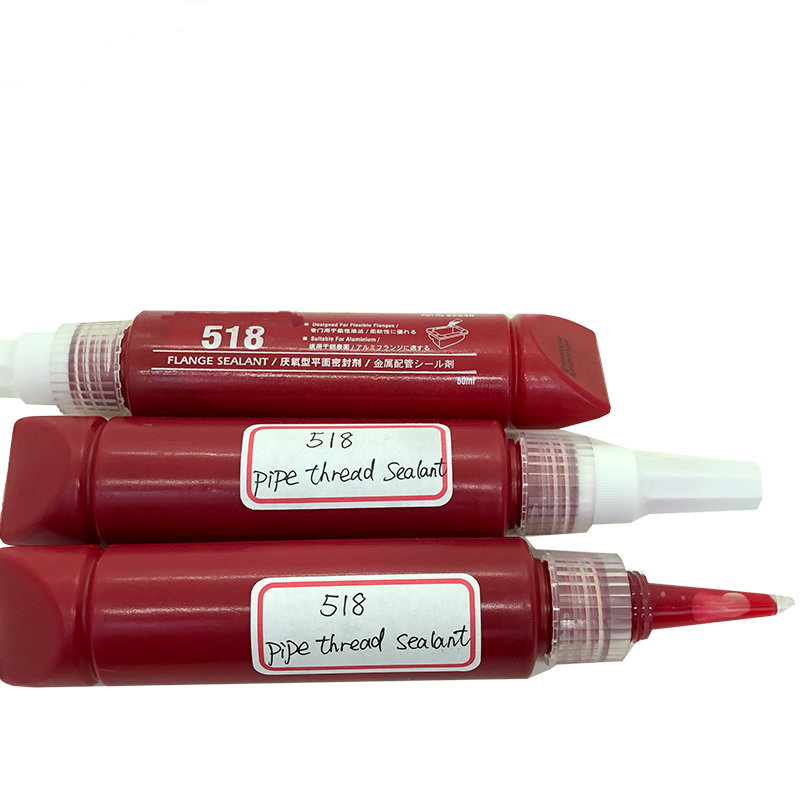

HiGlue 518 Flange Sealant

Flexible Adhesive Layer Anaerobic Gasket Maker 515 510 518 Glue Anaerobic Flange Sealant

Lock Tight Equivalent Glue 50g 300g 17kg

518 flange sealant is a medium-strength, general purpose gasketing product with excellent contamination tolerance. Ideal for use on casted iron, steel and aluminium flanges.

518 sealant cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flange mating surfaces.

Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flange connections, e.g. transmissions and motor housings. Semi-flexible, medium-strength anaerobic flange gasket.

■ Easy to automate ■ Reduces process costs – eliminates manual assembly of conventional gaskets ■ For active and inactive rigid metal flanges ■ Cures through minor surface contamination ■ Adapts to flange surface irregularities and gaps up to 0.25 mm ■ Gel-type consistency ■ Seals instantly against low pressure ■ Reduces inventory costs – no need for large inventory of cut gaskets ■ Resists high pressure when fully cured ■ No compression set or misaligned gaskets

Technical Information

Chemical Compound Dimethacrylateester
Color Red gel-likematerial
Curing Method Anaerobic
Full Cure Time @ Temp. 24 H @ 77°f
Gap Fill [Max] 0.25mm
Odor/Scent Mild
Packing Type Tube/ Bucket
Physical Form Paste
Resistance Acetone Brake Fluid; Ethanol; Motor Oil; Unleaded Gasoline
Viscosity 500,000/1000,000 mPa.s

Shear Strength(psi) 1100

Temp. Range -65 °f~+300°f

Relate products

HiGlue 510 515 518 574 Anaerobic Flange Sealant

HiGlue anaerobic flange sealant seal flat mating surfaces and join flanges om pumps, gearboxes and different housings of any shape and dimension in an easy and effective way directly from the tube or the cartridge both vertically and horizontally.

BENEFITS:

• Prevent leakage on aging.

• One adhesive replaces many pre-cut gasket shapes.

• Guarantee the parts sealing and enhance hydraulic tightness.

• Do not generate any thickness.

• Highly resistant against temperature, pressure, oils and chemicals.

• Prevent oxidation and fretting corrosion.

Model	Specification	Color	Characteristic	Cure Time(@ 25°C)	Viscosity(mPa.s)
510	50ml 300ml	pink	high temperature resistance	72 hr	200000/750000
515	50ml 300ml	purple	general use	24 hr	150000/375000
518	50ml 300ml	red	aluminium surface seal	24 hr	500000/1000000
574	50ml 300ml	Orange	fast cure	12 hr	20000/40000

510 anaerobic flange sealant is a high temperature(+204°C) and chemical resistant gasket product that is ideal for use on rigid flanges. It cures when confined in the absence of air between close-fitting metal surfaces.

● Typical applications include sealing rigid flange faces on transmissions and motor casings. ● It ensures an instant, low-pressure seal. The product increases the torque capacity of assembled flanges. ● Solvent resistance, excellent chemical resistance.

515 anaerobic flange sealant is a medium strength (6 N/mm² tensile shear strength), medium cure speed, methacrylate-based industrial gasketing product designed for machined, rigid metal flanges. The product, which cures anaerobically, is suitable for gaps up to 0.25 mm. It is used typically as a form-in-place product for pumps, thermostats, compressors, transmission housings and axle covers.

518 anaerobic flange sealant cures when confined in the absence of air between close-fitting metal surfaces. It is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. It fills gaps up to 0.25mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service. Typical applications include sealing close-fitting joints between rigid metal faces and flanges. It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.

■ Semi-flexible, medium-strength anaerobic flange gasket ■ Easy to automate ■ Reduces process costs – eliminates manual assembly of conventional gaskets

574 anaerobic flange sealant seals close-fitting joints between rigid metal faces and flanges. The product cures when confined in the absence of air between close-fitting metal surfaces. It provides resistance to low pressures immediately after assembly. Typically used as a form-in-place gasket on rigid flanged connections. The nature HiGlue 574 reduces the migration of liquid product after application to the substrate. It has a high oil tolerance and excellent water and glycol resistance. ■ Ideal for use on rigid metal parts, e.g. cast iron components and pump housings ■ High oil resistance ■ Excellent water and glycol resistance

Factory Show

Jiangxi Gooz Adhesive Co., Ltd

We are an innovative enterprise based on research and development, production and marketing. Over 20 years experience helps us take a leading position in adhesive filed. We supply good and stable quality glue for clients all over the world. Now we have a various business network over Middle East, Europe, America, Southeast Asia and our own mainland. And won great reputation among them. We cherish our long term cooperation relationship with old clients, and also looking forward to develop more businesses with new clients.

Products:

1. HiGlue liquid thread locker: 222 242 243 262 270 271 272 277 290
2. HiGlue pipe thread sealant: 545 554 565 567 569 577 542 561 L55
3. HiGlue instant super glue: 401 403 406 407 410 411 412 414 415 454 495 496
4. HiGlue flange/plane sealant: 510 515 518 574
5. HiGlue silicone rubber: 587 593 594 595 596 598 5020 5699 5900 5910 5920
6. HiGlue retaining compound: 601 603 609 620 638 641 648 660 680
7. HiGlue Surface Treatment: 7075 7452 7649 7387 7471 770 754 790
8. HiGlue Metal Epoxy Putty: 111 112 113 114
9. HiGlue Epoxy Tile Grout And Epoxy Anchor
