Quick Details
-
Brand Name:
-
DUSUN
-
Product name:
-

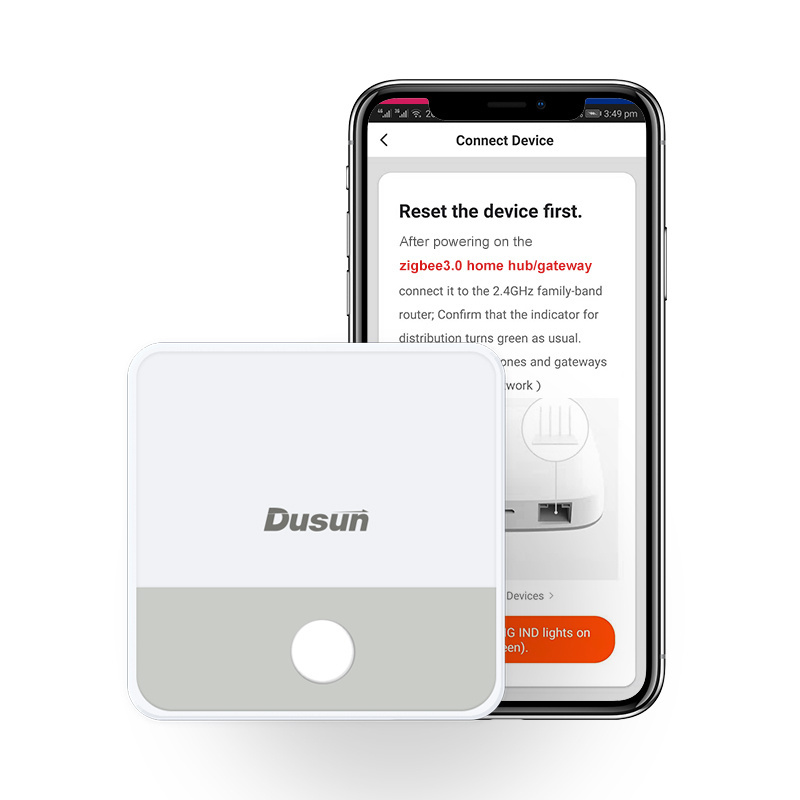

programmable zigbee 3.0 gateway hub for iot solution provider
-
Working Temperature:
-
5~60℃
-
Power Supply:
-
USB Port (5V/1A)
-
Wireless Protocol:
-
Wi-Fi, Zigbee3.0
-
CPU:
-
MTK7620A
-
System:
-
OpenWrt
-
Access Devices:
-
Up to 100
-
Indicator LED:
-
Three ( Green ;Yellow; Red )
-
Wireless Distance:
-
Wi-Fi>50m; Zigbee>100m ; Bluetooth > 20m
Quick Details
-
Application:
-
Smart Home
-
Model Number:
-
DSGW-030
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DUSUN
-
Product name:
-
programmable zigbee 3.0 gateway hub for iot solution provider
-
Working Temperature:
-
5~60℃
-
Power Supply:
-
USB Port (5V/1A)
-
Wireless Protocol:
-
Wi-Fi, Zigbee3.0
-
CPU:
-
MTK7620A
-
System:
-
OpenWrt
-
Access Devices:
-
Up to 100
-
Indicator LED:
-
Three ( Green ;Yellow; Red )
-
Wireless Distance:
-
Wi-Fi>50m; Zigbee>100m ; Bluetooth > 20m
Integration Steps
| Integration Developer Zone | |||
| NO. | Title | Summary | Link |
| 1 |
How to Connect an IoT Gateway to MQTT Server? |
MQTT is a machine-to-machine (M2M)/"Internet of Things" connectivity protocol. It was designed as an extremely lightweight publish/subscribe messaging transport. Dusun gateway supports MQTT protocol to connect to cloud platform. |
|
| 2 |
How to Change Dusun’s IoT Gateway into A LwM2M Client? |
Gateways communicate with sensors/devices over varying connectivity types. Dusun smart gateways are Linux based and programmable. Then Dusun’s gateway can use any standard protocols to transfer data into Cloud. |
|
| 3 |
Developing An Application Communicating with ZigBee Devices on Dusun’s Gateways |
An IoT gateway aggregates sensor data, translates between sensor protocols, processes sensor data before sending it onward and more. The Dusun gateways supports most connectivity protocols including ZigBee 1.2/3.0, TCP/UDP. |
https://www.dusuniot.com/develop-application-ondusun-gateway |
| 4 |
The video of How to Set u p M QTT -apache-Apollo server for Dusun’s gateway |
Details video full version | |
| 5 |
View code samples on our GitHub |
Dusun provides code samples and APIs for connecting Z-wave/Zigbee/BLE devices. Users revise little code to support their own IoT wireless devices. | https://github.com/dusuniot |
| Iot solution of main customer | ||||
| NO. | Customer Logo | Application | Summary | Link |
| 1 |
|
home rental and property management | ZIROOM is a rental services company provides home rental and property management services. ZIROOM rents rooms deployed smart room systems which include many cool features such as smart lock, smart electricity meters and water meters, etc. | https://www.dusuniot.com/dusun-partner-ziroom |
| 2 |
|
AAL & Healthcare Management | Collecting data from the elderly's environment and his/her habits and making them available in a structured way to third parties for analysis, is the first step towards the realization of innovative user-centric services. IoT technological advancements lead to smart objects being capable of identifying, locating, sensing and connecting and thus leading to new forms of communication between people and things and things themselves. | https://www.dusuniot.com/china-mobile-iot |
| more solution scenarios, please contact us! | ||||
|
Why Dusun Products |
|
IoT gateways sit at the intersection of Iot systems -connected devices, controllers and sensors - and the cloud. It plays a key role in the smart home system. Dusun’s IoT gateways has the following advantage: |
|
1. Great Zigbee 3.0 performance. A ZigBee 3.0 certification scheme ensures the interoperability of products from different manufacturers. Dusun’s ZigBee 3.0 Gateways run very stable and have great performance. |
|
2. Great Scalability and flexibility. Dusun smart gateways are programmable which means they support extended or secondary development. Dusun provides SDKs and APIs which can be used to let customers make their programs to control the data transfer procedure and use their security mechanism. The programmable ability lets ZIROOM embed Dusun’s gateway easily. Dusun provides chip-level technical support for their application. |
|
3. High quality. Dusun has great design team and product manufacturing team. Dusun designs and manufactures the gateways with high quality all by their own. |
General Gateway Block Diagram
The brands of smart devices can connect to our gateway(tested)
Private zigbee profile Integration
If you encounter a private zigbee profile, if you tell us the agreement, we can help you pay for the docking
Specifications
| Protocols | Wi-Fi, Zigbee3.0 |
| Access Devices | Up to 100 |
| System | OpenWrt |
| CPU | MTK7620A |
| Wireless Distance | Wi-Fi>50m; Zigbee>100m ; Bluetooth > 20m |
| Power Supply | USB Port (5V/1A) |
| Working Humidity | ≤95%RH,Non-Condensing |
| Working Temperature | -5~60℃ |
| Product Size | 70*70*22(mm) |
|
Pairing Key
|
1 |
| Indicator LED | Three ( Green ;Yellow; Red ) |
Outside drawing
Accessories
Plugs are not included in the accessories,please tell us which country is the standard plug and place a separate order.
