Product name:: CNC Tool Holder

Type:: Disc tool magazine

Model:: BT30 BT40 BT50 HSK63 HSK100

Applicaion:: Milling Cutter, CNC Machine, machining center

Feature:: Exchange Tool Quickly

Tool change time:: 2s

Tool Capacity:: 16T/24T/32T/30T/40T/48T/60T/120T

Max. Tool Diameter:: 75/150/125/240

MOQ:: 1pcs

Package:: Plastic Box

Quick Details

Place of Origin:: Jiangsu, China

Weight (KG):: 8

Brand Name:: Relib

Product name:: CNC Tool Holder

Type:: Disc tool magazine

Model:: BT30 BT40 BT50 HSK63 HSK100

Applicaion:: Milling Cutter, CNC Machine, machining center

Feature:: Exchange Tool Quickly

Tool change time:: 2s

Tool Capacity:: 16T/24T/32T/30T/40T/48T/60T/120T

Max. Tool Diameter:: 75/150/125/240

MOQ:: 1pcs

Package:: Plastic Box

Products Description

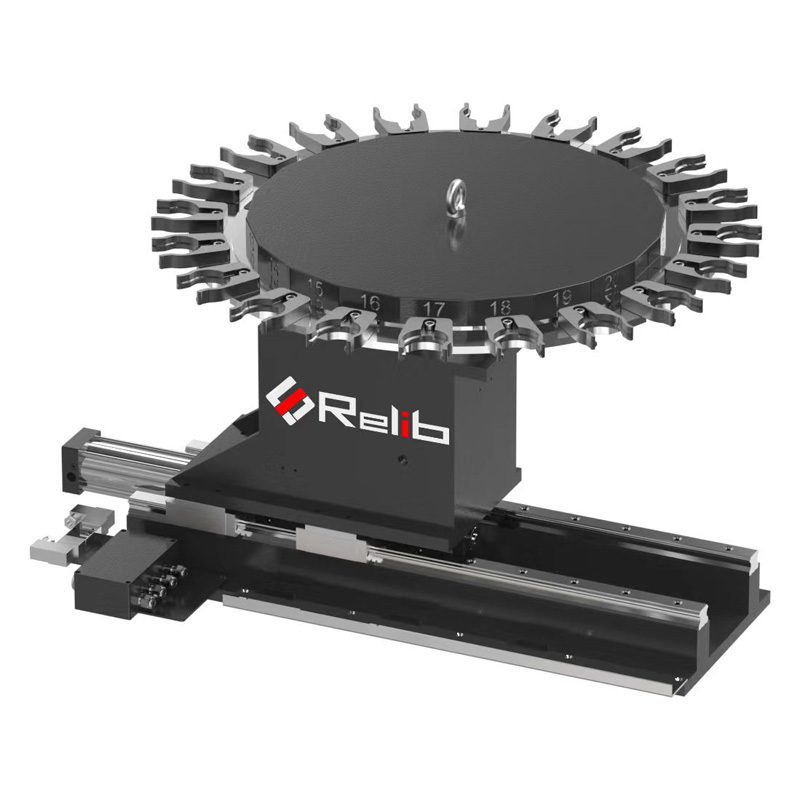

Engraving machine tool magazine automatic tool change carpentry spindle cutter CNC machining spindle tool holder knife holder

The overall structure of the tool magazine is rigid and can bear rapid tool change and larger tool impact.

Feature:

1. All imported engineering plastic knife sets are light in weight, high in strength and not easy to damage.

2. Lightweight aluminum alloy cutter head, high cutting precision and long service life.

3. Independent knife arm, high concentricity, low noise, electronic switch, the whole series adopts imported original parts, and the quality is absolutely guaranteed.

Advantage:

1. Tool room bearings are imported bearings with high wear resistance and long service life.

2. The gear mechanism adopts German standard high-strength helical gear, which has the advantages of high precision, low sound, stable transmission and good wear resistance.

3. Independent fixture adjustment, convenient and simple, saving assembly time.

Product Paramenters

Tool spec	BT40/CAT40/DIN40/HSK63	BT50/CAT50/DIN50/HSK100
Tool Capacity	16T/24T/32T	16T/24T/30T
Pocket Pitch(mm)	80	110
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	75/150	110/200
Max. Tool Weight(kg)	8	15
Tool Change Time(sec/50Hz)	1.1-2.9	2.91-8.28
Magazine Speed(sec/tool)	0.75	0.75
Tool Change Selection	Roller Gear Cam	Roller Gear Cam

Tool spec	BT40/CAT40/DIN40/HSK63	BT50/CAT50/DIN50/HSK100
Tool Capacity	16T/24T/32T	24T/30T/32T/40T
Pocket Pitch(mm)	80	127
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	70/150	125/240
Max. Tool Weight(kg)	8	15
Tool Change Time(sec/50Hz)	1.1-2.9	2.91-8.28
Magazine Speed(sec/tool)	0.75	0.75
Tool Change Selection	Roller Gear Cam	Roller Gear Cam

Tool spec	BT40/CAT40/DIN40/HSK63	BT50/CAT50/DIN50/HSK100
Tool Capacity	48T/60T	24T/32T/40T/60T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	75/127	125/250
Max. Tool Weight(kg)	8	15
Tool Change Time(sec/50Hz)	1.1-2.9	2.91-8.28
Magazine Speed(sec/tool)	0.5	0.78
Tool Management Mode	Random	Random
Tool Change Selection	Roller Gear Cam	Roller Gear Cam

Tool spec	BT40/CAT40/DIN40/ HSK63	BT50/CAT50/DIN50/ HSK100
Tool Capacity	40T/48T/60T	40T/60T/120T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	75/127	125/250
Max. Tool Weight(kg)	8	25
Tool Change Time(sec/50Hz)	3(ATC)	3(ATC)
Magazine Speed(sec/tool)	0.65	0.85
Tool Management Mode	Random	Random
Tool Change Selection	Hydraulic Rock and Gear Machanism	Hydraulic Rock and Gear Machanism

Tool spec	BT50/CAT50/DIN50/HSK100
Tool Capacity	40T/60T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	125/250
Max. Tool Weight(kg)	25
Tool Change Time(sec/50Hz)	3(ATC)
Magazine Speed(sec/tool)	0.85
Tool Management Mode	Random
Tool Change Selection	Hydraulic Rock and Gear Machanism

Tool spec	BT50/CAT50/DIN50/HSK100
Tool Capacity	40T/60T/120T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	125/250
Max. Tool Weight(kg)	25
Tool Change Time(sec/50Hz)	3(ATC)
Magazine Speed(sec/tool)	0.3
Tool Management Mode	Random
Tool Change Selection	Hydraulic Rock and Gear Machanism

Tool spec	BT40/CAT40/DIN40/HSK63	BT50/CAT50/DIN50/ HSK100
Tool Capacity	24T/32T	24T/32T/40T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	75/150	125/250
Max. Tool Weight(kg)	8	25
Tool Change Time(sec/50Hz)	3(ATC)	3(ATC)
Magazine Speed(sec/tool)	0.75	1
Tool Management Mode	Random	Random
Tool Change Selection	Hydraulic Rock and Gear Machanism	Hydraulic Rock and Gear Machanism

Tool spec	BT30/CAT30/DIN30/ HSK40	BT40/CAT40/DIN40/ HSK63	BT40/CAT40/DIN40/ HSK63
Tool Capacity	8T/10T/12T/16T/20T/24T	8T/10T/12T/16T/20T/24T	8T/16T/20T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	100/180	100/200	140/280
Max. Tool Weight(kg)	5	8	15
Tool Selection Time	0.4s	0.5s	0.8s

Tool spec	BT40/CAT40/DIN40/HSK63
Tool Capacity	40T/60T
Max. Tool Diameter With Adjacent Pocket Full/Empty(mm)	75/150
Max. Tool Weight(kg)	8
Tool Change Time(sec/50Hz)	1.3
Magazine Speed(sec/tool)	0.25
Tool Management Mode	Random
Tool Change Selection	Roller Gear Cam
