Multiwire Drawing Machine With Continuous Annealer ( 8/10/14/16/24wires )
Feature:
- Ø Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive;
- Ø The capstan and die lubrication system is in emulsion spraying with force from inside of die
- holders design; In this way, the lubrication is more sufficient and it save space, moreover,
- it makes operation more convenient;
- Ø Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a
- longer service life;
- Ø The annealer control system is in zero length preset voltage design, so that it can ensure
- stable annealing of wires in the process of machine start and stop;
- Ø A special mechanism is designed to meet requirements of drawing bare copper wires, tinned
- copper wires and silver plated copper wires.
-------------------------------------------------------------
Technical specification:
|
Machine type |
HT-MD150 |
HT-MD120 |
HT-MD100 |
HT-MD100 |
|
Material |
Cu |
|||
|
Machine speed |
Max.1800m/min |
|||
|
No.of wires |
2/4 |
8/16 |
8/16 |
8/16 |
|
Inlet dia. |
1.60-2.00mm |
2.60mm |
1.60-2.00mm |
2.60mm |
|
Finished dia. |
0.15-0.60mm |
0.20-1.35mm |
0.15-0.50mm |
0.15-0.50mm |
|
No.of dies |
21/25 |
22/25 |
22/25 |
31 |
|
Drawing capstan dia. |
150mm |
120mm |
100mm |
100mm |
|
Finished capstan dia. |
150mm |
120mm |
100mm |
100mm |
|
Dies change system |
Fast dies change design for 3dies |
|||
|
Control method |
DC/AC |
|||
|
Drive method |
Two motors |
|||
Continuous Annealer:
|
Machine type |
MT1000 |
MT2000 |
MT2500 |
MT4500 |
MT7000 |
|
Material |
Cu |
||||
|
Machine speed |
Max. 1800m/min |
||||
|
No. of wires |
2/4 |
8 |
16 |
8/16 |
8/16 |
|
Wires range |
0.15-0.60mm |
0.15-0.50mm |
0.15-0.40mm |
0.20-1.05mm |
0.20-1.35mm |
|
Contact pulley dia. |
140 |
140 |
140/160 |
200 |
200/250 |
|
Annealing current |
Max.1000A |
Max.2000A |
Max.2500A |
Max.4500A |
Max.7000A |
|
Annealing power |
85kw |
160kw |
190kw |
360kw |
540kw |
|
Control method |
DC Resistance Annealer |
||||
--------------------------------------------------------

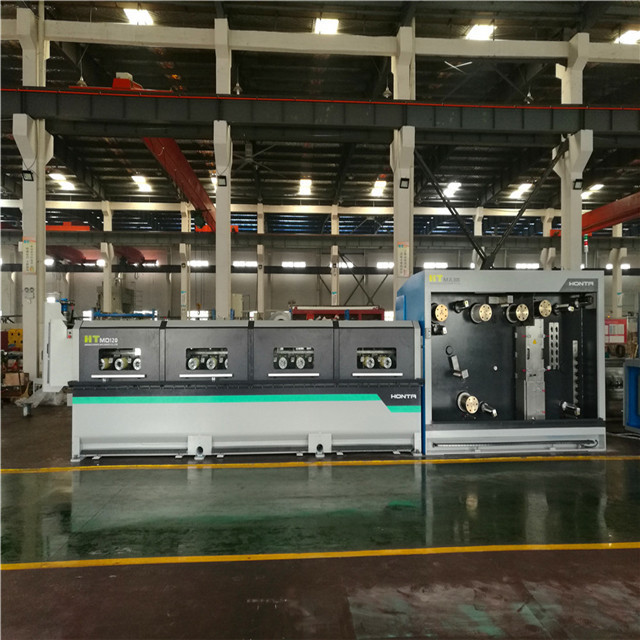

8wires multi wire drawing machine with annealer:
