The machine is made up of the foundation, motor, gearbox, high pressure pump and
homogenizing component etc..
Main applications:
(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes ( submicron ) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Widely applied in fields of food, genetic engineering, chemical industry, pharmacy etc..
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Weight:
-
270 KG, 1500kg
-
Dimension(L*W*H):
-
700*400*1000mm
-
Product name:
-
milk homogenizer
-
Capacity:
-
2000L/Hr
-
Material:
-
SUS304
-
Usage:
-
Dairy beverage/Juice
-
Voltage power:
-
380V,50Hz
-
Power Max:
-
35Mpa
-
Model:
-
YGT-JZJ-2.0
-
Size:
-
1.3*1.0*1.1m
-
Place of origin:
-
China
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
QJ
-
Voltage:
-
380V
-
Weight:
-
270 KG, 1500kg
-
Dimension(L*W*H):
-
700*400*1000mm
-
Product name:
-
milk homogenizer
-
Capacity:
-
2000L/Hr
-
Material:
-
SUS304
-
Usage:
-
Dairy beverage/Juice
-
Voltage power:
-
380V,50Hz
-
Power Max:
-
35Mpa
-
Model:
-
YGT-JZJ-2.0
-
Size:
-
1.3*1.0*1.1m
-
Place of origin:
-
China
Product Description

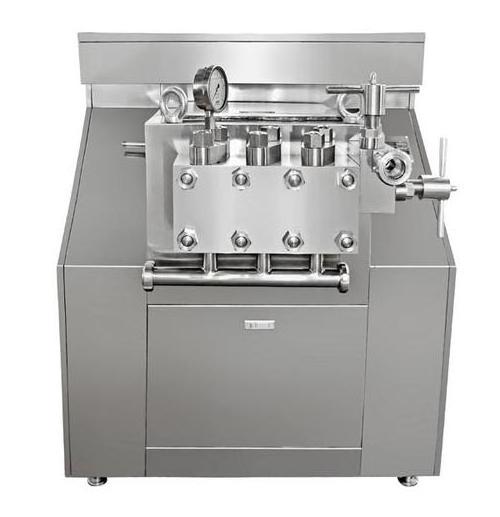

Homogenizer is a kind of equipment used to homogenize and emulsify liquid materials (liquid-liquid phase or liquid-solid phase) with viscosity lower than 0.2Pa.s and temperature ≤85℃. Mainly used in food or chemical industry , such as: homogenization and emulsification in the production process of dairy products, beverages, cosmetics, pharmaceuticals and other products. Application of homogenizer in food processing: Homogenizer in food processing refers to refining the material under the triple action of extrusion, strong impact and pressure loss expansion, so that the material can be More uniform mixing, such as the use of a homogenizer in dairy processing to break down the fat in the milk more finely, so that the entire product system is more stable. Milk will look whiter. Homogenization is mainly carried out by a homogenizer. It is an important processing equipment in the food, dairy and beverage industries.
Packing & Delivery
Equipment Description:
Specification
|
Driving assembly
|
House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
|
|
Plunger
|
the 4th generation stainless alloy(PH-type)
|
|
Check valve
|
the 4th generation stainless alloy (GrMoFr), abrade-resisting and impact-resisting
|
|
Pump block
|
stainless steel
|
|
Plunger sealing
|
X4310 and PP spacer with heat-proof reaching 100℃
|
|
Homogenizing valve
|
the 3rd special stainless alloy
|
|
Voltage
|
380V
|
|
Weight
|
1500KG
|
|
Dimension(L*W*H)
|
1.3*1.0*1.1m
|
|
Warranty
|
1 Year
|
Working Principle
：
when product is flowing through the adjustable valve ,the particles or droplets present in mixed
fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um,
average Φ ≤1um ) because of pressure decrease, expansion, explosion, cutting and high-speed
impacting etc., then the emulsions or dispersions could be produced. This process refer to the
following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be
realized.
when product is flowing through the adjustable valve ,the particles or droplets present in mixed
fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um,
average Φ ≤1um ) because of pressure decrease, expansion, explosion, cutting and high-speed
impacting etc., then the emulsions or dispersions could be produced. This process refer to the
following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be
realized.
