Quick Details
-
Power:
-
2200
-
Dimension(L*W*H):
-
2650*1050*1600mm
-
Weight:
-
650 KG
-
Production Capacity:
-
80 m /min
-
Suitable cutting material:
-
Non woven ,leather, knitted fabrics, garment fabric, foam, etc.
-
Model:
-
YCJX-1700B
-
Max. Rewinding Diameter:
-
400mm
-
Total Power:
-
2.2KW
-
Packing Size:
-
2650*1050*1600mm
-
Effective Material Width:
-
1700mm
-
Product name:
-

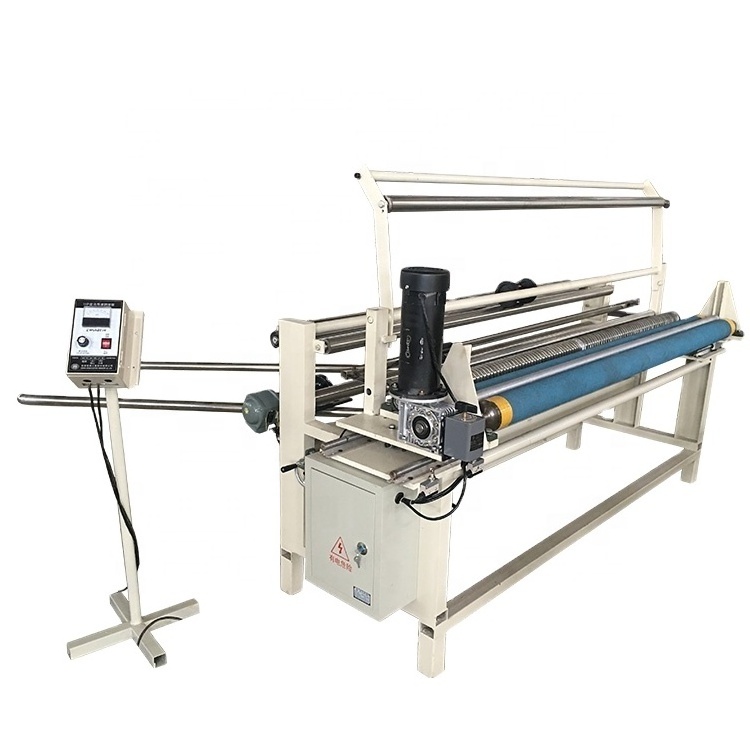

Automatic Straight / Twill Polyester Fabric Rolling Machine
-
Kw:
-
2.2
-
Keyword:
-
Fabric Rolling Machine
-
Function:
-
Cloth Rolling
-
Certification:
-
CE,ISO
Quick Details
-
Voltage:
-
380V/220V/Customerized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuancheng
-
Power:
-
2200
-
Dimension(L*W*H):
-
2650*1050*1600mm
-
Weight:
-
650 KG
-
Production Capacity:
-
80 m /min
-
Suitable cutting material:
-
Non woven ,leather, knitted fabrics, garment fabric, foam, etc.
-
Model:
-
YCJX-1700B
-
Max. Rewinding Diameter:
-
400mm
-
Total Power:
-
2.2KW
-
Packing Size:
-
2650*1050*1600mm
-
Effective Material Width:
-
1700mm
-
Product name:
-
Automatic Straight / Twill Polyester Fabric Rolling Machine
-
Kw:
-
2.2
-
Keyword:
-
Fabric Rolling Machine
-
Function:
-
Cloth Rolling
-
Certification:
-
CE,ISO
Product Description
1.Product Application
This machine is mainly used in shoes, garments, bags, hats, leather and other industries to make materials into longitudinal (45° twill) rolls or straight rolls, and measure materials length. And it also comes with CNC fabric roll slitting machine.
2. Features
1.It c
an wind fabric into straight or twill (longitudinal) rolls, special specifications can be customized according to customer needs.
2.
The rewinder has a continuously variable transmission system, which can obtain the best speed according to different materials. It is easy to operate and has a stainless steel cloth bucket.
3.Equipped with infrared automatic edge detection, which makes the cloth and leather materials tidy and neat during rewinding process, saving material.
3. Main technical parameters
|
Model
|
|
YCJX-1700B
|
|
|
Maximum Rewinding Diameter
|
|
300mm
|
|
|
Rewinding Speed
|
|
80 m/min
|
|
|
Effective Material Width
|
Straight Stripes
|
1700mm
|
|
|
|
Twill Stripes
|
1600mm
|
|
|
Rewinding Motor Power
|
|
1.1KW
|
|
|
Blade Motor Power
|
|
0.12KW
|
|
|
Lead-time
|
|
10 Working Days
|
|
|
Voltage
|
|
380V / 220V
|
|
|
Packing Size
|
|
2350*1050*1300mm
|
|
|
Weight
|
|
650kg
|
|
