Quick Details
-
Brand Name:
-
VACORDA
-
Model Number:
-
HKD
-
Product name:
-

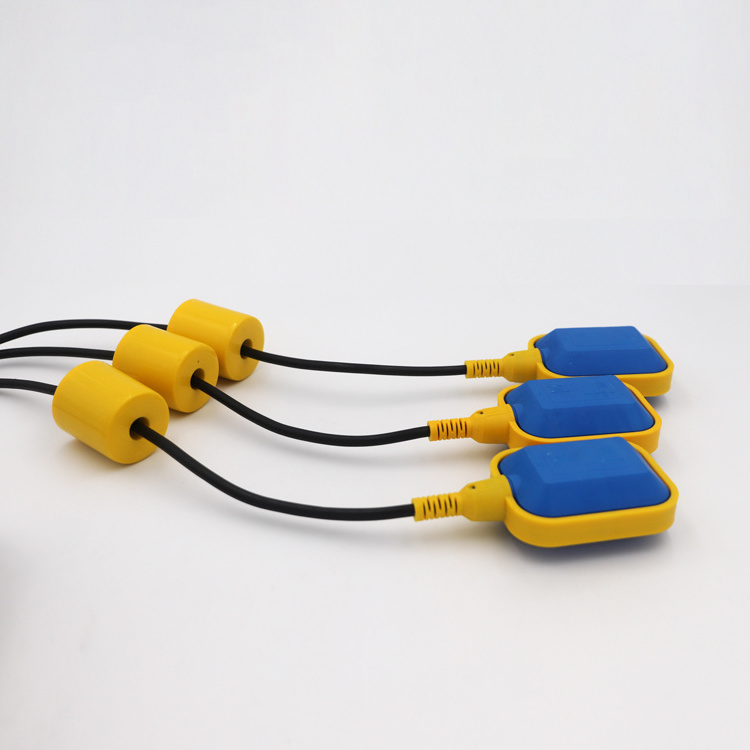

Vacorda factory sale hot water type float switch tank water
-
Material:
-
PP, SUS304
-
Contact Capacitance:
-
10A/250VAC(PP),2A/250VAC(SUS304)
-
Contact type:
-
1A,1B or 1AB(PP),SPDT(SUS304)
-
Cable specification:
-
Rubber cable and PVC(PP) Silicone:0.75mm2*3C(SUS304)
-
Suitable temperature:
-
Rubber cable: -10℃~80℃
-
Gravity:
-
>0.6g/cm3(PP),>0.5g/cm3(SUS304)
-
Electrical endurance:
-
≥50.000 times
-
Flow Rate:
-
100.000 Times
-
Model:
-
HKD
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
VACORDA
-
Model Number:
-
HKD
-
Product name:
-
Vacorda factory sale hot water type float switch tank water
-
Material:
-
PP, SUS304
-
Contact Capacitance:
-
10A/250VAC(PP),2A/250VAC(SUS304)
-
Contact type:
-
1A,1B or 1AB(PP),SPDT(SUS304)
-
Cable specification:
-
Rubber cable and PVC(PP) Silicone:0.75mm2*3C(SUS304)
-
Suitable temperature:
-
Rubber cable: -10℃~80℃
-
Gravity:
-
>0.6g/cm3(PP),>0.5g/cm3(SUS304)
-
Electrical endurance:
-
≥50.000 times
-
Flow Rate:
-
100.000 Times
-
Model:
-
HKD
Vacorda Factory Wireless Good Quality Float Switch Mini Submersible Pump With Float Switch
Working Principle
Float switch is using microswitch to be contact elements.When the liquid level rises to the float place, angle of floats place will be changed by the liquid level. When it reaches an certain angle, there will be ON or OFF contact signal output at the switches.
Installation
Basic Parameters
|
Float Materia: |
PP, SUS304 |
|
Contact Capacitance: |
10A/250VAC(PP),2A/250VAC(SUS304) |
| Contact type: | 1A,1B or 1AB(PP),SPDT(SUS304) |
| Cable specification: | Rubber cable and PVC(PP),Silicone:0.75mm 2 ×3C(SUS304) |
| Suitable temperature: | Rubber cable: -10℃~80℃,PVC cable:0℃~60℃,Silicone: 0~170℃ |
| Gravity: | >0.6g/cm 3 (PP),>0.5g/cm 3 (SUS304) |
*Water pump below 220V 1KW, can use directly.
*Water pump over 1KW, needs A.C. contractor or relay.*
