Furrow Bottom Moldboard Plows

FOB Reference Price: Get Latest Price

≥1 Sets

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 200 KG

Dimension(L*W*H):: /

Core Components:: Frame

Working width:: 800-3500mm

Working depth:: 150-400mm

Quick Details

Use:: farm

Place of Origin:: Shandong, China

Brand Name:: dadi

Weight:: 200 KG

Dimension(L*W*H):: /

Core Components:: Frame

Working width:: 800-3500mm

Working depth:: 150-400mm

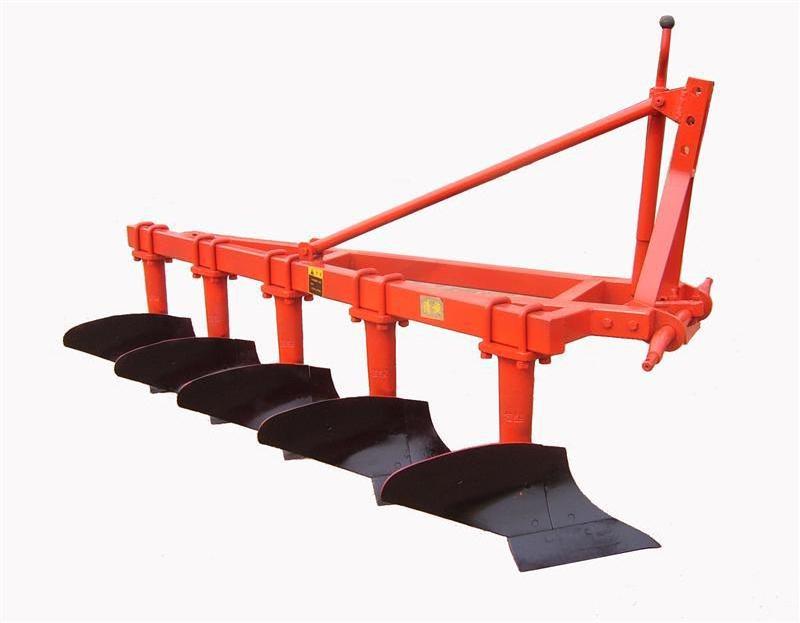

Furrow Bottom Moldboard Plows

Product Description

Sharp plow

The Furrow Bottom Moldboard Plows are full mounted and Sui table for ploughing on the cultivated the land with the soil resistance no more than 1.2kg.

The plow is simple in structure and light in weight. Suitable working scope is wide, after cultivation, the land surface is leveling and the furrow is narrow and the soil is well crushed and turn ed over.

Hydraulic reversible plow

The modern agriculture requirement is lower cast and higher volume output. The cost for cultivation is paid more and more attention by the customers and to meet this requirement, Our company developed the series of reversal plough, the plough camber is deeply prefer by the customer all over the county in recent years particularly, the working speed is 8-10km/h.

Specifications

Number	Product Name	Model	Overall size (mm)	Matched Power (Hp)	Weight (Kg)	Working width (M)	Working depth (mm)	Productivity (Ha/h)
8	Furrow	1L220	1240700960	15-25	72	400	140-160	0.14-0.2
9	Furrow	1L320	18008201040	25-35	122	600	140-160	0.32-0.6
10	Furrow	1L420	240010001040	30-40	148	800	140-160	0.32-0.6
11	Furrow	1L-520	296012001040	40-50	185	1000	140-160	0.32-0.6
16	Furrow	1L227	17209501180	25-40	120	540	160-220
17	Furrow	1L327	173011101120	35-45	158	810	160-220	0.24-0.38
18	Furrow	1L427	224013601220	40-50	195	1080	160-220	0.33-0.4
19	Furrow	1L527	277016001260	55-80	255	1350	160-220	0.5-0.75
20	Furrow	1L627	328019301280	80-100	340	1620	160-220	0.65-0.9
21	Furrow	1L727	380023501280	90-120	390	1890	160-220	0.75-1.0
22	Furrow	1L230Q	17209501180	25-40	130	600	200-300	0.22-0.3
23	Furrow	1L330Q	210012301350	40-60	180	900	200-300	0.3-0.36
24	Furrow	1L430Q	272015501260	45-65	255	1200	200-300	0.43-0.55
25	Furrow	1L530Q	277016001260	55-90	300	1500	200-300
26	Furrow	1L630Q	328019301280	80-100	420	1800	200-300

Number	Product Name	Model	Matched Power (Hp)	Weight (Kg)	Working width (M)	Working depth(mm)	control system	Linkage
7	Hydraulic reversible plow	1LYF-220	15~24	200	400	150-240	Hydraulic	Three point mounted
8	Hydraulic reversible plow	1LYF-320	25~35	270	600	150-240	Hydraulic	Three point mounted
15	Hydraulic reversible plow	1LYF-227	25~35	350	540	150-240	Hydraulic	Three point mounted
16	Hydraulic reversible plow	1LYF-327	30~55	420	810	150-240	Hydraulic	Three point mounted
17	Hydraulic reversible plow	1LYF-427	40~80	520	1080	150-240	Hydraulic	Three point mounted
18	Hydraulic reversible plow	1LYF-527	55~90	690	1350	150-240	Hydraulic	Three point mounted
19	Hydraulic reversible plow	1LYF-627	80~120	820	1630	150-240	Hydraulic	Three point mounted
20	Hydraulic reversible plow	1LYF-727	100~140	980	1900	150-240	Hydraulic	Three point mounted
21	Hydraulic reversible plow	1LYFQ-230	25~40	350	600	150-300	Hydraulic	Three point mounted
22	Hydraulic reversible plow	1YFQ-330	40~50	430	900	150-300	Hydraulic	Three point mounted
23	Hydraulic reversible plow	1LYFQ-430	50~80	550	1200	150-300	Hydraulic	Three point mounted
24	Hydraulic reversible plow	1LYFQ-530	75~100	720	1500	150-300	Hydraulic	Three point mounted
25	Hydraulic reversible plow	1LYFQ-630	100~130	840	1800	150-300	Hydraulic	Three point mounted
26	Hydraulic reversible plow	1LYFQ-730	120~150	1000	2100	150-300	Hydraulic	Three point mounted
33	Hydraulic reversible plow	1LYF-235	40~60	480	700	200-350	Hydraulic	Three point mounted
34	Hydraulic reversible plow	1LYF-335	50~80	700	1050	200-350	Hydraulic	Three point mounted
35	Hydraulic reversible plow	1LYF-435	90~130	980	1400	200-350	Hydraulic	Three point mounted
36	Hydraulic reversible plow	1LYF-535	120~160	1200	1750	200-350	Hydraulic	Three point mounted
37	Hydraulic reversible plow	1LYF-635	140~165	1550	2100	200-350	Hydraulic	Three point mounted
38	Hydraulic reversible plow	1LYF-735	160~200	1900	2450	200-350	Hydraulic	Three point mounted
