Quick Details
-
Model Number:
-
AZ31 AZ61 AZ91 WE43 ZK60
-
Shape:
-
sheet/plate/board/foil, sheet/plate/board/foil
-
Material:
-
Magnesium alloy
-
Chemical Composition:
-
Magnesium alloy, AI:2.5-3.5%;Zn:0.7-1.3%;Mn:0.20-1.0%;
-
Magnesium Plates OEM:
-
High Purity AZ31B AZ91 WE43 Magnesium Plates,magnesium sheet
-
Process:
-
hot rolling
-
Size:
-
thickness from 0.04 to 1.mm;
-
Other name:
-
Magnesium sheet
-
Type:
-
AZ63C,AZ31,ZK61 AZ80
-
Certification:
-
ISO9001,ISO14001,EJ/T9001-2005
-
Packaging:
-
In Carton /wood crate/on pallet/ in roll
Quick Details
-
Application:
-
Speaker , Electronic Industry, Speaker , Electronic Industry
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HB
-
Model Number:
-
AZ31 AZ61 AZ91 WE43 ZK60
-
Shape:
-
sheet/plate/board/foil, sheet/plate/board/foil
-
Material:
-
Magnesium alloy
-
Chemical Composition:
-
Magnesium alloy, AI:2.5-3.5%;Zn:0.7-1.3%;Mn:0.20-1.0%;
-
Magnesium Plates OEM:
-
High Purity AZ31B AZ91 WE43 Magnesium Plates,magnesium sheet
-
Process:
-
hot rolling
-
Size:
-
thickness from 0.04 to 1.mm;
-
Other name:
-
Magnesium sheet
-
Type:
-
AZ63C,AZ31,ZK61 AZ80
-
Certification:
-
ISO9001,ISO14001,EJ/T9001-2005
-
Packaging:
-
In Carton /wood crate/on pallet/ in roll

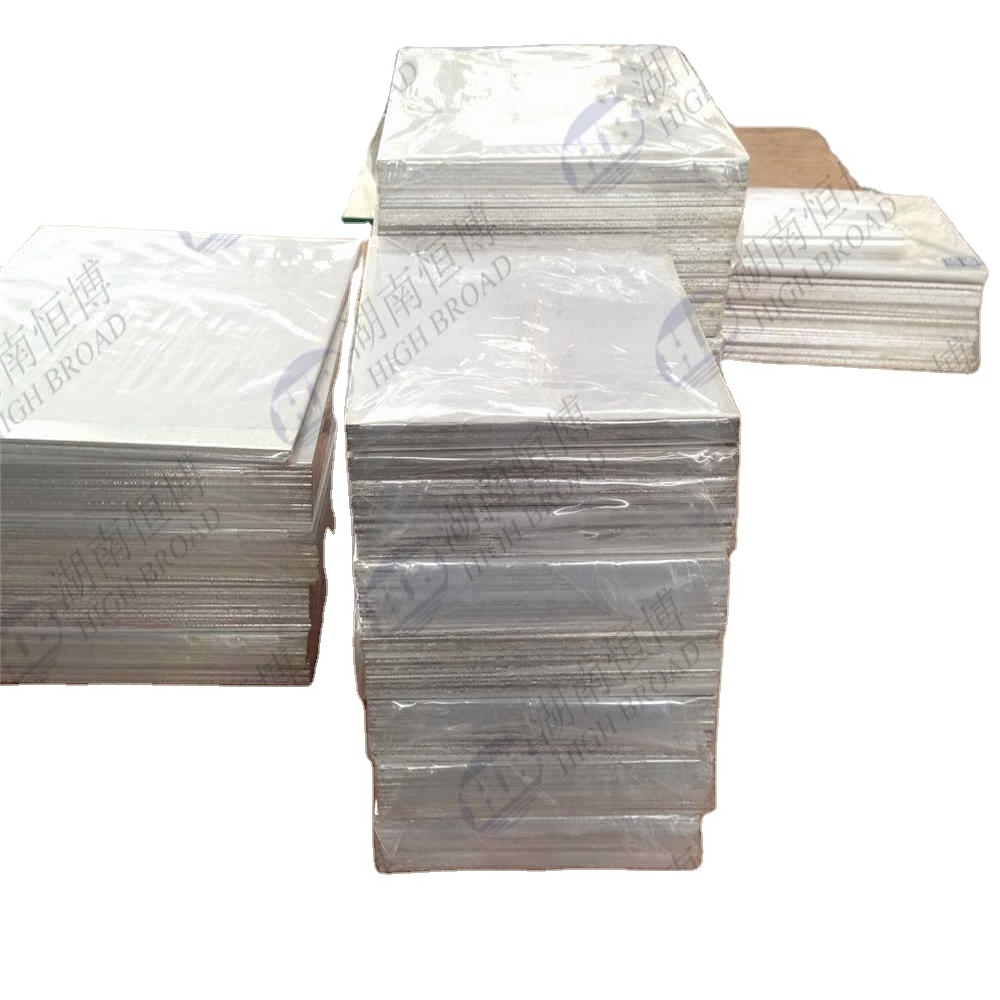

Lighter and Stiffer Magnesium Alloy Foil for Speaker Diaphragms
Our magnesium foils grade are pure magnesium (99.9% min.), AZ31, AZ61, AZ91, AP65, MnE21, etc., 80kg max/roll, plate width 280mm max, thickness range 0.05-1mm.
Magnesium alloy has the characteristics of small density, high specific strength, large elastic modulus, good electromagnetic shielding, easy recovery, environment friendly and so on. It is excellent light structure material. Magnesium alloys have been widely used in many fields such as automotive, computer, communications and aerospace, and many countries see it as an important strategic material for the 21st century. Now the Chinese main market magnesium alloy strip rolling thickness are more than 0.5mm, but our company can also produce thickness 0.05-1mm , which has great prospects for the development of the industry.
|
Grade |
Thickness (mm) |
Width (mm) |
Length(mm) |
Density (g/cm3) |
Yield Strength (Mpa) |
Tensile strength(Mpa) |
Elongation (%) |
|
AZ31 AZ61 AZ91 Pure Magnesium Mne21 WE43 |
0.2 |
100 |
As per request or by coil |
1.78 |
>180 |
>200 |
>7 |
|
0.17 |
190 |
||||||
|
0.14 |
100 |
||||||
|
0.12 |
241 |
||||||
|
0.08 |
265 |
||||||
|
0.08 |
231 |
||||||
|
0.08 |
100 |
||||||
|
0.06 |
100 |
||||||
|
0.06 |
258 |
||||||
|
0.04 |
216 |
||||||
|
0.04 |
220 |
|
Grade |
Thickness (mm) |
Width (mm) |
Length(mm) |
Density (g/cm3) |
Yield Strength (Mpa) |
Tensile strength(Mpa) |
Elongation (%) |
|
AZ31 AZ61 AZ91 Pure Magnesium Mne21 WE43 |
0.4 |
300 |
As per request or by coil |
1.78 |
>180 |
>200 |
>7 |
|
0.37 |
211 |
||||||
|
0.3 |
100 |
||||||
|
0.3 |
241 |
||||||
|
0.3 |
265 |
||||||
|
0.29 |
231 |
||||||
|
0.21 |
100 |
Alloy and Form
· WE43/WE54/WE94 – Rod, Tooling Plate
· AZ31B-H24 – Spec Grade – Sheet & Plate Sheet, Plate
· AZ91C – As cast or heat treated – Castings
· AZ91E – As cast or heat treated – Castings
· AZ80 – Bar
· EV31A – As cast or heat treated – Castings
· ZE41A – As cast or heat treated – Castings
· ZK60A – Bar, Sheet, Plate
Extruded Magnesium Alloys and Forms Available
|
*** Sheet, Plate, Bar, Castings, Forgings, Extrusions *** |
|
|
AZ31-TP Tooling Plate From .250″ to 14″ thickness |
AZ31B-H24 Sheet & Plate From .020″ to 3″ thickness |
|
AZ31B-O Sheet & Plate From .020″ to 3″ thickness |
AZ31B-F Round Bar From .250″ to 14″ diameter |
|
ZK60A-T5 Flat Bar Many sizes!! |
ZK60A-F Flat Bar Many sizes!! |
|
ZK60A-T5 Round Bar From 1″ to 15″ diameter |
ZK60A-F Round Bar From 1″ to 15″ diameter |
|
AZ61A-F Round Bar From 1″ to 3.125″ diameter |
Forgings, Castings, and Special Extruded Shapes |
|
|
|
We also have other grade plate:
WE43
WE54
WE94
AZ91D
