Quick Details
-
Rated Voltage:
-
0-36kv
-
Tensile Strength:
-
53kN
-
Item name:
-
ANSI 54-2 Porcelain Ceramic Stay Strain Insulator For Line
-
Color:
-
brown , white ,blue, grey
-
Certificate:
-
ISO9001
-
Port:
-
Fuzhou
-
Standard:
-
ASNI ,AS ,CE
-
Payment:
-
T/T L/C Western Union
-
Delivery:
-
30 days
-
Mechanical failing load:
-
18-222kn
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CY,SD
-
Model Number:
-
ANSI 54-1, 54-2, 54-3, 54-4
-
Rated Voltage:
-
0-36kv
-
Tensile Strength:
-
53kN
-
Item name:
-
ANSI 54-2 Porcelain Ceramic Stay Strain Insulator For Line
-
Color:
-
brown , white ,blue, grey
-
Certificate:
-
ISO9001
-
Port:
-
Fuzhou
-
Standard:
-
ASNI ,AS ,CE
-
Payment:
-
T/T L/C Western Union
-
Delivery:
-
30 days
-
Mechanical failing load:
-
18-222kn

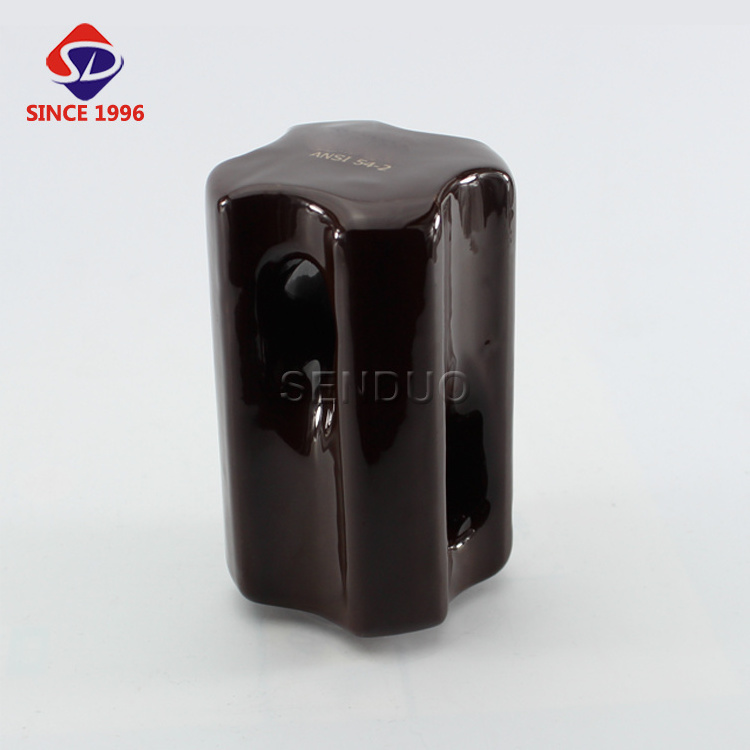

ANSI 54-2 Porcelain Ceramic Stay Strain Insulator For Line
Our factory is an enterprise engaged in producing and exporting all kinds of insulators ,such as suspension insulator/spool insulator/ shackle insulator/ stay insulator/ pin insulator/line post insulator /wiring insulator etc,we in this field for several years. With high quality and competive price and timely delivery,we hope that we can estalishment of a long-term friendly relations of cooperation.
| Specifications | modern style guy type strain insulator match ansi standard | SENDUO |
1. Professional porcelain insulator producer and supplier
2. Elegant galzed appearance and free sample
3. Customized color is acceptable,grey,brown,white
4. Aging & temperature resistance
|
TYPE |
GY1 |
GY2 |
GY3 |
GY4 |
54-1 |
54-2 |
54-3 |
54-4 |
|
|
Creepage Distance mm |
41 |
48 |
57 |
76 |
|||||
|
Main Dimension (mm) |
H |
90 |
146 |
216 |
280 |
89 |
108 |
140 |
171 |
|
h |
48 |
73 |
89 |
89 |
44 |
57 |
79 |
67 |
|
|
h1 |
60 |
99 |
133 |
165 |
64 |
76 |
103 |
114 |
|
|
D |
68 |
73 |
115 |
115 |
64 |
73 |
86 |
89 |
|
|
d |
10 |
44 |
67 |
67 |
44 |
54 |
60 |
60 |
|
|
d1 |
16 |
22 |
38 |
38 |
16 |
22 |
25 |
25 |
|
|
Mechanical Failing Load kN |
10 |
15 |
20 |
30 |
44 |
53 |
89 |
89 |
|
|
Power Frequency Flashover Voltage |
Dry/kV |
27 |
71 |
222 |
222 |
25 |
30 |
35 |
40 |
|
Wet/kV |
12 |
15 |
18 |
23
|
|||||
|
Apply Standard |
AS |
ANSI |
|||||||
| Certifications | modern style guy type strain insulator match ansi standard | SENDUO |
| Products Photos | modern style guy type strain insulator match ansi standard | SENDUO |
| Factory Photos | high quality 54-3 white stay/guy strain insulator | SENDUO |
Shipping
1. Payment: Irrevocable L/C at sight or TT 30% deposit in advance and the balance against copy of B/L
2. Delivery time and methord: Usually within 30 days by sea
3. Port of loading: FUZHOU,CHINA
4. MOQ: 200PCS
5. Package: Standard export packing--Carton/Wooden/Pallet
6. OEM/ODM: can be acceptable by us
7. Quality Control: ISO9001
8. Producing standard: ANSI, IEC, BS, DIN, AS, SA, XIHARI etc.
