Quick Details
-
Model Number:
-
PAL-PEX
-
Specification:
-
2mm-4.4mm
-
Length:
-
Roll
-
Thickness:
-
2mm
-
Standard:
-
ISO
-
Varieties:
-
Floor Heating Systems
-
Model:
-
pex floor heating
-
Brand:
-
fosite
-
Raw material:
-
PE-RT
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Hebei, China, Hei Bei , China (Mainland)
-
Brand Name:
-
Fosite
-
Model Number:
-
PAL-PEX
-
Specification:
-
2mm-4.4mm
-
Length:
-
Roll
-
Thickness:
-
2mm
-
Standard:
-
ISO
-
Varieties:
-
Floor Heating Systems
-
Model:
-
pex floor heating
-
Brand:
-
fosite
-
Raw material:
-
PE-RT

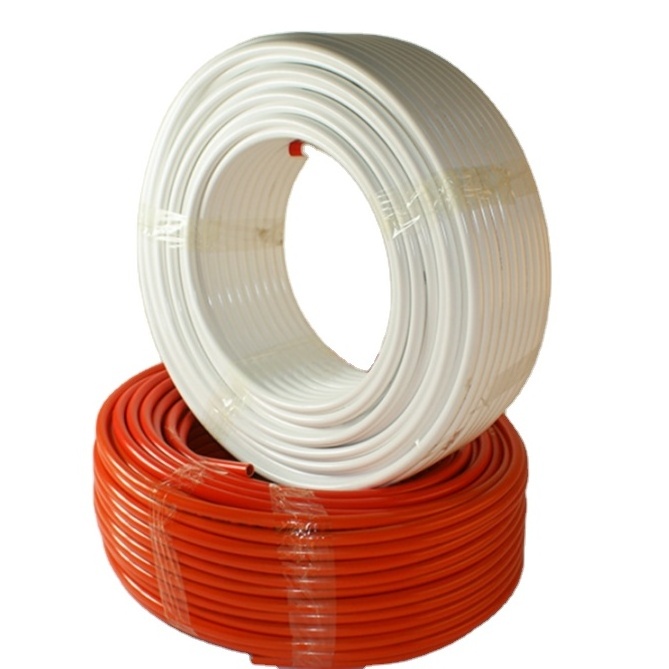

China factory PEX-AL-PEX/PEX/PEXA Pipe 16mm 20mm 25mm 26mm 32mm PEX Pipe for Floor Heating System
Specifications:
PEX AL PEX Pipes
Standard:
GB/T28001
Type:
Butt Weld or Overlap
OEM service available
Main Market:
Europe Country
Detail Information:
|
Product |
PEX AL PEX Pipe (ITEM#6804) |
|
Type |
Overlap Weld |
|
Material |
Middle Layer ---- Aluminum Strip Out layer --- Crosslinked Polyethylene Inner laser ---- Crosslinked Polyethylene Between Layers --- Welding Adhesives |
|
Available Colors |
White, Orange , Y ellow , or OEM Color |
|
Branding |
OEM (Your logo or company can be printed on the pipes) |
|
Applicable Standard |
EURO PE STANDARD , DIN STADARD; |
|
Pressure |
1.25 MPA |
|
MOQ |
100 Rolls |
|
Samples |
Free samples are available, please pay for the postage. |
|
Payment Terms |
30% T/T deposit, 70% Balanced against BL copy. |
|
Main Market |
Russia, Ukraine, Australia, Spain, CZ, Germany, Israel, Dubai, etc |
|
Quantity Warranty |
2 Years |
|
Service Life |
50 Years |
|
Characteristic |
Connection----brass socket, brass elbow, brass tee and brass cross High temperature can be up to 95 degree and high pressure can be up to 3.5Mpa. UV protect, It can be installed above or under ground. Convenient to be transport, It can be packed in roll, greatly save the space on the container. Flexible, It can be bended to any angle, easy to correct the direction and fittings saving.
Good electrical insulation, Water quality unaffected
Safe and healthy, environmental friendly, harmless to body and easy to clean. |
|
Usage |
Cold and hot water systems of residence and commercial building Transportation of industrial water supply and chemical material Pure water pipe system and domestic water supply. Pipe networks and rainwater utilization systems. Transportation system of drinking water production |
Technique Data:
|
Description |
AL Strip Thick (mm) |
Size (mm) |
Weight (KG/roll) |
Package (meter/roll) |
|
PEX AL PEX Pipe |
0.21 |
16*2.0 |
9.5 |
100 |
|
0.21 |
18*2.0 |
10.0 |
100 |
|
|
0.23 |
20*2.0 |
12.0 |
100 |
|
|
0.25 |
26*3.0 |
22.4 |
100 |
|
|
0.28 |
32*3.0 |
14. 0 |
50 |
Click here for more information
- 1.How to get free samples ? A: Send your address ,your telphone number ,post code ,and express account number to our mail box .and told us which model of samples you need .
- 2.Who pay for the express cost ? A: We can support you free samples each model 1-3 pcs ,and we do not pay for express cost .
- 3 .What is your packing? A : usually plastic bags,carton,can be packed as your require.
