Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
dowell
-
Model Number:
-
jk/jm
-
Product Name:
-

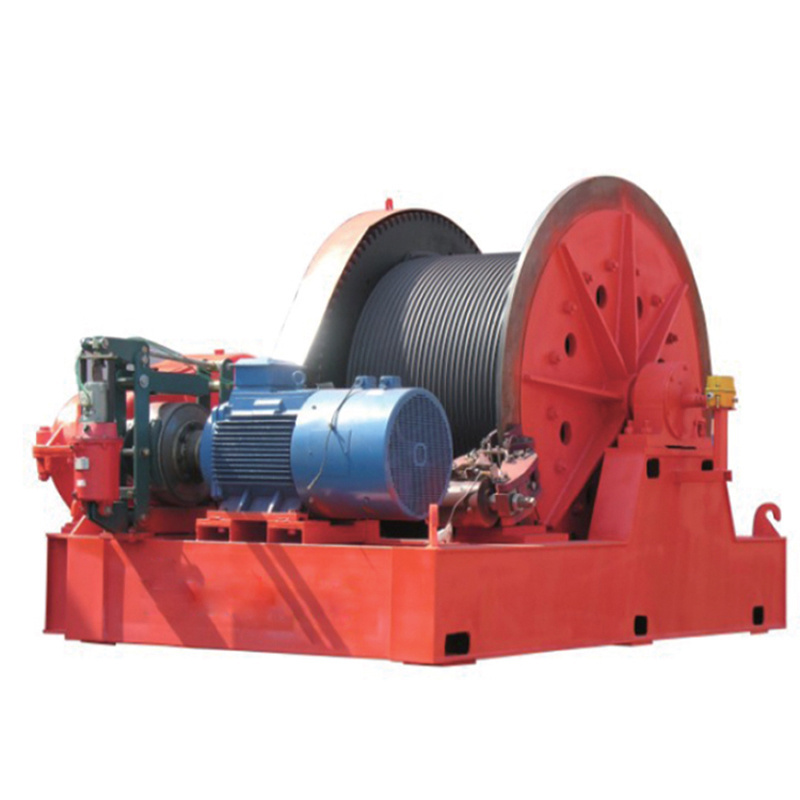

special design variable speed 10 ton electric pulling winch for sale
-
Power supply:
-
3 phase 380V 50hz or request
-
Lifting Speed:
-
5-15M/MIN
-
Trolley running speed:
-
20-40M/MIN
-
Working class:
-
A3
-
Crane running speed:
-
30-50M/MIN
-
Control method:
-
cabin control/wire rope remote control
-
Protection grade:
-
IP54
-
Insulation grade:
-
F
-
Color:
-
Customer Requirements
Quick Details
-
Power Source:
-
Electric
-
Application:
-
CRANES
-
Capacity:
-
/
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
dowell
-
Model Number:
-
jk/jm
-
Product Name:
-
special design variable speed 10 ton electric pulling winch for sale
-
Power supply:
-
3 phase 380V 50hz or request
-
Lifting Speed:
-
5-15M/MIN
-
Trolley running speed:
-
20-40M/MIN
-
Working class:
-
A3
-
Crane running speed:
-
30-50M/MIN
-
Control method:
-
cabin control/wire rope remote control
-
Protection grade:
-
IP54
-
Insulation grade:
-
F
-
Color:
-
Customer Requirements
Products Description
Product Paramenters
|
Model
|
Rated load(KN)
|
Rated speed (m/min)
|
Rope capacity(m)
|
Rope diameter(mm)
|
Motor model
|
Motor model(KW)
|
Overall dimensions(mm)
|
Total weight(kg)
|
|
Model
|
|
|
|
|
|
|
|
|
|
JM1
|
10
|
15
|
100
|
9.3
|
Y112M-6
|
3
|
620*701*417
|
270
|
|
JM2
|
20
|
16
|
150
|
13
|
Y160M-6
|
7.5
|
945*996*570
|
550
|
|
JM3.2
|
32
|
10
|
150
|
15.5
|
YZR16M2-6
|
7.5
|
1430*1160*910
|
1100
|
|
JM5
|
50
|
10
|
250
|
21.5
|
YZR160L-6
|
11
|
1235*1230*805
|
1500
|
|
JM8
|
80
|
8
|
250
|
26
|
YZR180L-6
|
15
|
2090*1475*956
|
2600
|
|
JM8B
|
80
|
9.5
|
350
|
26
|
YZ180L-6
|
15
|
1075*1589*985
|
2500
|
|
JM10
|
100
|
8
|
170
|
30
|
YZR200L-6
|
22
|
2090*1475*956
|
3000
|
|
JM10B
|
100
|
9.5
|
250
|
30
|
YZR200L-6
|
22
|
1705*1598*985
|
3500
|
|
JM12.5
|
20
|
8
|
300
|
34
|
YZR225M-6
|
30
|
2880*2200*1550
|
5000
|
|
JM13.5
|
32
|
5
|
290
|
28
|
YZP225S-8
|
22
|
2990*2363*1650
|
6500
|
|
JM16
|
32
|
10
|
500
|
37
|
YZR250M2-8
|
37
|
3750*2400*1850
|
8800
|
|
JM20
|
50
|
10
|
600
|
43
|
45YZR280S-8
|
55
|
3950*2560*1950
|
9900
|
|
JM25
|
50
|
9
|
700
|
48
|
YZR280M-8
|
55
|
4350*2800*2030
|
13500
|
|
JM32
|
50
|
9
|
700
|
56
|
YZR315S-8
|
75
|
4500*2850*2030
|
14800
|
|
JM50
|
50
|
9
|
800
|
65
|
YZR315M-8
|
90
|
4930*3050*2250
|
19500
|
|
JM65
|
50
|
10.5
|
3600
|
64
|
LA8315-8AB
|
160
|
5900*4680*3200
|
46000
|
Safety device:
1. Double limit switch.
2. Current overload protection device
3. Buffer.
4. Weight overload protection device.
5. Emergency brake.
1. Double limit switch.
2. Current overload protection device
3. Buffer.
4. Weight overload protection device.
5. Emergency brake.
Details Images
Application
* Different types of winch
Our Advantages
Product packaging
1.Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
