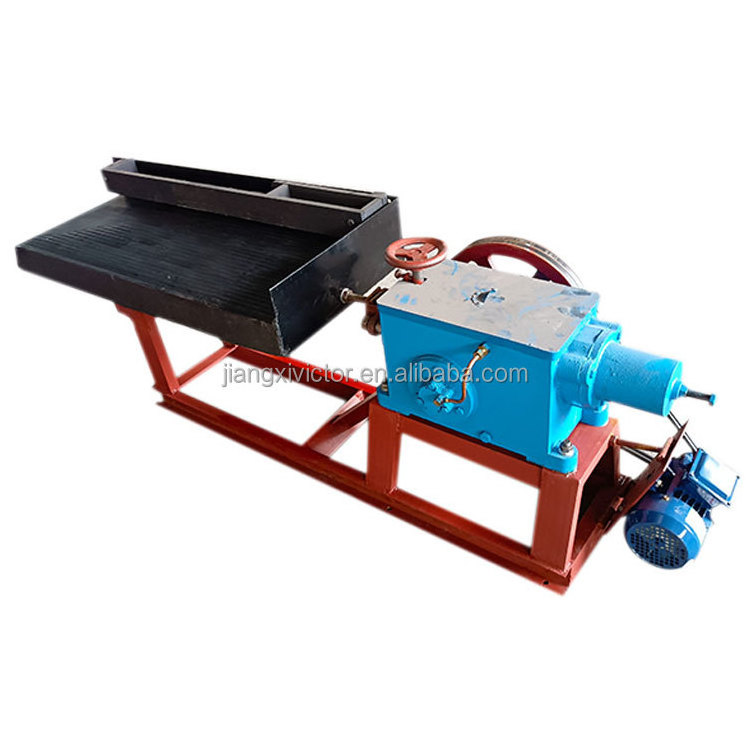

Mini Lab Gold Separator Fiberglass LY1100 Shaker Table Shaking Table for Sample Test

Mini Lab Gold Separator Fiberglass LY1100 Shaker Table Shaking Table for Sample Test

FOB Reference Price: Get Latest Price

≥1 Sets

US $850

≥10 Sets

US $700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 1530*500*660mm

Weight:: 240 KG

Product name:: Shaking Table

Material:: Fiberglass

Recovery rate:: 90-95%

Feeding size:: 0.074-2mm

Capacity:: 0.1-0.5t/h

Installation:: Engineer Guide

Usage:: Mineral Separation

Quality:: China Standard

Price:: Competitive

After sale service:: Technology Support

Quick Details

Production Capacity:: 0.1-0.2t/h

Place of Origin:: Jiangxi, China

Brand Name:: WKD

Voltage:: 380V

Dimension(L*W*H):: 1530*500*660mm

Weight:: 240 KG

Product name:: Shaking Table

Material:: Fiberglass

Recovery rate:: 90-95%

Feeding size:: 0.074-2mm

Capacity:: 0.1-0.5t/h

Installation:: Engineer Guide

Usage:: Mineral Separation

Quality:: China Standard

Price:: Competitive

After sale service:: Technology Support

Product Description

Shaking table is designed to wet gravity-based separation of minerals and other granular materials.
There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

6-S shaking bed is one of the main equipment for gravity classification, which is widely applied in the classification of tungsten, tin, tantalum, columbium and other rare metal and precious metal ore. shaking bed is designed for wet gravity-base separation of mineral and other granular materials. It is effective in processing precious and base metal, rare and non-metallic minerals.

Working Principle

Shake table is on the lean table board with raffles. The ore material is fed in by the feeding chute upper table board; meanwhile, the water is fed by water feeder transversely. Under the impact of vibrating wave, the materials go on vertical and horizontal movement as per the different proportion and granularity. The ore material with different proportion and granularity move down in laddershipped state along with their own movement, then discharge from the fine concentrate end and tailings end, finally they are separated out to fine concentrate, middle concentrate and tailings.

1. Ore Feeding Mouth

2. Stroke Adjusting Device
3. Ore Feeding Chute
4. Water Feeding Mouth
5. Water Feeding Chute
6. Table Surface
7. Concentrates Discharging Area

8. Tailing Discharging Area
9. Horizontal Support
10. Horizontal Adjustment Wheel
11. Table Support
12. Knife-Type Support
13. Stand
14. Driving Unit 15. Motor Support
16. Swing Adjusting Device

Technical Parameter

Model	LYS4500	LY3000	LY2100	LY1100
Screen Size mm	4500x1850x1560	3000x1490x1360	2100x1050x850	1100x500x430
Stroke length mm	10-30	6-30	12-28	9-17
Frequency T/min	240-420	210-320	250-450	280-460
Horizontal slope °	0-5	0-10	0-8	0-10
Feeding Density %	10-30	10-30	10-30	10-30
Coarse Feeding Size Fine Slime	2-0.5 mm	2-0.5 mm	2-0.5 mm	2-0.5 mm
		0.5-0.074mm	0.5-0.074mm	0.5-0.074mm	0.5-0.074mm
		0.074-0.037mm	0.074-0.037mm	0.074-0.037mm	0.074-0.037mm
Coarse Capacity tph Fine Slime	1-2.5	0.6-1.5	0.4-0.8	0.1-0.2
		0.8-1.2	0.3-0.8	0.2-0.5	0.05-0.1
		0.3-0.9	0.2-0.6	0.1-0.4	0.03-0.05
Water consumption tph	0.4-0.7	0.3-1.5	0.2-1	0.1-0.5
Motor KW	1.1	1.1	1.1	0.55
Dimension mm	5600×1850×860	4075×1320×780	3040×1050×1020	1530×500×800
