Quick Details
-
Marketing Type:
-
New Product 2022
-
Production Capacity:
-
400 t/h
-
Power:
-
93
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VOSTOSUN
-
Dimension(L*W*H):
-
6290*2690*3650
-
Model:
-
VSPR6000L
-
Traveling type:
-
Rear wheel drive
-
Basic paving width m:
-
2.5
-
Max. paving width m:
-
6
-
Max. paving thickness mm:
-
150
-
Working Speed m/min:
-
0-11
-
Traveling speed km/h:
-
0-11
-
Theoretical productivity t/h:
-
400
-
Hopper capacity t:
-
12
-
Gradeability %:
-
≥20
Quick Details
-
Max. Paving Thickness:
-
150mm
-
Weight:
-
1600 kg
-
Engine Brand:
-
famous brand
-
Marketing Type:
-
New Product 2022
-
Production Capacity:
-
400 t/h
-
Power:
-
93
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
VOSTOSUN
-
Dimension(L*W*H):
-
6290*2690*3650
-
Model:
-
VSPR6000L
-
Traveling type:
-
Rear wheel drive
-
Basic paving width m:
-
2.5
-
Max. paving width m:
-
6
-
Max. paving thickness mm:
-
150
-
Working Speed m/min:
-
0-11
-
Traveling speed km/h:
-
0-11
-
Theoretical productivity t/h:
-
400
-
Hopper capacity t:
-
12
-
Gradeability %:
-
≥20
Product Overview

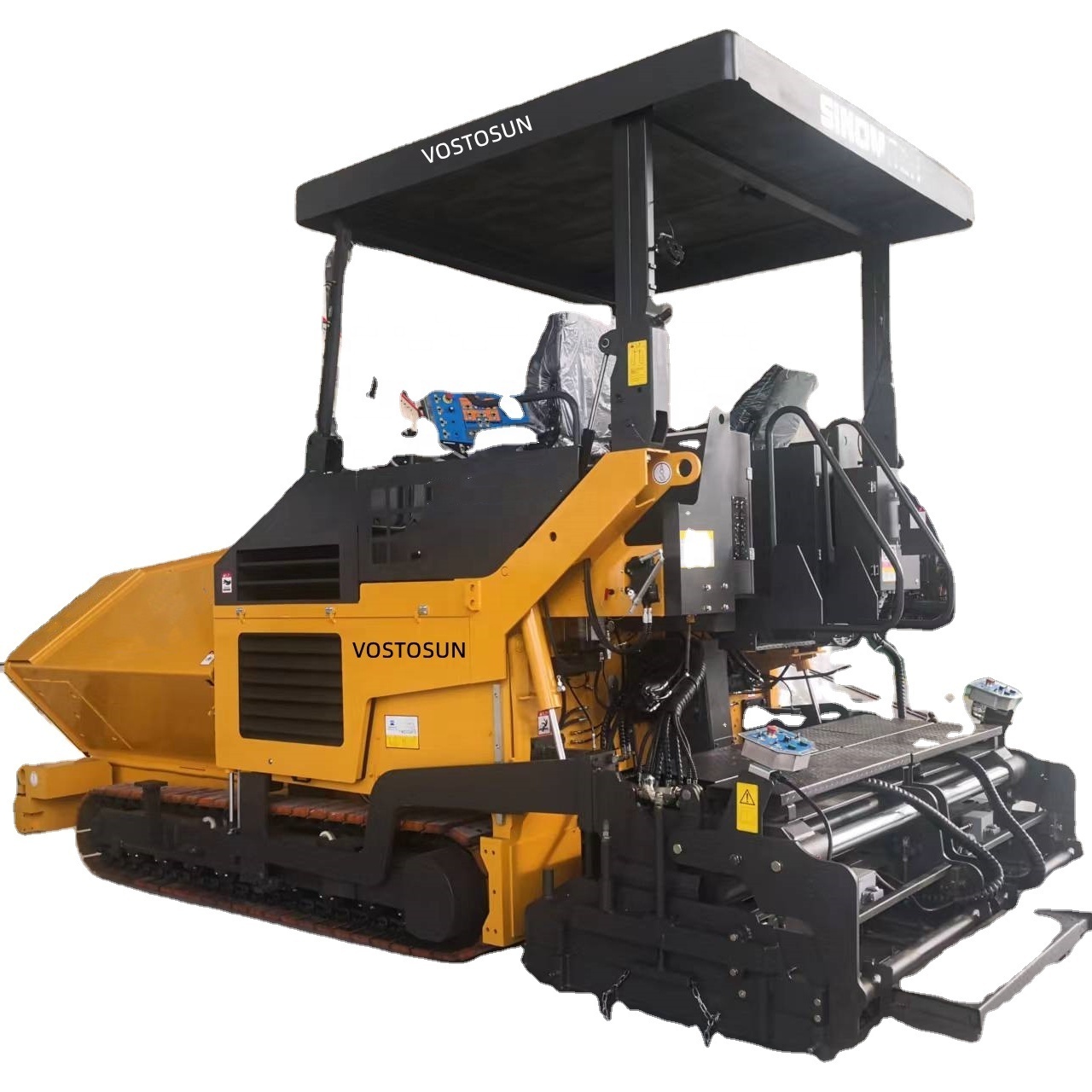

Asphalt Concrete Paver
Pavement width of 2.5m to 6.0m and flexibility of transition of tire paver, fully hydraulic four-wheel drive, continuously
variable, with Cummins engine (93kw/2200rpm), hydraulic system using electro-hydraulic proportional control Technology,
independent transmission and distribution drive, so that the power output is efficient, 13t hopper design is large, the new
compact left and right independently drive the delivery bin, the distribution device can be easily moved up and down to adapt to different paving thickness, reduce the material segregation, electricity The control system design is based on the CAN bus technology. The automatic leveling device can be used to control the paving thickness and slope accurately. The vertical flatness can reach 3mm/3m and the transverse gradient is within 0.02%.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Item
|
Unit
|
VSRP6000L
|
|
Traveling type
|
|
Rear wheel drive
|
|
Basic paving width
|
m
|
2.5
|
|
Max. paving width
|
m
|
6
|
|
Max. paving thickness
|
mm
|
150
|
|
Working Speed
|
m/min
|
0-11
|
|
Traveling speed
|
km/h
|
0-11
|
|
Theoretical productivity
|
t/h
|
400
|
|
Hopper capacity
|
t
|
12
|
|
Gradeability
|
%
|
≥20
|
|
Flatness deviation (longitudinal wave)
|
mm/3m
|
2
|
|
Transverse wave deviation
|
%
|
±0.02
|
|
Degree of adjustment
|
%
|
-1~+3
|
|
Manufacturer
|
|
Dongfeng Cummins
|
|
Model
|
|
QSB3.9-C125
|
|
Fuel tank capacity
|
L
|
116
|
|
Rated power
|
kW
|
93
|
|
Rated speed
|
rpm
|
2200
|
|
Electric system
|
V
|
24
|
|
Emission
|
|
State Ⅲ
|
|
Screed type
|
|
Hydraulic
|
|
Telescopic range
|
m
|
2.5~4.5
|
|
Compaction type
|
|
Single
|
|
Compaction frequency
|
HZ
|
25
|
|
Compaction amplitude
|
mm
|
5
|
|
Vibration frequency
|
HZ
|
40
|
|
Heating type
|
|
Diesel
|
|
Length
|
mm
|
6290
|
|
Width (Basic)
|
mm
|
2690
|
|
Height (Cabin)
|
mm
|
3650
|
|
Transport height
|
mm
|
3000
|
|
Weight
|
t
|
16(1±5%)
|
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
