Quick Details
-
Type:
-
water meters
-
Certificate:
-
ISO9001 ISO4064
-
Material:
-
Cast Iron & Brass
-
Product name:
-

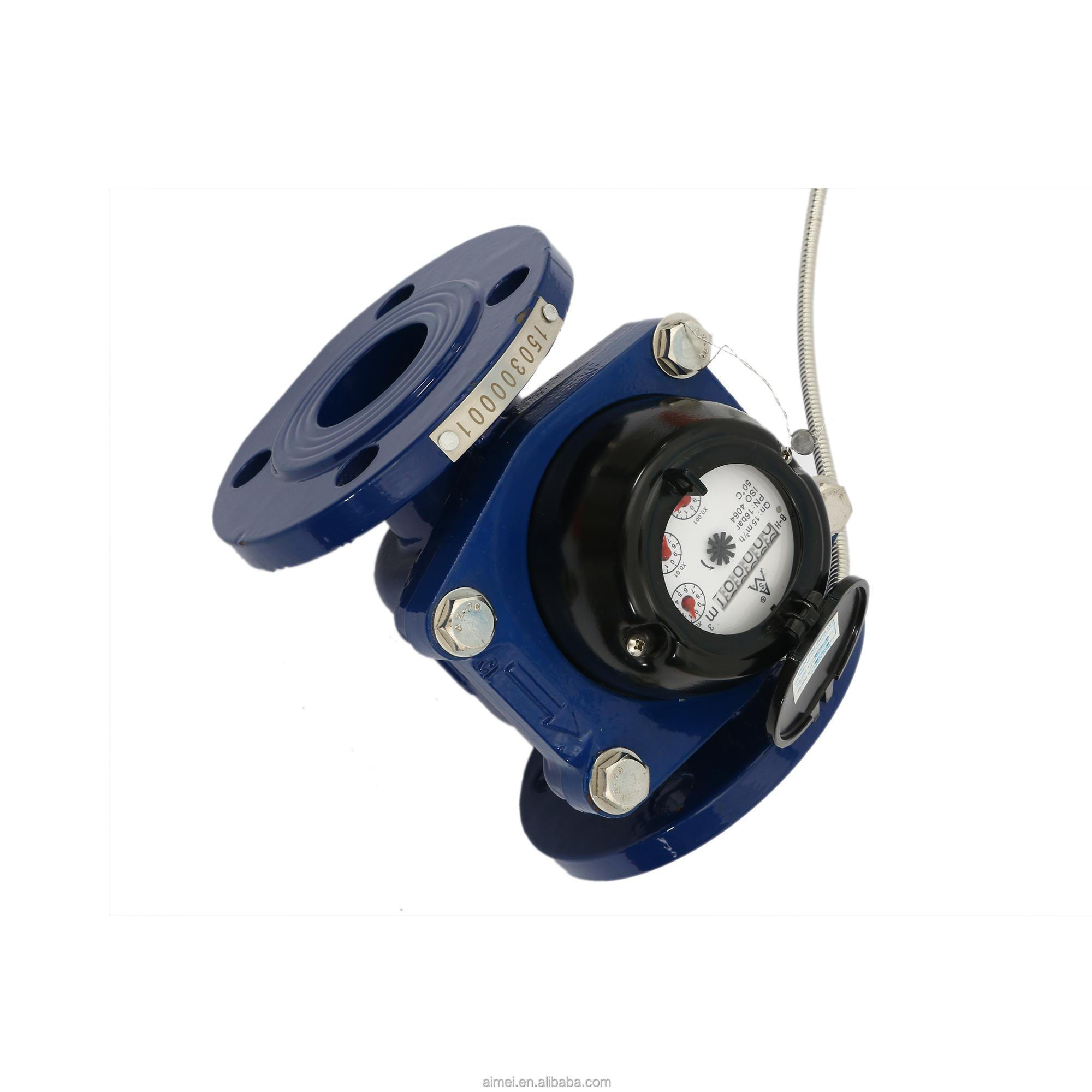

remote reading agriculture Water Meter
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Aimei
-
Model Number:
-
LXXG-50A-300A
-
Type:
-
water meters
-
Certificate:
-
ISO9001 ISO4064
-
Material:
-
Cast Iron & Brass
-
Product name:
-
remote reading agriculture Water Meter
--Measuring the volume of cold (hot) water passing through the pipeline
Feature:
--Removable element structure, easy installation and maintenance;
--Dry-dial, Magnetic drive;
--Large flow capacity, small pressure loss;
--Resist water hummer and pollution;
--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
--Selected high quality materials for steady and reliable characteristic;
--Technical data conform to international standard ISO 4064.
Working condition
Water temperature: 0.1°C~40°C (0.1°C~90°C for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot
|
Type |
Size (mm) |
Class |
q s Overload Flow |
q p Permanent Flow |
q t Transitional Flow |
q min Min. Flow |
Min. Reading |
Max. Reading |
|
m 3 /h |
m 3 |
|||||||
|
LXXG -50A |
50 |
A |
30 |
15 |
4.5 |
1.2 |
0.0002 |
999,999 |
|
B |
3.0 |
0.45 |
||||||
|
LXXG -65A |
65 |
A |
50 |
25 |
7.5 |
2.0 |
0.002 |
999,999 |
|
B |
5 |
0.75 |
||||||
|
LXXG -80A |
80 |
A |
80 |
40 |
12 |
3.2 |
0.002 |
999,999 |
|
B |
8.0 |
1.2 |
||||||
|
LXXG -100A |
100 |
A |
120 |
60 |
18 |
4.8 |
0.002 |
999,999 |
|
B |
12 |
1.8 |
||||||
|
LXXG -125A |
125 |
A |
200 |
100 |
30 |
8 |
0.002 |
999,999 |
|
B |
20 |
3 |
||||||
|
LXXG -150A |
150 |
A |
300 |
150 |
45 |
12 |
0.002 |
999,999 |
|
B |
30 |
4.5 |
||||||
|
LXXG -200A |
200 |
A |
500 |
250 |
75 |
20 |
0.002 |
999,999 |
|
B |
50 |
7.5 |
||||||
|
LXXG -250A |
250 |
A |
800 |
400 |
120 |
32 |
0.02 |
9,999,999 |
|
B |
80 |
12 |
||||||
|
LXXG -300A |
300 |
A |
1200 |
600 |
180 |
48 |
0.02 |
9,999,999 |
