Quick Details
-
Brand Name:
-
KUN MEDICAL
-
Model Number:
-
ZK-LDR-003B
-
Overall length:
-
1850±50mm
-
Width:
-
850±20mm
-
Height adjustable:
-
640-940mm
-
with hidden sewage basin:
-
Yes
-
control type:
-
electrical
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KUN MEDICAL
-
Model Number:
-
ZK-LDR-003B
-
Overall length:
-
1850±50mm
-
Width:
-
850±20mm
-
Height adjustable:
-
640-940mm
-
with hidden sewage basin:
-
Yes
-
control type:
-
electrical

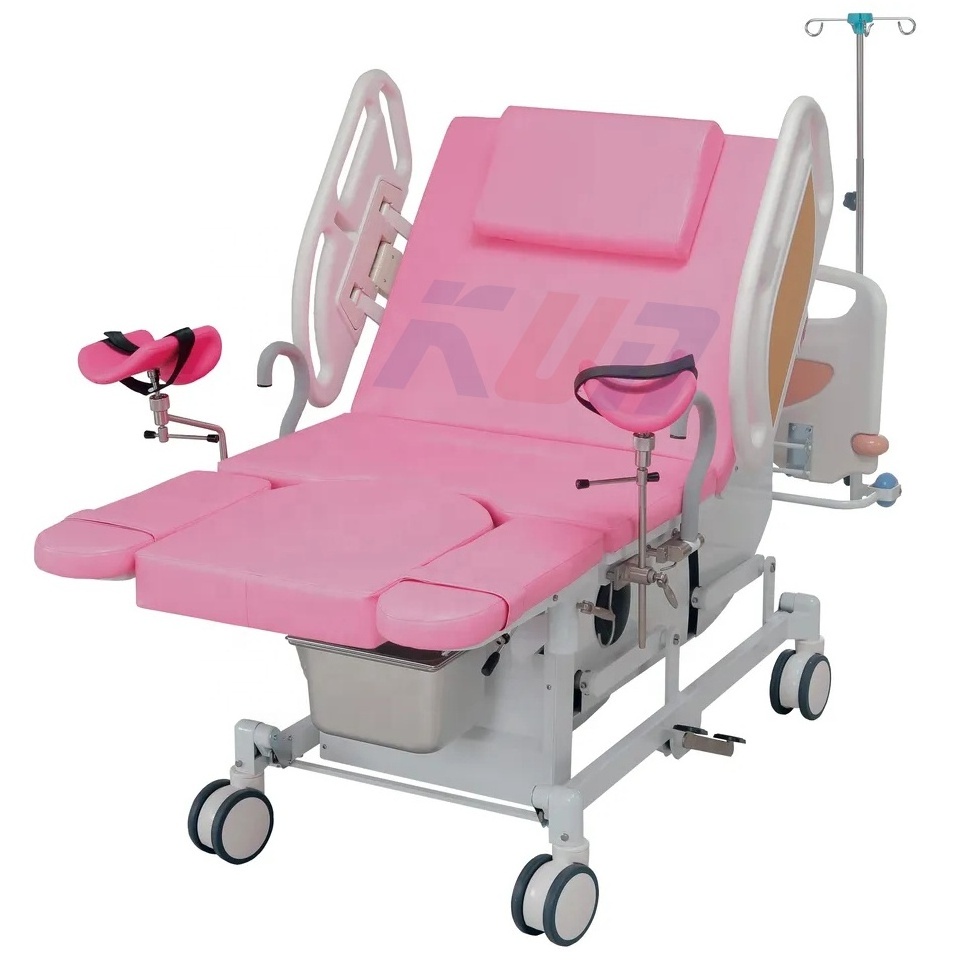

ZK-LDR-003B Reliable Multi-Function Electric O bstetrics B ed
It is designed for various stages in delivering a baby, like expectant mothers, childbirth, and restoration of postpartum.
l High quality ABS engineering plastic bed head board, detachable.
l ABS bed end board, foldaway.
l Bed frame is made of steel, stable and reliable.
l Four 125mm dia. Castors with central locking system
l Using high-quality electric-vat, electricity -save , lower noise, waterproof, long life-span.
l C onsists of two parts: mechanical and electro control system.
l Bed height adjustment , bed trendelenburg & reverse trendelenburg and bed back board adjustment are controlled electrical ly and operated by micro-controller or foot pedal control.
l Bed foot plate is a djustable by pneumatic spring , to achieve the reasonability of the human body , helps the mother’s delivery smoothly;
l With Hidden dirt basin under the bed
l With D etachable auxiliary table , can be adjusted according to clinical needs;
l Leg holder and hand handle s can be into different angels.
l With L ead-acid battery as emergency power supply , can automatically charge . When net power is off . The emergency power source can automatically jump to working condition. With power indication light.
l With brake unlock alarm system.
|
Overall Length |
1850±50mm |
|
Width |
850±20mm |
|
Max Height |
≥940±50mm |
|
Min Height |
640±50mm |
|
Height Adjust able |
≥250mm |
|
Back Section Raised from the horizontal |
≥60° |
|
Leg section opened |
≥90° |
|
Reversed Trendelenburg |
≥2° |
|
Trendelenburg |
≥12° |
|
Safe Working Load |
≥150kg |
|
Guardrail safety work load |
250N |
|
Bed frame (the end of the bed frame) security work load |
225N |
|
Salt water bottle rack safety work load |
50N |
|
Handle safety work load |
294N |
|
Leg support safety work load |
294N |
|
Power |
( AC ) 110V- 220V , 50 -60 Hz |
|
Internal electric source |
( DC ) 24V |
|
Battery capacity |
≥ 2.4AH |
Standard Accessories
|
Bed Cushion |
1 set |
|
ABS Bed side rails |
2 pcs |
|
IV pole stand |
1 pc |
|
Drainage hook |
1 pc |
|
Wire linking hook |
1 pc |
|
foot holder |
2 pcs |
|
handle |
2 pcs |
|
S.S dirty basin |
1 pc |
