Quick Details
-
Model Number:
-
PD-PIR125-Z
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Output:
-
Switching Transducer
-
Power source:
-
100-130VAC 220-240VAC
-
Power frequency:
-
50/60Hz
-
Rated load:
-
800W200W1200W300W
-
Time setting:
-
min: 8sec±3sec max:7min±2min(adjustable)
-
Light-control:
-
<3LUX~2000LUX(adjustable)
-
Detection range:
-
12m Max(<24°C)
-
Detection angle:
-
180° 140°
-
Installation height:
-
>1.8m~3.5m
-
Working temperature:
-
-10°C~40°C
-
Working humidity:
-
<93%RH
Quick Details
-
Use:
-
Auto-switch
-
Mounting Type:
-
wall mounted
-
Description:
-

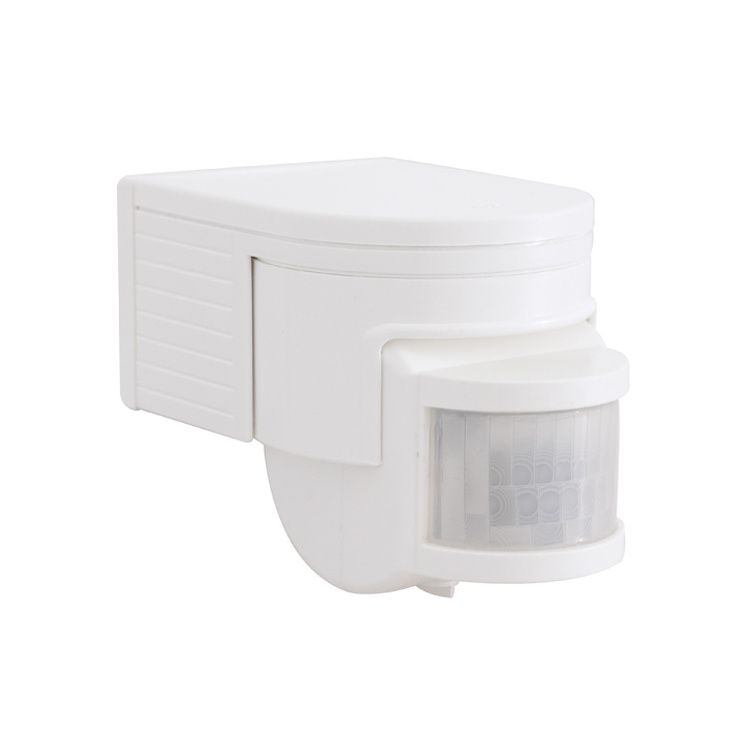

Infrared Sensor Switch, PIR Motion Sensor
-
Model Number:
-
PD-PIR125-Z
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PDLUX
-
Theory:
-
Moving Induction
-
Output:
-
Switching Transducer
-
Power source:
-
100-130VAC 220-240VAC
-
Power frequency:
-
50/60Hz
-
Rated load:
-
800W200W1200W300W
-
Time setting:
-
min: 8sec±3sec max:7min±2min(adjustable)
-
Light-control:
-
<3LUX~2000LUX(adjustable)
-
Detection range:
-
12m Max(<24°C)
-
Detection angle:
-
180° 140°
-
Installation height:
-
>1.8m~3.5m
-
Working temperature:
-
-10°C~40°C
-
Working humidity:
-
<93%RH
Product Description
Specification
|
Power Source
|
100-130V/AC 220-240V/AC
|
|
Power Frequency
|
50/60Hz
|
|
Rated Load
|
1200W Max. (220-240V/AC)
800W Max. (100-130V/AC) |
|
Time Setting
|
10 sec - 12 min (adjustable)
|
|
Detection Range
|
12m Max (22°C)(adjustable)
|
|
Light-control
|
＜10LUX ~ 2000LUX (adjustable)
|
|
Detection Angle
|
140° 180°
|
|
Working Temperature
|
-10℃ ~ +40℃
|
|
Working Humidity
|
<93%RH
|
|
Installation Height
|
1.8m - 2.5m
|
|
Detection Motion Speed
|
0.6 - 1.5m/s
|
