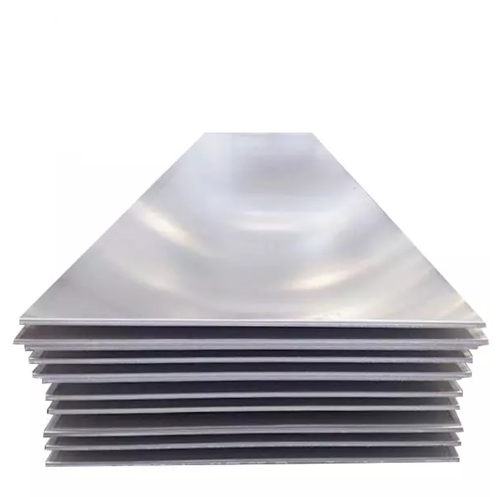

5 Series AL-Mg Alloy 5059 for Ship Plate,LNG Storage Tank,Gas Cylinder,Pressure Vessel

Product Name

5 Series AL-Mg Alloy 5059 for Ship Plate,LNG Storage Tank,Gas Cylinder,Pressure Vessel

Thickness

0.1 to 600mm

Grade

5059

Width

20 to 2650mm

Introduction

5059 aluminum plate belongs to the 5 series AL-Mg alloy, with a low density of only 2.66 g/cm~3, high tensile strength, higher than some low carbon mild steel, and strong resistance to seawater and marine climate corrosion. , and has good welding performance, it is often used in marine engineering. This alloy can be used in ships as small as tens or hundreds of tons, and as large as ships and cruise ships of tens of thousands of tons. The optimal homogenization heat treatment process for 5059 alloy is 460℃×24 h. As the homogenization temperature of the alloy increases, the low melting point second phase quickly dissolves, but an overburned structure appears in the alloy matrix during homogenization at 480°C; when the homogenization temperature is 460°C, after 24 h of heat preservation, the original cast alloy The medium β phase dissolves back to the matrix to a large extent, and the uneven structure and dendrite network structure are basically eliminated. If the holding time is continued, the alloy structure does not change significantly.

Application

Ship plates, LNG storage tanks, gas cylinders, pressure vessels, etc.

Advantage

1. The raw materials are of high quality. We purchase aluminum ingot raw materials from large manufacturers to ensure product quality from the source. 2. Advanced equipment, including "1+1" and "1+4", six-roller cold rolling mill equipment to produce ultra-wide 5059 aluminum plate products 3. Exquisite processing technology. Ruishi Aluminum has more than 20 years of processing experience, mature technology, and products that have passed quality system certification and are trustworthy.

Packaging

1. Clamp paper or film on the aluminum plate to ensure that the surface of the aluminum plate is intact and without scratches; 2. Plastic or kraft paper packaging is used to prevent moisture and rain, ensuring that the aluminum plates are clean and free of dirt during transportation (each package has a moisture-proof desiccant to ensure the product quality of our products in East and South China, where there is more rain); 3. Install wooden pallets and reinforce them with steel strips to avoid collisions during transportation and ensure that the geometric shape of the aluminum plate remains unchanged; 4. Export products are packaged in wooden boxes and pallets with fumigation marks; 5. Packaging according to other packaging requirements of customers;
