* Noth identification distance is far, and the effective visual identification distance is more than 200 meters;
* Strong multi-label identification ability, up to 200 pieces / second;
* Up to 2000 tag data cache capacity, data power loss is not lost;
* Rich wired data interface, support 10M / 100M, adaptive network port (support POE power supply), RS232, RS485, Weigand;
* Wireless data interface supports 4G, WIFI, data transmission, with GPS positioning function;
* Wide voltage power supply, DC 9V~24V;
* Support for command, automatic, trigger card reading and other online and offline working modes;
* Waterproof grade IP65, small and beautiful appearance, convenient installation;
* 24 hours of object temperature monitoring report, motion detection report;
* Support serial port and network port upgrade;
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Qerwin
-
Power Supply:
-
DC 9V-12V (Power Adapter)
-
Product Name:
-
rfid active reader
-
Weight:
-
1.4kg
-
Supporting Card:
-
2.4G active card
-
Application:
-
Access Control
-
Reading Distance:
-
200m
-
Material:
-
ABS,aluminium alloy
-
Type:
-
ACTIVE RFID Reader
Quick Details
-
Frequency:
-
2.4G-2.5Ghz, 2.4-2.5Ghz
-
Protocol:
-
Private Protocol, private protocol
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qerwin
-
Power Supply:
-
DC 9V-12V (Power Adapter)
-
Product Name:
-
rfid active reader
-
Weight:
-
1.4kg
-
Supporting Card:
-
2.4G active card
-
Application:
-
Access Control
-
Reading Distance:
-
200m
-
Material:
-
ABS,aluminium alloy
-
Type:
-
ACTIVE RFID Reader
Product Overview

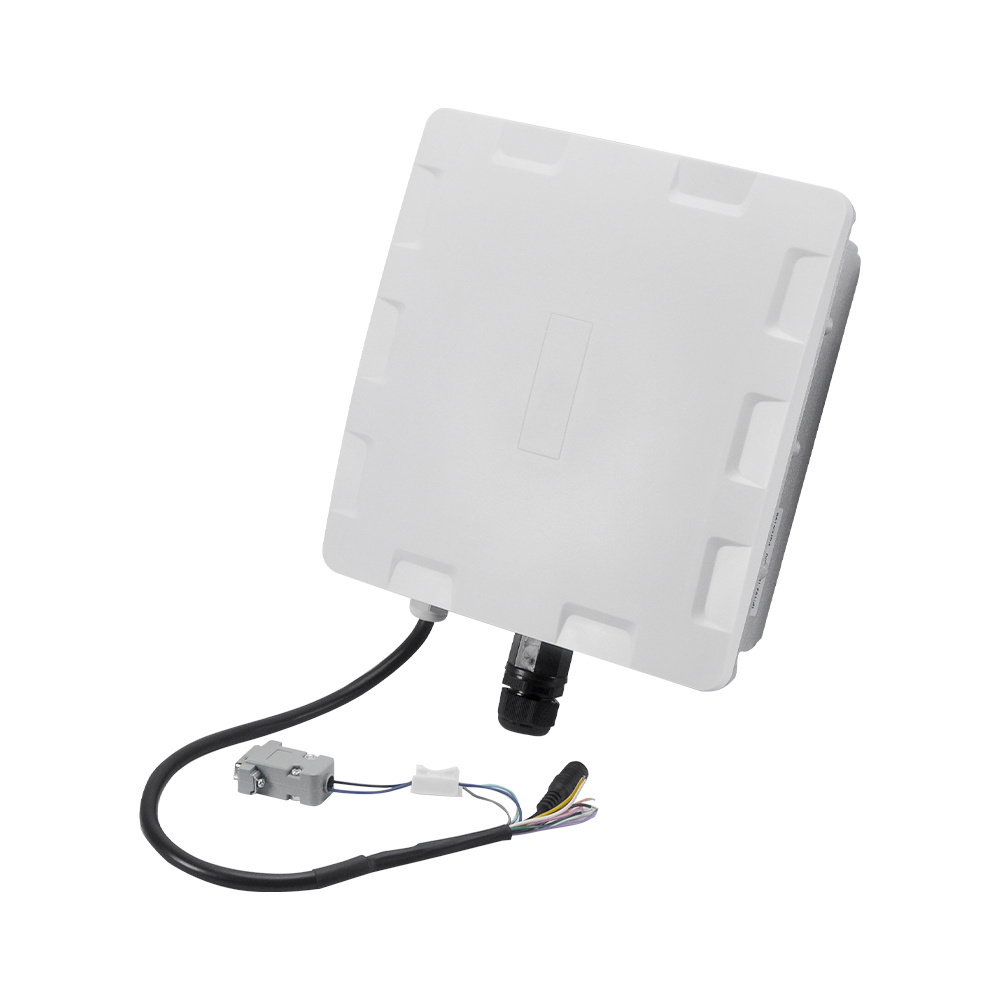

2.4Ghz Active RFID Reader Multiple Reader Controller For Access Control System
2.4GHz omnidirectional reader and writer QW-205, working frequency of 2.45GHz (ISM, frequency band), using high-end RF SOC chip,
integrating advanced defense
The collision algorithm has strong anti-interference, without manual participation; with automatic identification, tracking,
positioning, collection and other functions.
2.4GHz omnidirectional reader QW-205 is very suitable for outdoor application environment, can be widely used in animal husbandry
livestock monitoring, logistics tracking, commodity inventory,
Goods sorting, vehicle management, personnel management, asset management, medical system, cold chain management, electric power
monitoring and production process control and other applications.
integrating advanced defense
The collision algorithm has strong anti-interference, without manual participation; with automatic identification, tracking,
positioning, collection and other functions.
2.4GHz omnidirectional reader QW-205 is very suitable for outdoor application environment, can be widely used in animal husbandry
livestock monitoring, logistics tracking, commodity inventory,
Goods sorting, vehicle management, personnel management, asset management, medical system, cold chain management, electric power
monitoring and production process control and other applications.
Details Images
PRODUCT SPECIFICATIONS
|
RF parameters
|
Working Frequency
|
2.4G-2.5Ghz
|
|
|
Protocol
|
Private Protocol
|
|
|
communication rate
|
1 Mbits / S
|
|
|
Receiving sensitivity
|
-93dBm
|
|
|
antenna pattern
|
Directional
|
|
|
antenna gain
|
4dBi
|
|
|
Identify distance
|
> 200 m
|
|
Communication Interface
|
Cable interface
|
RJ45（POE）
RS232/ RS485 Wiegand26/34 |
|
|
Wireless interface
|
4G,WIFI (optional)
|
|
Electrical
Parameters
|
working voltage
|
DC 9V～24V
|
|
|
Normal current
|
<200mA/DC12V
|
|
|
maximum current
|
<400mA/DC12V
|
|
Physical
Parameters
|
working temperature
|
-20℃ to +60℃
|
|
|
Storage temperature
|
-40℃ to +80℃
|
|
|
Working humidity
|
5% ~ 95% (No condensation)
|
|
|
Overall dimensions (Rx D)
|
225*225*90mm
|
|
|
weight
|
1.4kg
|
|
|
Material
|
ABS,aluminium alloy
|
Application
