Quick Details
-
Rating power:
-
1KW
-
Working temperature:
-
-20~170℃
-
Accuracy:
-
+/-0.05m
-
Cable length:
-
Standard is 5meters (can customized for you)
-
Contact capacity:
-
10A /250VAC
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
Magnetic float level switch
-
Rating current and voltage:
-
10(8A) 250V-10(4A) 380V
-
Rating power:
-
1KW
-
Working temperature:
-
-20~170℃
-
Accuracy:
-
+/-0.05m
-
Cable length:
-
Standard is 5meters (can customized for you)
-
Contact capacity:
-
10A /250VAC

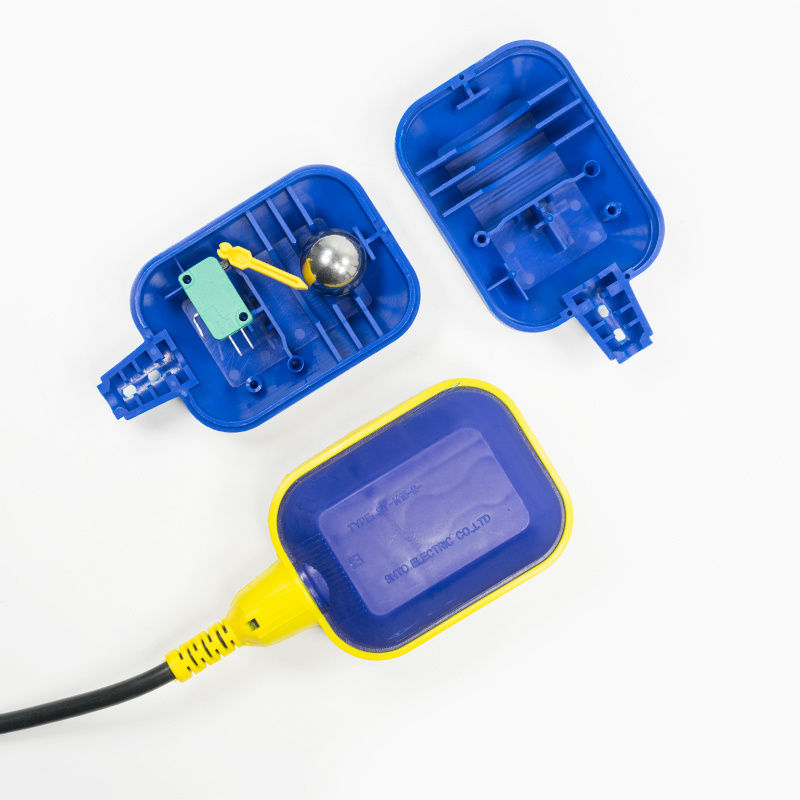

The Ball Float Level Sensor
A.[Feature of Ball Float Level Sensor]
- Good design and strict production technics;
- Adopt stainless steel material,high mechanical strength and good sealing;
- Cable adopt special material, it have high oil,acid,alkali,corrosive resistance.
- The ON or OFF switch control signal is very reliable and stable,without any error;
- Easy to installation,convenient to debug,fast fluctuation shift random to select the control range.
B.[Parameters]
| Ball Float Level Sensor--Basic production Info | |
| Rating current and voltage | 10(8A) 250V-10(4A) 380V; |
| Rating power | 1Kw |
| Working temperature | -20~170℃ |
| Accuracy | +/-0.05m |
| Working pressure | 1 atm |
| Medium | Rinsing;sewage;oil |
| Cable length | Standard is 5meters (can customized for you) |
| Contact capacity | 10A /250VAC |
| High tempeature type | ss304 float ball,mercury switch contact,high flexible silicome cable can reach high temperaturer |
| Normal temperature type | ss304 float ball,reed switch or mercury switch contact CCC certificate high-quality rubber cable |
| It can customized the anti-corrosive stainless float(just for normal temperature type switch) | |
| Power life | 1×100000 times |
| Machine life | 5×100000 times |
C.[Installation]
- Use the black and blue wire.
when the float is on the level surface,the contact is under the obstructed status,when the float is under the water,the contact is turn-on status;
- Use the black and yellow wire
When the float is on the level surface,the contact si turn-on status,when is under the water,the contact is the obstructure status;
- Installation of fixed hammer
The level control height is decided by the cable length of magnetic float type level switch and the position of the hammer;
- The ways of install the hammer
- Displace snap ring of the plastic non-cone terminal,and to the appropriate place on the cable.
- Then let the cable penetrate the terminal of the plastic cone,the snap ring of set on the cable limit the position of the hammer;
- Finally,fixed the cable outside of the container,let the cable connect to control box and avoid using middle joint.if it need joint forbid to put the joint in he water.
