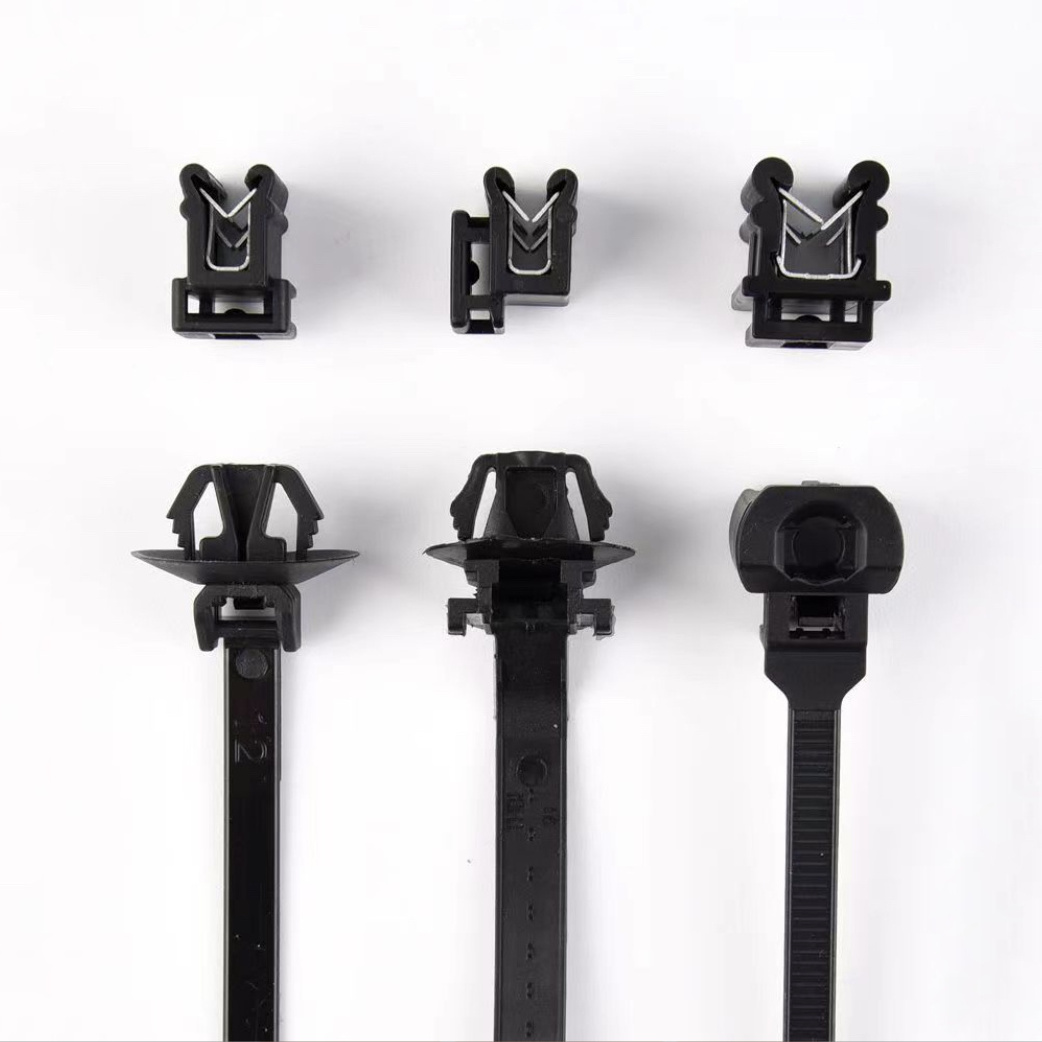

WWC Edge Clip Winged fir tree push mount zip nylon 66 Automotive cable ties

✦ The one-piece head fixing belt is a kind of hosel belt. The disc design of the hosel can increase the stability and reduce the intrusion of dust and water into the aperture of the base plate.

✦ A curved area is added below the tie head to keep the harness on the centerline.

✦ The longitudinal leaf hosel design is suitable for substrates of various thicknesses, or threaded unilateral apertures, enhancing the stability of installing cables, wires and pipelines.

✦ Widely used in various industries, such as automobile manufacturing, aviation manufacturing, home appliances and controller industries. Customized specifications are acceptable.

✦ Material: Nylon 66, flammability rating UL94V2

✦ Color: black, white, other colors can be customized.

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing. Features and Benefits Cable tie head always situated in defined position Easy to assemble without the need for a tool Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water Fir tree foot part can be used for a variety of panel thicknesses Suitable for use within threaded holes

Fir tree foot parts can be used for a variety of panel thicknesses.

✦ Material: Nylon 66 , 94 V-2, agreed by UL, Acid and corrode resisting , insulate, last long and not apt to age

✦ Usage: insert tie to the hole of table and tighten it
