Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BorT
-
Model Number:
-
UL1015
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
-
Reference standard:
-
UL 758,UL1581
-
Quality control:
-
ISO 2015-9001
-
Certification:
-
ROHS/UL/CB/VDE
-
Package:
-
Plastic bag ,Bobbin,coil,Reel,Drum
Quick Details
-
Application:
-
Interal wiring of appliance and equipment
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BorT
-
Model Number:
-
UL1015
-
Colors:
-
Optional
-
Service:
-
ODM,OEM
-
Packing:
-
Roll 305m/Roll ,610m/roll
-
Shipment:
-
Sea/Air/Express
-
Printing:
-
Customize
-
Sample:
-
available
-
Reference standard:
-
UL 758,UL1581
-
Quality control:
-
ISO 2015-9001
-
Certification:
-
ROHS/UL/CB/VDE
-
Package:
-
Plastic bag ,Bobbin,coil,Reel,Drum
Product Description

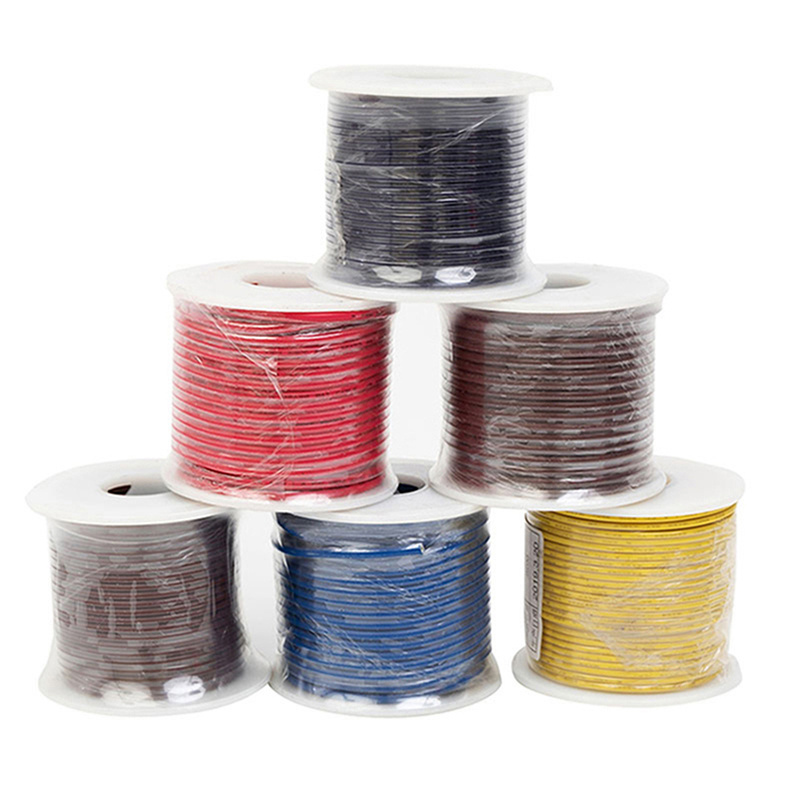

Wholesale Cable UL1015 Single Solid Copper Core Electrical Cable Electric Wire for Lighting
Rated temperature:105℃
Rated voltage:600V
According to:UL Subject758,UL1581,C22.2
Solid or stranded,tinned or bare copper conductor 30--2/0AWG
PVC insulation
Passes UL VW-1 FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
For general purpose internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/mm | |
| 30 | 7/0.1 | 0.79 | 1.90 | 610 | 354.33 |
| 28 | 7/0.127 | 0.79 | 2.00 | 610 | 223.75 |
| 26 | 7/0.16 | 0.79 | 2.05 | 610 | 139.76 |
| 24 | 11/0.16 | 0.79 | 2.20 | 610 | 88.36 |
| 22 | 17/0.16 | 0.79 | 2.40 | 610 | 60.16 |
| 20 | 21/0.178 | 0.79 | 2.55 | 610 | 38.58 |
| 18 | 34/0.178 | 0.79 | 2.75 | 610 | 22.98 |
| 16 | 26/0.254 | 0.79 | 3.10 | 305 | 15.06 |
| 14 | 41/0.254 | 0.79 | 3.50 | 305 | 9.65 |
| 12 | 65/0.254 | 0.79 | 3.95 | 305 | 6.07 |
| 10 | 65/0.320 | 0.79 | 5.00 | 305 | 3.73 |
| 8 | 55/0.45 | 1.20 | 6.50 | 305 | 2.23 |
| 26 | 1/0.404 | 0.79 | 2.00 | 610 | 142.79 |
| 24 | 1/0.511 | 0.79 | 2.10 | 610 | 89.39 |
| 22 | 1/0.643 | 0.79 | 2.25 | 610 | 54.30 |
| 20 | 1/0.813 | 0.79 | 2.40 | 610 | 33.90 |
| 18 | 1/1.024 | 0.79 | 2.65 | 610 | 21.40 |
