Quick Details
-
Injection Rate (g/s):
-
35 g/s
-
Injection Weight (g):
-
45 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
25 mm
-
Distance between Tie Bars:
-
160mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
270 mm
-
Model Number:
-
ZL-3059
-
Brand Name:
-
ZL
-
Power (kW):
-
3 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Product name:
-
Plastic Injection Moulding Machine to Make Power Cable Clamps Cleats
-
Opening Stroke:
-
160
-
Application:
-
Plastic
-
Screw diameter:
-
25MM
-
Screw speed:
-
0~200 rpm
-
Injection pressure:
-
1098 Mpa
-
Turning angle:
-
49 cubic centimeters
-
Clamping force:
-
150KN
Quick Details
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
56 cm³
-
Injection Rate (g/s):
-
35 g/s
-
Injection Weight (g):
-
45 g
-
Screw Speed (rpm):
-
1 - 200 rpm
-
Screw diameter (mm):
-
25 mm
-
Distance between Tie Bars:
-
160mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
270 mm
-
Model Number:
-
ZL-3059
-
Brand Name:
-
ZL
-
Power (kW):
-
3 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Product name:
-
Plastic Injection Moulding Machine to Make Power Cable Clamps Cleats
-
Opening Stroke:
-
160
-
Application:
-
Plastic
-
Screw diameter:
-
25MM
-
Screw speed:
-
0~200 rpm
-
Injection pressure:
-
1098 Mpa
-
Turning angle:
-
49 cubic centimeters
-
Clamping force:
-
150KN

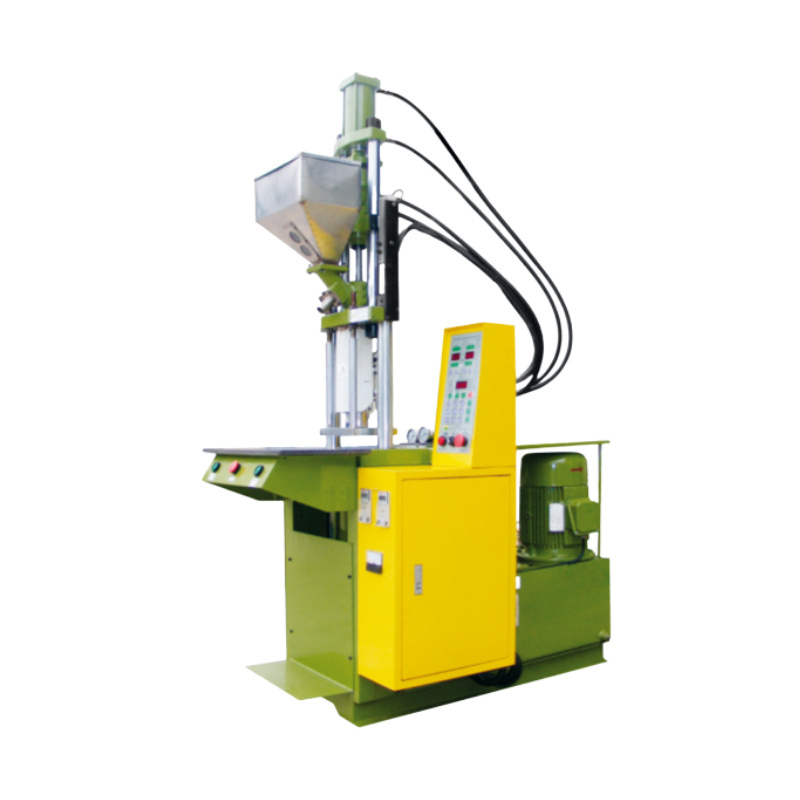

Auto Phone Data Cable Manufacturing Machine Vertical Injection Moulding Machine
1. Vertical mold opening, vertical injection, suitable for insert molding
2. Nitrided steel screw, material tube, high torque hydraulic motor drive, multi-stage injection pressure, good plasticizing performance.
3. Direct pressure mother-mold lock cylinder design, rapid mold clamping, low-pressure safety mold clamping, automatic mold closing, multiple pressure control, high safety and improved mold life.
4. Electrical protection device, no mistakes, maintenance operator safety.
5. Automatic fault display, maintenance is quick and easy.
6. Electronic control and hydraulic use brand-name parts, quiet, precise and durable.
7. Multi-stage temperature control, multi-stage injection pressure, rate of fire, back pressure stepless adjustment, suitable for molding of precision plastic parts.
8. Optional servo energy-saving motor.
9. This machine offers a wide range of programmable functions including automatic inclusion, extraction and fully-automatic production.
10 Two column and four column (option)
Technical parameters:
|
Type |
Model |
Unit |
ZL-3059-20 |
Zl-3059-25 |
ZL-3059-28 |
ZL-3059-30 |
|
Injection system |
Screw diameter |
mm |
20 |
25 |
28 |
30 |
|
Injection pressure |
Kg/cm² |
1715 |
1164 |
816 |
886 |
|
|
Theoretical shot volume |
cm³ |
31 |
49 |
56 |
70 |
|
|
Max.injection weight(PS) |
g |
29 |
60 |
80 |
84 |
|
|
Injection rate |
cm³/sec |
20 |
30 |
30 |
68 |
|
|
Screw stroke |
mm |
100 |
||||
|
Max.screw speed |
rpm |
0-155 |
0-205 |
|||
|
Nozzle contact force |
tons |
2.0 |
2.4 |
|||
|
Nozzle retraction stroke |
mm |
133 |
140 |
165 |
||
|
Number of temperature control |
- |
1+2 |
||||
|
Material hopper capacity |
L |
15 |
15 |
20 |
||
|
Clamping System |
Clamping Force |
tons |
15 |
20 |
30 |
|
|
Opening Force |
tons |
7 |
7 |
6.5 |
||
|
Platen Size |
mm |
450*290 |
460*310 |
520*370 |
||
|
Distance Between Tie Bare |
mm |
280*140 |
303*153 |
350*205 |
||
|
Min. Mold Height |
mm |
140/80 |
160/100 |
160/100 |
||
|
Opening Stroke |
mm |
160 |
180 |
180 |
||
|
Max. Open Daylight |
mm |
300/240 |
340/280 |
340/280 |
||
|
Ejector Force |
tons |
1.3 |
1.3 |
1.3 |
||
|
Ejector Stroke |
mm |
35 |
35 |
35 |
||
|
Sliding System |
Slide Stroke |
mm |
- |
- |
- |
|
|
Max. Mold Weight |
kg |
- |
- |
- |
||
|
Station Clearance |
mm |
- |
- |
- |
||
|
Hydraulic Power System |
Max. Hydraulic Pressure |
Kg/cm²(mPa) |
140 |
140 |
140 |
|
|
Pump Output |
L/min |
23 |
23 |
26 |
||
|
Oil Reservoir Capacity |
L |
80 |
80 |
100 |
||
|
Cooling Water Consumption |
/hr |
400-600 |
400-600 |
400-600 |
||
|
Pump Motor Power |
KW |
3.5 |
4 |
4 |
||
|
Barrel Heating Power |
KW |
2.2 |
2 |
2.7 |
||
|
Total Wattage |
KW |
5.5 |
6 |
6.2 |
||
|
Others |
Machine Weight |
tons |
0.68/0.8 |
0.68/0.8 |
1.1/1.3 |
|
|
Machine Dimensions L*W*H |
mm |
1550*900*2350 |
1400*900*2200 |
1570*950*2350 |
||
|
Shipping Weight |
tons |
0.8/0.9 |
0.88/0.9 |
1.3/1.5 |
||
|
Shipping Measurements L*W*H |
mm |
1750*1050*2400 |
1500*1000*2300 |
1670*1050*2450 |
||
