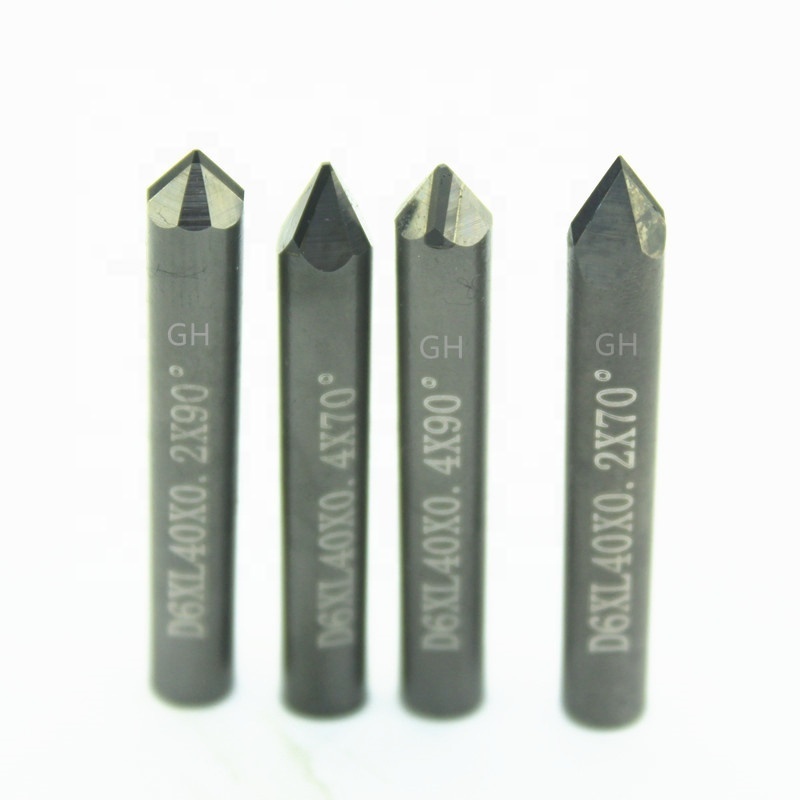

Hot sale CNC 6 angles engraving tools Diamond PCD V type Engraving Cutter for cnc stone carving

Hot sale CNC 6 angles engraving tools Diamond PCD V type Engraving Cutter for cnc stone carving

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: diamond engraving cutter, diamond engraving cutter

Model Number:: V type engraving cutter, V type engraving cutter

Name:: diamond engraving cutter

Usage:: stone, marble ,granite, bluestone, etc

Application:: Internal External Turning Inserts

Advantage:: imported from GE E6 diamond

Product name:: diamond engraving bits for stone engraving

Size:: D6xL40x70/90/45/110/120Angle

Quick Details

Material:: PCD

Coating:: no

Warranty:: stone diamond engraving tool

Place of Origin:: Zhejiang, China

Brand Name:: diamond engraving cutter, diamond engraving cutter

Model Number:: V type engraving cutter, V type engraving cutter

Name:: diamond engraving cutter

Usage:: stone, marble ,granite, bluestone, etc

Application:: Internal External Turning Inserts

Advantage:: imported from GE E6 diamond

Product name:: diamond engraving bits for stone engraving

Size:: D6xL40x70/90/45/110/120Angle

Hot sale CNC 4 angles engraving tools Diamond PCD V type Engraving Cutter for cnc stone carving

Product Description

l PCD

PCD( Polycrystalline Diamond) is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.

The PCD stone engraving tool is used to engrave pictures or characters on granite, marble and ceramic.
Design for CNC Milling Machine, The PCD stone engraving tool is used to engrave pictures or characters on granite, sandstone, marble stone, tile, bluestone, glass, and ceramic.

DRAWING:

PCD Recommended Cutting Condition
Work piece	Cutting Speed	Depth of Cut	Feed Rate
Work piece	(m/min)	(mm)	(mm/rev)
Aluminum(5~8% SI )	350~1600	0.05~2.50	0.10~0.40
Aluminum(8~12% SI )	350~1300	0.05~2.50	0.10~0.40
Aluminum(14~18% SI )	160~800	0.05~2.50	0.05~0.25
Copper	350~1000	0.15~2.50	0.05~0.20
Sintered Carbid	15~25	0.05~0.60	0.10~0.20
Glass Fiber	100~800	0.15~0.50	0.03~0.25
Carbon	160~700	0.15~2.50	0.15~0.40
High Aluminum	70~250	0.05~1.50	0.03~0.15
Ceramics	70~250	0.05~1.50	0.03~0.15
Wood	1000-2500	0.2~5.0	010~0.50

Materials to be Processed		Products
Nonferrous Metal	Aluminum, Aluminum Alloy	Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles.
		Tank body, shell and compressor parts for airplanes and electro mechanical products.
		Precision machinery parts for cameras, duplicators and metrical instruments.
		Parts for pump body and oil press.
	Copper, Copper Alloy	Axle, bearing bush, bearing and pump body for internal combustion engines and ships.
		Parts for various instruments, dynamo commutators, printed boards and electronic apparatus.
		Bearing, bearing bush, valve and shell body.
	Tungsten Carbide	Sinter such as valve seat and cylinder, and semi-finished sinter.
	Others	Various nonferrous metal parts such as magnesium and zinc.
Nonmetal	Wood	Hardwood, artificial board, artificial abrasion resistant fiberboard.
	Reinforced Plastic	Glass fiber and carbon fiber reinforced plastic.
	Rubber	Roller for paper and rubber ring.
	Graphite	Carbon rod.
	Ceramic	Sinter such as sealing ring and plunger piston, and semi-finished sinter.
