Quick Details
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-300WSD
-
Beam Angle(°):
-
60/90/60*150
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC 100-277V
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-35 - 50 to
Quick Details
-
Lamp Luminous Flux(lm):
-
39000
-
Warranty(Year):
-
5-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-300WSD
-
Beam Angle(°):
-
60/90/60*150
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC 100-277V
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-35 - 50 to

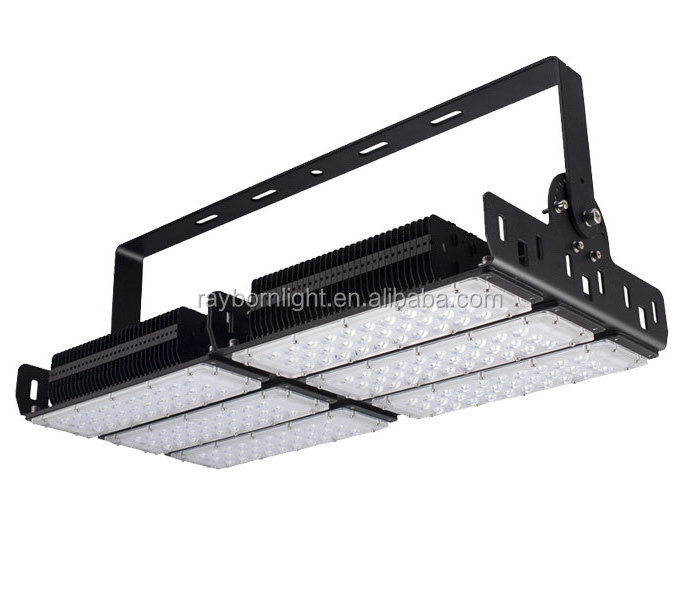

300W Narrow Beam Angle LED Flood Light with CE Rosh certification SMD IP65 Waterproof LED Flood Light
Specifications of 300W Flood Light LED :
| 300W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-300WSD | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | > 0.98 | ||
| Power Efficiency: | > 92% | ||
| Lamp Driver | Meanwell Driver | ||
| LED Chip: | SMD 3030 LED | ||
| LED Power | 300W | ||
| LED QTY: | 288pcs | ||
| LED Working Voltage: | DC36 ~42V | ||
| System Consumption: | 200W | ||
| LED Luminous Flux | Warm White | 29000LM | |
| Pure White | 30000LM | ||
| Cool White | 30500LM | ||
| Viewing Angle: | 60/90/60*150° | ||
| Illuminance Uniformity: | > 0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 5000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra > 80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+The secondary light distribution lens | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –35 ℃ ~55 ℃ | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm² three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| The color of the lamp shell | Black | ||
| Size: | 598*283*130mm | ||
Advantages of SD LED Flood Lights:
Features of Outdoor Flood light LED :
Installation Information of Flood LED Light :
1.Check all the parts and accessories of LED flood lights;
2.Must cut off the power supply before installation;
3.Make sure the light is fixed tightly to the surface of place for installation ;
4.Connect the power line of light with power supply, then switch on the power.
5.When the flood lamp is working, it must be kept vertical downward.
Applications of IP65 Flood Light LED :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
Strict Tests of industrial SMD Waterproof IP65 flood LED Lights :
Before shipping, all our LED flood lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
We have CE,RoHS,SAA certifications and so on.So you can rest assured to use our products.
