Quick Details
-
Max. Loading Capacity:
-
60L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Darui
-
Voltage:
-
380V/220V
-
Power (kW):
-
7 kW
Quick Details
-
Barrel Volume (L):
-
500
-
Max. Loading Volume (L):
-
300 L
-
Range of Spindle Speed(r.p.m):
-
0 - 45 r.p.m
-
Max. Loading Capacity:
-
60L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Darui
-
Voltage:
-
380V/220V
-
Power (kW):
-
7 kW
Product Description

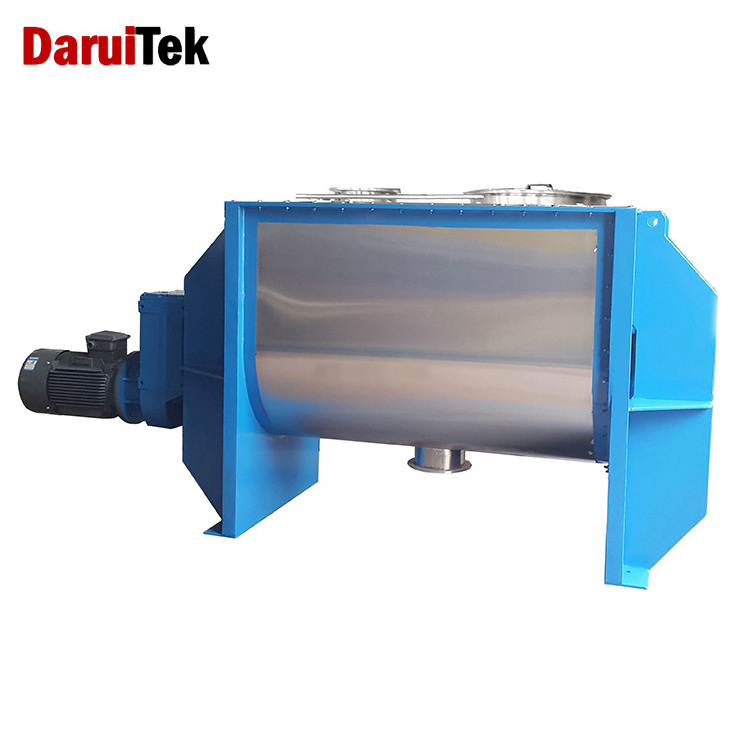

This machine is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the center front two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to form convection mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
Features：
Big coefficient of loading, small occupied area.
Application
The ribbon mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Specification
|
Model
|
Total volume
|
Loading volume
|
Motor power
|
Weight
|
|
WLDH-100
|
100L
|
30-60L
|
1.5-4KW
|
320KG
|
|
WLDH-300
|
300L
|
100-180L
|
3-5.5KW
|
510KG
|
|
WLDH-500
|
500L
|
200-300L
|
4-11LW
|
920KG
|
|
WLDH-1000
|
1000L
|
400-600L
|
7.5-15KW
|
1450KG
|
|
WLDH-1500
|
1500L
|
600-900L
|
11-18.5KW
|
1950KG
|
|
WLDH-2000
|
2000L
|
800-1200L
|
18.5-30KW
|
3160KG
|
|
WLDH-3000
|
3000L
|
1200-1800L
|
18.5-30KW
|
3300KG
|
|
WLDH-4000
|
4000L
|
1600-2400L
|
22-37KW
|
3620KG
|
|
WLDH-6000
|
6000L
|
2400-3600L
|
37-55KW
|
5400KG
|
|
WLDH-8000
|
8000L
|
3200-4800L
|
37-55KW
|
6880KG
|
|
WLDH-10000
|
10000L
|
4000-6000L
|
45-75KW
|
7900KG
|
Advantages
1. The bucket and paddle are all made of stainless steel, which is easy to clean and avoids corrosion.
2. Two-way S-shaped propeller blades, the material is mixed quickly and evenly without dead ends, and scrapers can be installed on the spiral belt.
3. The special design of the protective door makes it easy to maintain the equipment, and it is specially equipped with a man ladder to make feeding more convenient (a hoist can also be equipped according to customer needs).
4. The visible window on the top is easy to observe the mixing situation.
5. The overturning mixer is equipped with a cylinder overturning function, which is convenient for users to discharge and clean during use.
5. The overturning mixer is equipped with a cylinder overturning function, which is convenient for users to discharge and clean during use.
Details Images
High quality famous brand motor
Operation panel easy to operate
Discharge butterfly valve
Stainless steel ribbon easy to clean
