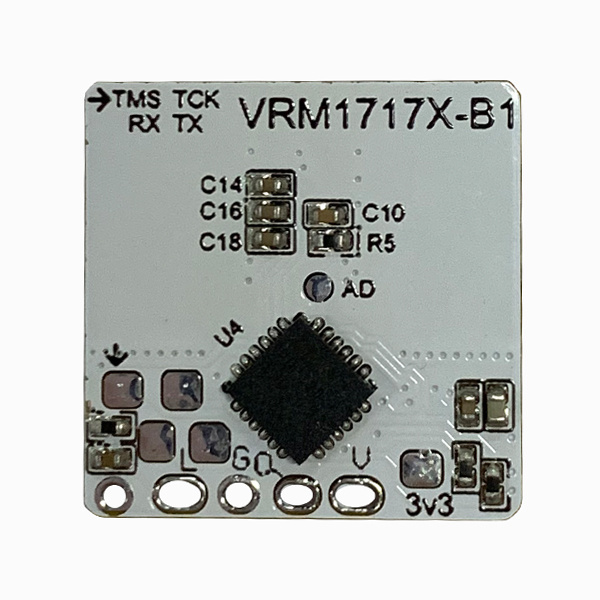

The size of VRM1717X-B is 17mm*17mm*3mm. It is a micro/motion sensing module designed based on X-band radar chip, with a center frequency of 10.525GHz. This product has the advantages of small size, no through the wall, anti-interference, noise and high harmonic suppression effect, high stability and consistency.
This product is suitable for embedded hidden installation, which is not affected by temperature/humidity, oil smoke, water mist, etc., and can be widely used in intelligent lighting, security, home and other areas requiring automatic induction control.
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Ceiling mounting
-
Description:
-
10G microwave radar module, radar sensor module
-
Manufacturing Date Code:
-
standard
-
Model Number:
-
VRM1717X-B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VILLON
-
Theory:
-
Doppler principle
-
Output:
-
3.3V, 3.3V
-
Product name:
-
VRM1717X-B
-
Detection Range:
-
ceiling:radius 3~6m;wall:0.3~12m
-
Application:
-
intelligent lighting
-
Installation Height:
-
ceiling:3m;wall:1m
-
Working temperature:
-
-20℃~+70°℃
-
Size:
-
17mm*17mm*3mm
-
Power Frequency:
-
10.525GHz
-
Working voltage:
-
3.3~24V
-
MOQ:
-
1000
Quick Details
-
Use:
-
intelligent lighting
-
Series:
-
MMwave Radar Sensor Module
-
Features:
-
Can pass FCC/CE/KC
-
Mounting Type:
-
Ceiling mounting
-
Description:
-
10G microwave radar module, radar sensor module
-
Manufacturing Date Code:
-
standard
-
Model Number:
-
VRM1717X-B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VILLON
-
Theory:
-
Doppler principle
-
Output:
-
3.3V, 3.3V
-
Product name:
-
VRM1717X-B
-
Detection Range:
-
ceiling:radius 3~6m;wall:0.3~12m
-
Application:
-
intelligent lighting
-
Installation Height:
-
ceiling:3m;wall:1m
-
Working temperature:
-
-20℃~+70°℃
-
Size:
-
17mm*17mm*3mm
-
Power Frequency:
-
10.525GHz
-
Working voltage:
-
3.3~24V
-
MOQ:
-
1000
Product Description
Range of perception：
The perceived distance of the product：
ceiling:radius 3~6m;
wall:0.3~12m
The perceived Angle is 100°±10°.
• Test results may vary with different test environments or moving targets;
• Metal shell will shield radar electromagnetic wave, affecting the perceived distance;
•
The above test results are obtained at the standard test site. For specific test environment and conditions, you can consult relevant technical personnel.
Product Parameters
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
VILLON
|
|
Model Number
|
VRM1717X-B
|
|
Usage
|
Motion perception
|
|
Size
|
17mm*17mm*3mm
|
|
Sensing Range
|
ceiling:radius 3~6m;
wall:0.3~12m |
|
Product name
|
MMwave radar sensor module
|
|
Transmit frequency
|
10.525GHz
|
|
Input voltage
|
3.3-24V
|
|
Output voltage
|
3.3V
|
Application Scenario
Intelligent Lighting
Intelligent Security
Intelligent Care
Smart Pet Feeding Machine
Smart Home
Smart Sanitary Ware
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
