Quick Details
-
Voltage:
-
380V, 50HZ, AC/380V/50HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JINGLIN
-
Weight:
-
200 KG
-
Certification:
-
ISO9001:2008, CE certification
-
Power:
-
1.5KW-2.0KW
-
Power supply:
-
3 phase 5 wires
-
Wrapping material:
-
compound paper tape,stretch film,anti-rust tape and so on
-
Brand name:
-
JINGLIN
-
Ring speed:
-
app. 80r/min
-
Material ID:
-
55mm
-
Cutting mode:
-
Auto or Manual
Quick Details
-
Packaging Type:
-
Cartons, Film, wooden case
-
Packaging Material:
-
Paper, PE film, PVC film, Knit belt, Compound paper, crepe paper and etc.
-
Driven Type:
-
Electric
-
Voltage:
-
380V, 50HZ, AC/380V/50HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JINGLIN
-
Weight:
-
200 KG
-
Certification:
-
ISO9001:2008, CE certification
-
Power:
-
1.5KW-2.0KW
-
Power supply:
-
3 phase 5 wires
-
Wrapping material:
-
compound paper tape,stretch film,anti-rust tape and so on
-
Brand name:
-
JINGLIN
-
Ring speed:
-
app. 80r/min
-
Material ID:
-
55mm
-
Cutting mode:
-
Auto or Manual

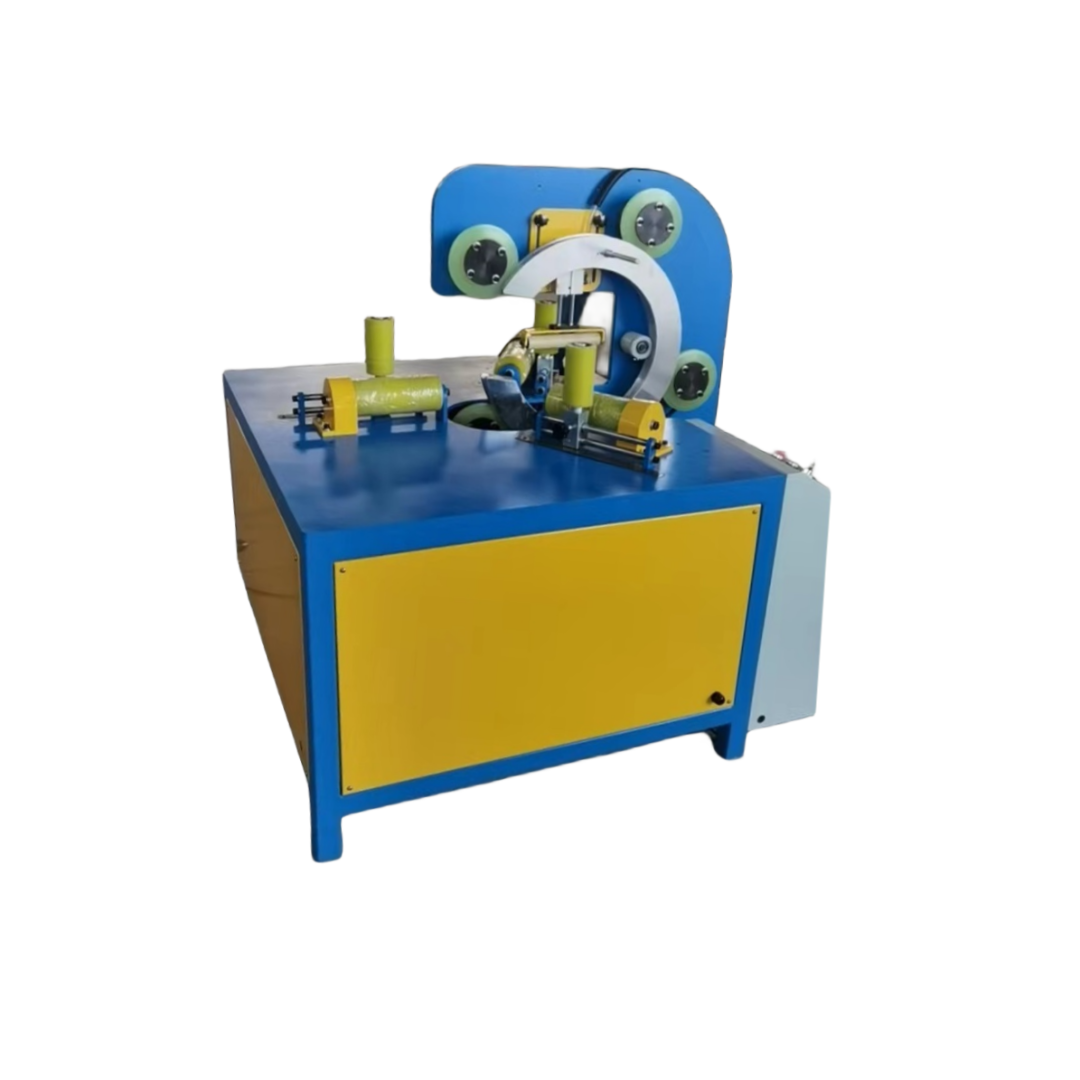

Spiral hose coil packing machine, pipe coil wrapping machine
MACHINE APPLICATION:
horizontal Coil and hose wrapping machine is particularly designed for realize tight and close packing needs for hose coils,
pipe coils, and other coiled objects horizontally.
The wrapped hose coils are perfectly sealed and looks tidy and beautiful for storage, transportation and market.
Easy operation, low energy and material consumption,
but with high packing efficiency and few labor cost.
BASIC FEATURES:
- The hose packing machine is in h orizontal structure with a working table convenient for manual handling .
- S uitable for pack light coils which are easy to load and offload by manual.
- O verlapping rate and film tension able to be adjusted according to needs.
- Different packing material can be chose.
- Indicat ion lights alarm automatically when trouble appears .
- The carrier rollers wrapped with polyurethane to protect the product surface .
- Safe fence for turning parts ensure safe operation.
- Automatic material feeding and cutting is available for choose .
- The main wrapper engine can be designed moveable for convenient loading of heavy coils.
- Conveyors can be equipped for automatic operation.
MAIN PARAMETERS:
|
ITEMS |
CW500 |
CW600 |
|
Coil height |
≤200mm |
≤300mm |
|
Coil OD |
300-500mm |
300-600mm |
|
Coil ID |
≥200mm |
≥250mm |
|
R ing speed |
About 20-90r/min |
About 20-90r/min |
|
Overlap ratio |
2 0%- 9 0% adjustable |
2 0%- 9 0% adjustable |
|
Material |
Woven plastic tape/stretch film/compound paper & etc. W:100mm OD:≤300mm ID:55mm |
Woven plastic tape/stretch film/compound paper & etc. W:100mm OD:≤300mm ID:55mm |
|
O utput |
About 1.0kw |
About 1.5kw |
|
Power voltage |
380V/50Hz /3 phase |
380V/50Hz /3 phase |
|
Synchronous wrapping system |
Optional |
Optional |
|
Automatic mechanical hand |
Optional |
Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
