IDEC CECC approval APEM toggle switch 12146AD2K

IDEC CECC approval APEM toggle switch 12146AD2K

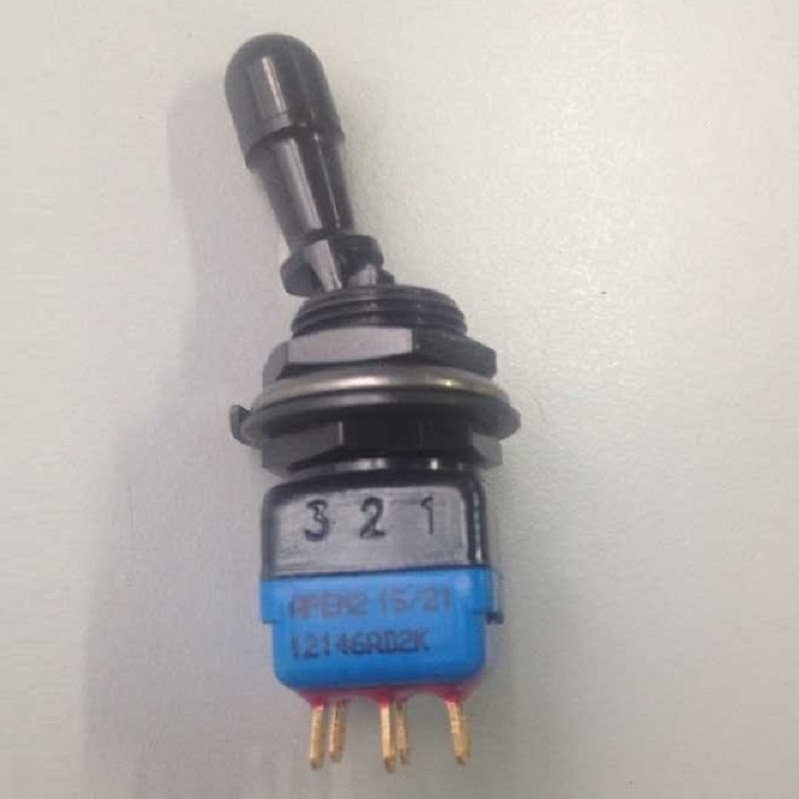

DPDT; ON-ON ; 12146AD2GK-2V
Toggle switches specially manufactured for defense, telecommunications and other industrial applications. 1, 2, 3 and 4 pole configurations, silver, gold-plated silver or solid gold rivet contacts.
Several front panel sealing options.
Bright chrome, satin chrome or matt black finish.
CECC approved. Several locking lever options.
Main features
Approvals: CECC 96201-005, CECC 96201-008, meeting the requirements of MIL standard (MIL 3950)
Robust switches for high specification environments
Toggle action on 2-position models giving smooth mechanical operation
Plastic material with high insulation resistance
Several front panel sealing options
Several locking lever options
Bright chrome, satin chrome or matt black finish
Upon request, each individual switch can be submitted to a low-level run-in test of 50 or 250 cycles to ensure suitability for special applications requiring a very high level of reliability (military, space, etc.).
General specification
Torque:1.50 Nm (1.10 Ft.lb) max. applied between the 2 nuts
Standard panel thickness: 4.5 mm (.177) max.
Panel cut diameter : 12 mm
Environmental specifications
Operating temperature : -40 °C to +85 °C (-40 °F to 185 °F)
Electrical specifications
Max. current/voltage rating with resistive load:
- silver contacts (A-AD2-X780): 4 A 30 VDC
- gold contacts (D): 100 mA 30 VDC
Minimum load: AD2-X780-D contacts: 10 mA 50 mV, 10 μA 5 V min.
Initial contact resistance: 10 mΩ max.
Insulation resistance: 1.000 MΩ min. at 500 VDC
Dielectric strength:
1,000 Vrms 50 Hz min. between terminals
2,000 Vrms 50 Hz min. between poles and between terminals and frame
Contact bounce: 2 ms max.
Materials
Case: diallylphthalate (DAP)
Actuator: brass, chrome plated
Bushing: brass, nickel plated
Housing: brass, nickel plated
Contacts
A: silver
AD2: gold plated silver (2 microns gold)
X780: solid rivet - gold plated silver/nickel alloy
D: solid gold rivet
X910: silver/nickel alloy
Terminal seal: epoxy
AD2 and X780 contacts can be used for high-level applications. In this case, the gold layer is considered only as a protection against oxidation during storage.
12144AD2GK; 12144AD2GK-2V; 12146AD2GK; 12146AD2GK-2v; 12147AD2GK; 12147AD2GK-2V;
12144; DPDT; ON-ON-ON
12146; DPDT; ON-ON
12156AD2GK; 3P
12147; DPDT; MOM-OFF-MOM
12149; DPDT; ON-OFF-ON
12156; 12157; 12159; 3P
12166; 12167; 12169;

12146AD2X545 ;
12146AD2X408 ;
12146AD2KX545 ;
12146AD2KCECC ;
12146AD2K-2VX545 ;
12146AD2K-2V ;
12146AD2K-1V ;
12146AD2K ;
12146AD2GX408 ;
12146AD2GKCECC ;
12146AD2GK-2V ;
12146AD2GK-1V ;
12146AD2GK-17 ;
12146AD2GK-12 ;
12146AD2GK ;
12146AD2G-2VX408 ;
12146AD2G-2V ;
12146AD2G-1VX408 ;
12146AD2G-1V ;
12146AD2G-18VX408 ;
12146AD2G-12X408 ;
12146AD2G-038-1VX408 ;
12146AD2G ;
12146AD2-2VX545 ;
12146AD2-2VX408 ;
12146AD2-2V ;
12146AD2-1VX545 ;
12146AD2-1VX408 ;
12146AD2-1V ;
12146AD2-12X408 ;
12146AD2 ;
