Quick Details
-
Brand Name:
-
DRICK
-
Model Number:
-
DRK101
-
Accuracy:
-
higher than 0.5 grade
-
Resolution:
-
0.001mm
-
Test speed:
-
1-500m
-
Sample quantity:
-
1
-
Sample width:
-
30 mm(standard)
-
Route:
-
400 mm(customizable)
-
Application:
-
tensile
Quick Details
-
Warranty:
-
1 year, 12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DRICK
-
Model Number:
-
DRK101
-
Accuracy:
-
higher than 0.5 grade
-
Resolution:
-
0.001mm
-
Test speed:
-
1-500m
-
Sample quantity:
-
1
-
Sample width:
-
30 mm(standard)
-
Route:
-
400 mm(customizable)
-
Application:
-
tensile
Product Description

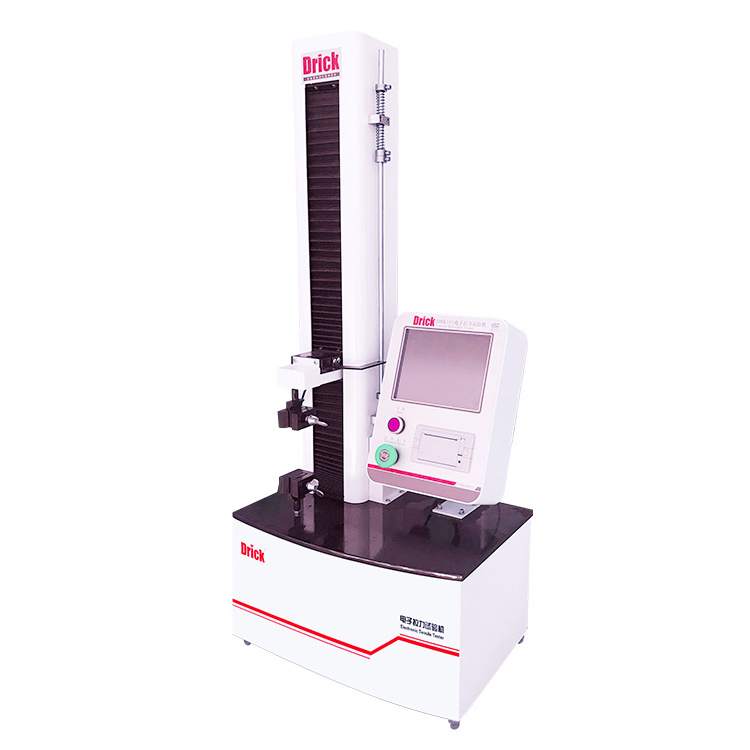

DRK101 T
ensile Strength Tester
Product Introduction
Factory direct supply: cable tester
is designed adopting modern mechanical design concept and human body engineering design criterion with advanced microcomputer processing technology .It has a novel design, excellent performance, and beautiful appearance.
Product Features
1. Transmission mechanism uses ball screw, making it stable and accurate. Adopt imported servo motor, low noise, the control precision.
2. LED display; Real-time display force-time, force – distortion, force - displacement, etc. Latest software with the function of real-time display tensile curve; Instrument has powerful ability to display, analyze and manage data.
3. Adopt the modular size printer, convenient installation, low failure; thermal printers
4. Getting test results directly : At the completion of a set of tests, it can easily display measurement result and print our statistical report, including the average value, standard deviation and coefficient of variation.
5. High degree of automation: instrument selecting advanced devices; microcomputer information sensing, data processing and action control, automatic reset, data memory, overload protection, etc.
6. Multi-function, flexible configuration: The instrument is mainly used for plastic film but it can be widely used for other materials, such as paper, chemical fiber, metal wire, metal foil, and so on.
Technical Standard
This machine is designed and manufactured according to GB/T 12914-1991, and its every capability conforms to relative test standards such as GB 13022-91,GB/T1040-92,GB2792-81,GB/T 14344-9,GB/T 2191-95,QB/T 2171-95.
Product Parameters
Specification：100N 500N 1000N 5000N(optional)
Accuracy：
Resolution：
0.001mm
Test speed：1-500m
Sample quantity：1
Sample width：30 mm(standard) 50 mm(optional)
Specimen clamping：manual
Route：400 mm(customizable)
Dimension：500mm(L)×300mm(W)×1150mm(H)
Power：AC 220V 50Hz
|
Specification
|
100N 500N 1000N 5000N(optional)
|
|
Accuracy
|
higher than 0.5 grade
|
|
Resolution
|
0.001mm
|
|
Test speed
|
1-500m
|
|
Sample quantity
|
1
|
|
Sample width
|
30 mm(standard) 50 mm(optional)
|
|
Specimen clamping
|
manual
|
|
Route
|
400 mm(customizable)
|
|
Dimension
|
500mm(L)×300mm(W)×1150mm(H)
|
|
Power
|
AC 220V 50Hz
|
