Quick Details
-
Brand Name:
-
LDSOLAR
-
Model Number:
-
OD2440S
-
Work Time (h):
-
Depend On Sun Duration
-
Max PV Power:
-
2600W
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE ROHS IEC
-
Warranty:
-
1.5 Years
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
-
Display:
-
LCD Screen
-
System voltage:
-
12v/24v/48v Automatic Recognition
-
Rated Current:
-
40A
-
Control Mode:
-
3 Stage PWM Charge Mode
-
Function:
-
Light + Time Control
-
OEM:
-
Accepted
-
USB output:
-
5VDC/2.4A(Total)
-
Self-consumption:
-
10mA
-
Rated charge current:
-
10A/20A/30A/40A/50A/60A
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
LDSOLAR
-
Model Number:
-
OD2440S
-
Work Time (h):
-
Depend On Sun Duration
-
Max PV Power:
-
2600W
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE ROHS IEC
-
Warranty:
-
1.5 Years
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
-
Display:
-
LCD Screen
-
System voltage:
-
12v/24v/48v Automatic Recognition
-
Rated Current:
-
40A
-
Control Mode:
-
3 Stage PWM Charge Mode
-
Function:
-
Light + Time Control
-
OEM:
-
Accepted
-
USB output:
-
5VDC/2.4A(Total)
-
Self-consumption:
-
10mA
-
Rated charge current:
-
10A/20A/30A/40A/50A/60A
Products Description

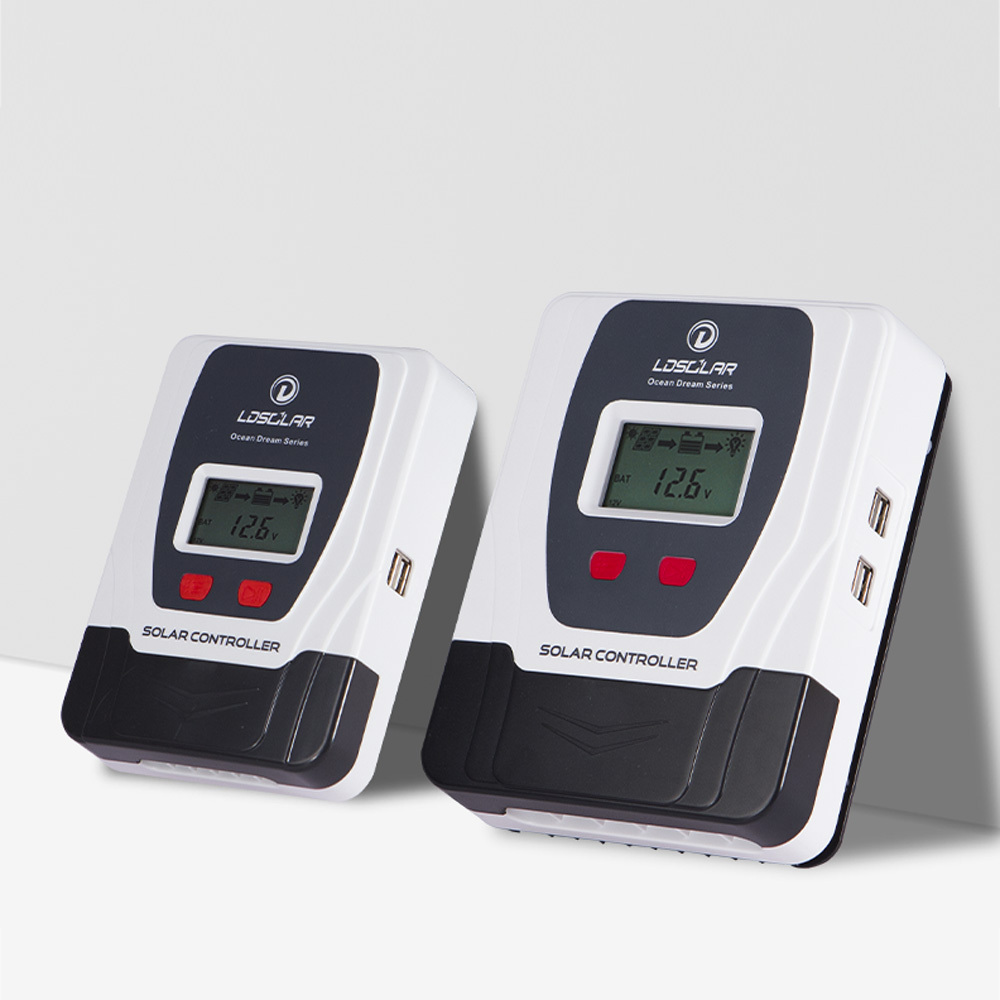

Ocean Dream Series
Ocean Dream Series (OD in short) is our newest designed PWM solar controllers. Its specialty lies in the inner 32 bits CPU, Which enables the controllers to work faster and more stable. It built 4USB port and a screw driver inside.Beside, Our unique black & Red big terminals design facilitate your connection in real application. The white frosted plastic shell is very natural no matter where it is placed in your home or RV.
Details Image And Packing list
Product Paramenters
|
Model
|
Charging Current
|
Discharging Current
|
Terminals
|
Net Weight
|
Overal dimension
|
|
OD2410C
|
10A
|
10A
|
10mm² /6AWG
|
225g
|
165x120x39.4mm
|
|
OD2420C
|
20A
|
20A
|
10mm² /6AWG
|
350g
|
165x120x39.4mm
|
|
OD2430C
|
30A
|
20A
|
10mm² /6AWG
|
380g
|
165x120x39.4mm
|
|
OD2430S
|
30A
|
30A
|
16mm² /8AWG
|
480g
|
170x130x50mm
|
|
OD2440S
|
40A
|
40A
|
16mm² /8AWG
|
520g
|
170x130x50mm
|
|
OD2450S
|
50A
|
50A
|
25mm² /8AWG
|
690g
|
190x145x55mm
|
|
OD2460S
|
60A
|
60A
|
25mm² /8AWG
|
780g
|
190x145x55mm
|
|
OD4830S
|
30A
|
30A
|
16mm² /8AWG
|
500g
|
170x130x50mm
|
|
OD4840S
|
40A
|
40A
|
16mm² /8AWG
|
540g
|
170x130x50mm
|
|
OD4850S
|
50A
|
50A
|
25mm² /8AWG
|
710g
|
190x145x56mm
|
|
OD4860S
|
60A
|
60A
|
25mm² /8AWG
|
800g
|
190x145x56mm
|
|
Model
|
OD series
|
|
|
|
|
||||
|
Self-consumption
|
<10mA
|
|
|
|
|
||||
|
Battery type
|
Sealed(Default)/Gel/Flood/Lithium
|
|
|
|
|
||||
|
LVD※*
|
11.0V ADJ 9V...12V ; x2/24V ; x4/48V
|
|
|
|
|
||||
|
LVR※*
|
12.6V ADJ 11V...13.5V ；x2/24V ; x4/48V
|
|
|
|
|
||||
|
Float Voltage※*
|
13.8V ADJ 13V... 15V ; x2/24V ; M/48V
|
|
|
|
|
||||
|
Boost Voltage※*
|
14.4V ADJ 13V...17V ；x2/24 ; x4/48V
|
|
|
|
|
||||
|
Battery Over Voltage ※*
|
16.5V ; x2/24V ; x4/48V
|
|
|
|
|
||||
|
Reverse Connection Protection
|
yes
|
|
|
|
|
||||
|
Load Over Current Protection
|
Yes, each 30s auto restart again
|
|
|
|
|
||||
|
Controller Over Temperature
|
Yes
|
|
|
|
|
||||
|
Charging Type
|
PWM
|
|
|
|
|
||||
|
Charge circuit voltage drop
|
<=0.25V
|
|
|
|
|
||||
|
Discharge circuit voltage drop
|
<=0.1V
|
|
|
|
|
||||
|
Temperature Consumption#
|
For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V
|
|
|
|
|
||||
|
Relative humidity
|
≤95%, N.C.
|
|
|
|
|
||||
|
WorkingTemperature
|
-20°C~+55°C℃(Product can work continuously at full load)
|
|
|
|
|
||||
|
LCD temperature range
|
-20°C~+70°C
|
|
|
|
|
||||
|
Waterproof grade
|
IP32
|
|
|
|
|
||||
|
Mounting hole size
|
Φ5mm
|
|
|
|
|
||||
