Quick Details
-
Dimension(L*W*H):
-
4000*1750*2450mm
-
Weight:
-
5.5 KG
-
Product name:
-
crawler core drilling rig
-
Drilling depth(m)::
-
200/400/600
-
Drill rod diameter (mm):
-
97/102
-
Power:
-
65KW
-
Feed stroke:
-
3400mm
-
Drilling diameter:
-
140-305mm
-
Feature:
-
Hydraulic Crawler Drill
-
Size:
-
4000*1750*2450mm
-
Application:
-
drilling machine deep
-
Air consumption:
-
17-42m3/min
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hiyoung
-
Voltage:
-
220/380v,50/60HZ
-
Dimension(L*W*H):
-
4000*1750*2450mm
-
Weight:
-
5.5 KG
-
Product name:
-
crawler core drilling rig
-
Drilling depth(m)::
-
200/400/600
-
Drill rod diameter (mm):
-
97/102
-
Power:
-
65KW
-
Feed stroke:
-
3400mm
-
Drilling diameter:
-
140-305mm
-
Feature:
-
Hydraulic Crawler Drill
-
Size:
-
4000*1750*2450mm
-
Application:
-
drilling machine deep
-
Air consumption:
-
17-42m3/min
Product Description
600m depth geothermal mine crawler drilling rig of good quality
Charcteristics :
1. Adopt famous brand four cylinder diesel engine as power, large power, small volume, small vibration and stable operation.
2. The perfect combination of a patented diesel engine intake regulator with a pre-filter, oil filter and paper filter enhances
the adaptability of the drilling rig to harsh environment and prolongs the service life of the diesel engine.
Product Paramenters
|
model
|
ORSJZJX-200
|
ORSJZJ-400
|
ORSJZJ-600
|
|
Weight(Kg)
|
5500
|
8700
|
12000
|
|
The drilling hole diameter(mm)
|
140-305
|
140-325
|
140-350
|
|
Drilling depth(m)
|
200
|
400
|
600
|
|
One time forwarding length(m)
|
3.4
|
6
|
6.6
|
|
Walking speed(Km/h)
|
2.5
|
2.5
|
2.5
|
|
Climbing ability
|
30°
|
30°
|
30°
|
|
Engine power(KW)
|
65
|
95
|
115
|
|
Working pressure(Mpa)
|
1.7-3.0
|
1.7-3.5
|
1.7-3.5
|
|
Air consumption(m3/min)
|
17-30
|
17-35
|
17-35
|
|
Drilling rod diameter(mm)
|
Φ76mm, Φ89mm, Φ102mm
|
Φ89, Φ102
|
76 89 102
|
|
Drilling pipe length(m)
|
1.5m, 2.0m, 3.0m
|
1.5m,2.0m,3.0m,6.0m
|
1.5 2 3
|
|
Ground clearance (Min.)
|
250mm
|
24
|
30
|
|
Rotation speed(rpm)
|
50-70 rpm
|
45-75
|
45-115
|
|
Rotating torque(N.min)
|
3500-4800 N.m
|
8500-10000
|
8500-10050
|
|
Dimension (mm)
|
4000x1750x2450
|
5200x2000x2780
|
5400 x 2100x 2850
|
|
Diameter of wire rope
|
Φ9.3mm
|
Φ9.3mm
|
Φ13mm
|
|
Wire rope capacity
|
27m
|
27m
|
35m
|

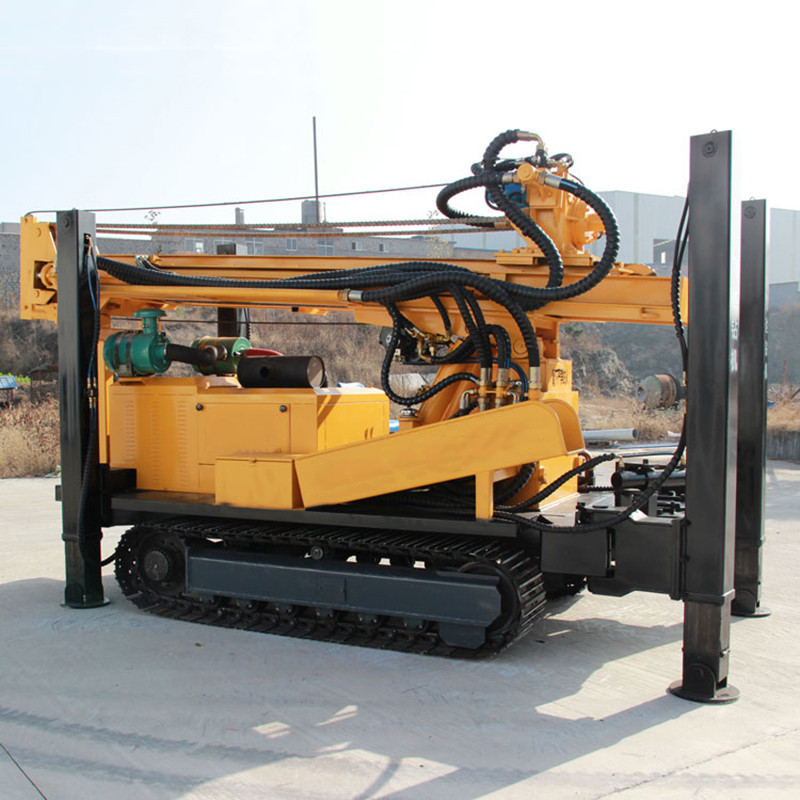

Product photo
Details Images
DTH
DTH is an integral part of DTH and a working device of DTH.The DTH impactor is divided into low air pressure DTH impactor, medium
air pressure DTH impactor and high air pressure DTH impactor.
Drill pipe
The drill pipe is used to transport drilling mud to the drill bit and with the drill bit to raise, lower or rotate the bottom hole
device.
Rig chassis
The special chassis for drilling machine is more suitable for drilling machine with excellent quality.
Double motor power head
The dual motor power head is simple in structure and has two groups of power, which can meet the normal needs of dual power output
under different working conditions.
