Quick Details
-
Color:
-
Full color
-
Panel Size:
-
576mmx576mm, 576mmx576mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MT-FINP3SNC01C1
-
Brightness:
-
600-800cd/m2, 600-800cd/m2
-
IP Rating:
-
IP40, IP40
-
HS Code:
-
8531200000
-
Resolution:
-
≥2K
-
View Angle（H/V）:
-
140, 140
-
Product name:
-
576x576mm Indoor P3 LED Display
-
Color Temperature:
-
9000K±500
-
Warranty:
-
5 Years
-
Refresh Rate:
-
≥1920Hz
-
Certificate:
-
CE ROHS FCC
-
Pixel Configuration:
-
SMD 1R1G1B
-
Best Viewing Distance:
-
≥5M
-
Life span:
-
100000hours
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
MAXTOP
-
Color:
-
Full color
-
Panel Size:
-
576mmx576mm, 576mmx576mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MT-FINP3SNC01C1
-
Brightness:
-
600-800cd/m2, 600-800cd/m2
-
IP Rating:
-
IP40, IP40
-
HS Code:
-
8531200000
-
Resolution:
-
≥2K
-
View Angle（H/V）:
-
140, 140
-
Product name:
-
576x576mm Indoor P3 LED Display
-
Color Temperature:
-
9000K±500
-
Warranty:
-
5 Years
-
Refresh Rate:
-
≥1920Hz
-
Certificate:
-
CE ROHS FCC
-
Pixel Configuration:
-
SMD 1R1G1B
-
Best Viewing Distance:
-
≥5M
-
Life span:
-
100000hours

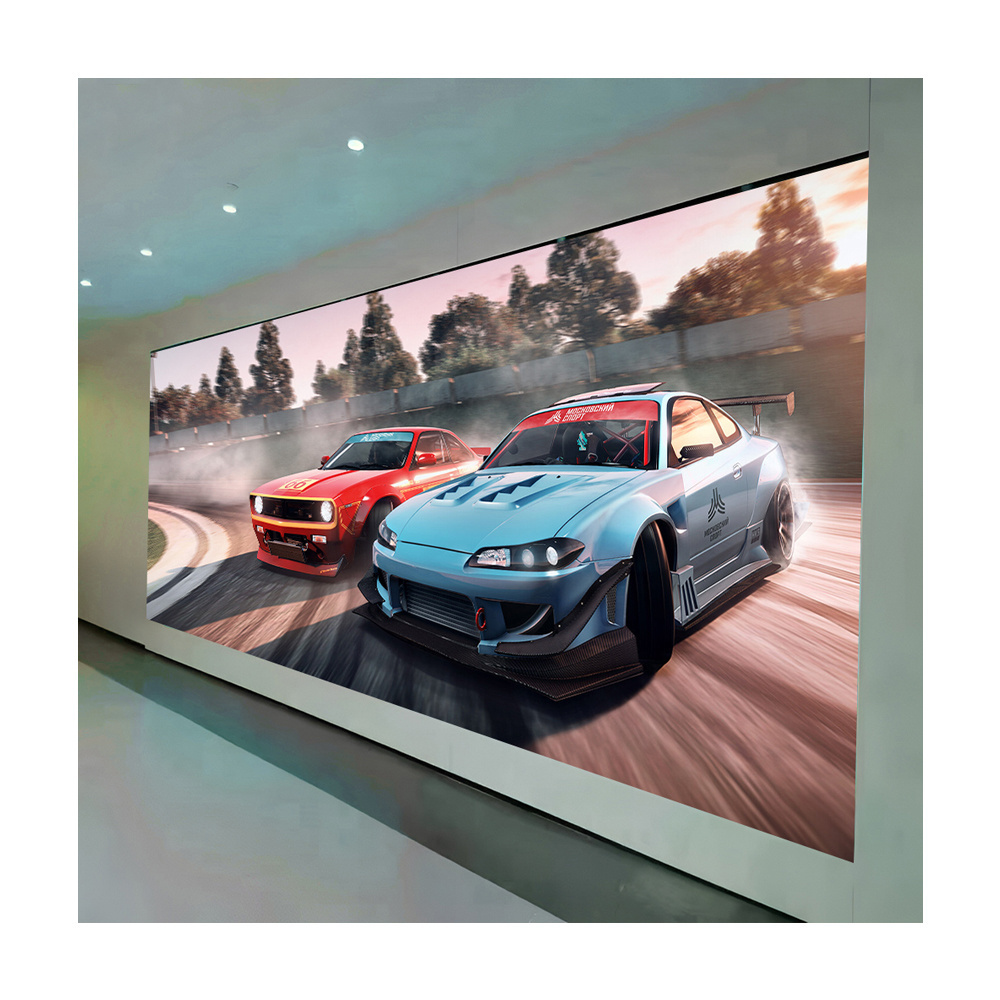

MAX TOP 576x576mm Indoor P3 LED Display
| Technical Parameters | Model Parameters |
| Product model | Indoor P3-32S |
| LED | SMD1515 |
| Pixel Pitch | 3mm |
| Module Resolution | 64dots(W)*64dots(H) |
| Cabinet Resolution | 192dots(W)*192dots(H) |
| Pixel synthesis | 1R1G1B(3 in 1) |
| Pixel Density | 10000dots/m2 |
| Scan Mode | 1/32 |
| Refresh Rate | ≥1920HZ |
| Gray Level | ≥14Bit |
| Module Size | 192mm(W)*192mm(H) |
| Cabinet Size | 576mm(W)*576mm(H) |
| Brightness | 600-800cd/m2 |
| Color Temperature | 9000K±500 |
| Viewing Angle | ≤140° |
| Best Viewing Distance | >3m |
| Input voltage | AC110V-220V, 50Hz |
| Model working voltage | DC5V |
| Max. Power Consumption | 650W/m2 |
| Ave. Power Consumption | 200W/m2 |
| MTBF | >50000H |
| Working Temperature | -20℃ ~ 60℃ |
| Level of protection | IP40 |
Q1. Can I have a sample order for an LED display?
A: Yes, we welcome sample orders to test and check quality. Both for the module and the whole screen.
Q2. What about the lead time?
A: Orders less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display orders?
A: Low MOQ, 1 square meter, or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 to 30 days on the sea. a few days for customs clearance
Q5. How to proceed with an order for an LED display?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 5 years warranty on our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send a new module with a new order for a small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to the real situation.
