Quick Details
-
Description:
-
high accurate voltage transducer, voltage transducer
-
Model Number:
-
YK-VT002
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
yukong
-
Output:
-
4-20mA, 0-20mA, 0-5V, 0-10V,
-
Product name:
-
0-1000V voltage transducer
-
Measuring range:
-
0-1000V DC/ AC customize
-
Keywords:
-
DC AC voltage Transducer
-
Output Signal:
-
4-20mA, 0-10V, 0-5V, 0-20mA
-
Power:
-
DC24V, AC220V
-
Input signal:
-
0-1000V customize
-
Name:
-
DC AC voltageTransducer
-
MOQ:
-
1 pc
-
Linearity:
-
0.1%
-
Load capacity:
-
Voltage output:5mA; current output:6V
Quick Details
-
Use:
-
measure voltage
-
Series:
-
AC DC Voltage Transmitter
-
Mounting Type:
-
35mm DIN rail
-
Description:
-
high accurate voltage transducer, voltage transducer
-
Model Number:
-
YK-VT002
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
yukong
-
Output:
-
4-20mA, 0-20mA, 0-5V, 0-10V,
-
Product name:
-
0-1000V voltage transducer
-
Measuring range:
-
0-1000V DC/ AC customize
-
Keywords:
-
DC AC voltage Transducer
-
Output Signal:
-
4-20mA, 0-10V, 0-5V, 0-20mA
-
Power:
-
DC24V, AC220V
-
Input signal:
-
0-1000V customize
-
Name:
-
DC AC voltageTransducer
-
MOQ:
-
1 pc
-
Linearity:
-
0.1%
-
Load capacity:
-
Voltage output:5mA; current output:6V
Product Description

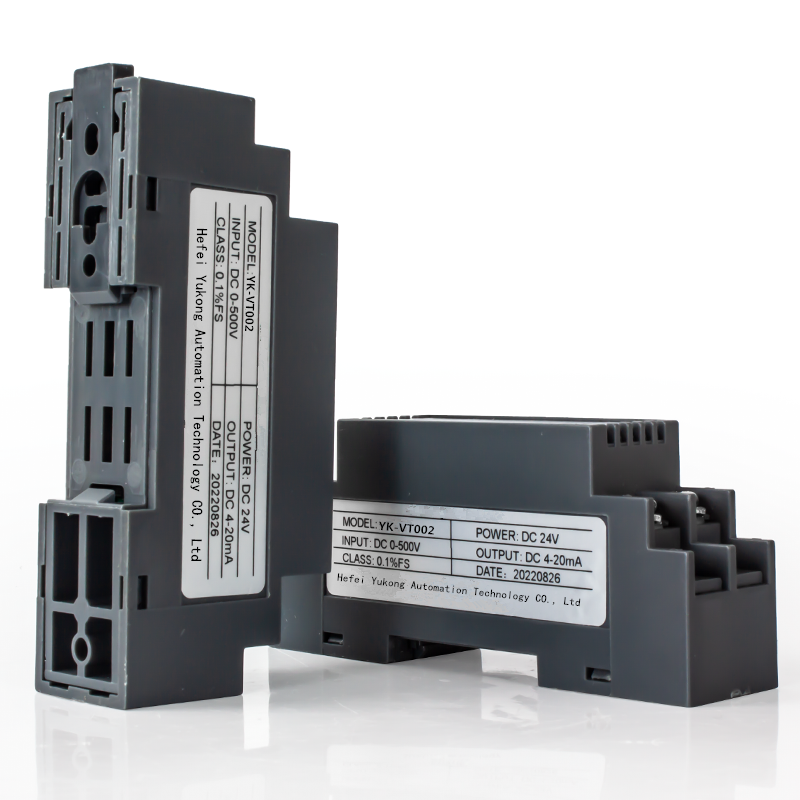

AC DC Voltage Transmitter 75mV 20V 50V 100V 200V 300V 500V Transducer Sensor 4-20mA 0-10V 0-5V Output
✔ Advantages: Better cost performance,fast response,high precision, good stability,small size, light weight,easy installation.
✔ Application: Measurement of distortion waveforms such as triangular wave, trapezoidal wave and thyristor adjustable (true RMS output).
✔ The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
✔
Full channel configuration,Parameter customizable.
NOTE: If you need other parameters customization, please feel free contact us
NOTE: If you need other parameters customization, please feel free contact us
Parameters
|
Model NO.:
|
YK-V002 voltage transducer
|
|
Original side rated voltage:
|
10mV;20mV;75mV;0.1V;0.5V;1V;10V;50V;100V;
500V;800V;1000V |
|
Original side measurement range:
|
10mV-1000V
|
|
Load capacity:
|
Voltage output: 5mA, Current output: 6V
|
|
Installation:
|
35mm DIN rail way + Plane Screw fixation
|
|
Power supply:
|
DC24V, DC12V
|
|
Accuracy:
|
0.1%
|
|
Reponse time:
|
≤10ms
|
|
Isolation strength
|
1500V AC 1min (input, output, power)
|
|
Isolation resistance
|
≤500PPM/℃
|
|
Consumption of current:
|
≥100MΩ (input, output, power)
|
|
Channel:
|
1 in 1 out
|
|
Working temperatue:
|
-20~+55℃
|
FAQ
Q1: Can the parameters customized according to our demand?
Q5: What's the delivery time?
A: Yes, we customize the paraments based on your need, such as measuring range, power supply, output signal, etc., and also supply brand customization, customize your company's name and logo on the products.
Q2: What's your minimum order quantity ? Could I get one sample to test first?
A: We offer the lowest MOQ, and also offer sample for you to test.
A: We offer the lowest MOQ, and also offer sample for you to test.
Q3:
When will the shipment be made after placing the order?
A: For sample order, usually will ship out in 2 days, and for bulk order with parameters customize, usually will be ship out in a week.
Q4: If I meet some problems during using your products, how could I solve it?
A; If you meet any problem during using the prodcuts, please contact us in a timely manner. We have professional engineers who will help you solve the problem.
A; If you meet any problem during using the prodcuts, please contact us in a timely manner. We have professional engineers who will help you solve the problem.
Q5: What's the delivery time?
A: We have UPS, DHL, Fedex, sea freight, plane etc. shipping methods to choose, which can fulfill your demand about in-time delivery demand.
