Quick Details
-
Lamp Body Material:
-
Nylon (PA-12)
-
Lamp Luminous Flux(lm):
-
200
-
Color Temperature(CCT):
-
6500K
-
Input Voltage(V):
-
DC 4.5V
-
Lamp Luminous Efficiency(lm/w):
-
133
-
Product Weight（kg）:
-
0.195
-
Place of Origin:
-
China
-
Brand Name:
-
GOALTEK
-
Model Number:
-
ExMP31N
-
Luminous flux (strong mode):
-
≥200lm
-
Luminous flux (work mode):
-
≥60lm
-
Run time (strong mode):
-
≥9h
-
Run time (work mode):
-
≥18h
-
Battery time:
-
3*LR6AA (IEC60086)
-
Certification:
-
IECEx, ATEX
-
Ex mark:
-
Ex I M1 Ex ia I Ma; Ex II 1 G D Ex ia IIC T4 Ga; Ex ia IIIB T130 Da
-
Working ambient temp.:
-
-40℃≤Ta≤+55℃
Quick Details
-
Battery Type:
-
LR6AA(IEC60086)
-
Usage:
-
Emergency
-
Power Source:
-
DRY BATTERY
-
Lamp Body Material:
-
Nylon (PA-12)
-
Lamp Luminous Flux(lm):
-
200
-
Color Temperature(CCT):
-
6500K
-
Input Voltage(V):
-
DC 4.5V
-
Lamp Luminous Efficiency(lm/w):
-
133
-
Product Weight（kg）:
-
0.195
-
Place of Origin:
-
China
-
Brand Name:
-
GOALTEK
-
Model Number:
-
ExMP31N
-
Luminous flux (strong mode):
-
≥200lm
-
Luminous flux (work mode):
-
≥60lm
-
Run time (strong mode):
-
≥9h
-
Run time (work mode):
-
≥18h
-
Battery time:
-
3*LR6AA (IEC60086)
-
Certification:
-
IECEx, ATEX
-
Ex mark:
-
Ex I M1 Ex ia I Ma; Ex II 1 G D Ex ia IIC T4 Ga; Ex ia IIIB T130 Da
-
Working ambient temp.:
-
-40℃≤Ta≤+55℃
Products Description
As intrinsically safe explosion proof LED Torch,
ExMP31R
series is ATEX & IECEX certified by DNV, for safe use in Zones 1, 2 potentially explosive gas and Zones 21, 22 dust atmospheres. It's widely used in petroleum, chemical, defence, utilities, pharmaceuticals, power stations and other industry applications.

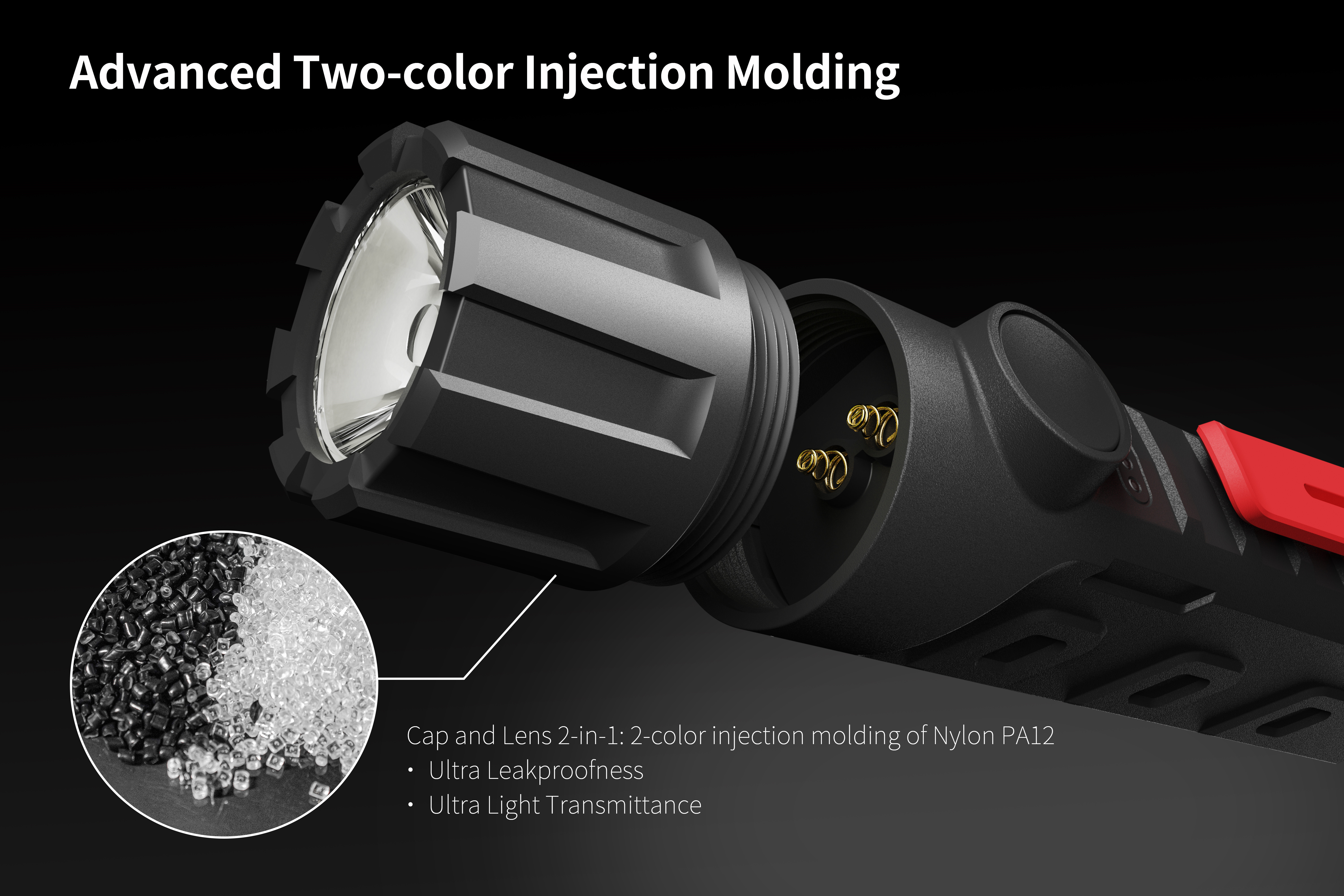

Adapted high quality PA12 alloy plastic material,
ExMP31R
features with lightweight, anti-static, anti-corrosion, anti-UV, impact resistant, and high protection rating IP66/67 and WF2. Unique large switching with protection shroud design ensures
ExMP31R
can be operated easily even wearing industrial gloves.
Provided with charging track rail or charging stand, centralized charging mode assures the absolute safety of the site, and achieves high efficient management.
Product Paramenters
|
MODEL NO.
|
ExMP31R
|
ExMP31N
|
|
|
CERTIFICATION
|
ATEX IECEx
|
ATEX IECEx
|
|
|
EX MARK
|
I M2 Ex ib I Mb
II 2 G D Ex ib IIC T4 Gb
Ex ib IIIB T130 Db
|
I M1 Ex ia I Ma
II 1 G D Ex ia IIC T4 Ga
Ex ia IIIB T130 Da
|
|
|
USAGE
|
I , II Zone 1/2, III Zone 21/22
|
I , II Zone 0/1/2, III Zone 20/21/22
|
|
|
AMBIENT TEMPERATURE
|
-40℃≤Ta≤+55℃
|
-40℃≤Ta≤+55℃
|
|
|
IP RATING
|
IP66/67
|
IP66/67
|
|
|
LIGHT SOURCE
|
HIGH POWER LED CREE/ LUMILEDS
|
HIGH POWER LED CREE/ LUMILEDS
|
|
|
CCT
|
6500K
|
6500K
|
|
|
LUMINOUS FLUX
|
≥220lm (strong mode)
≥110lm (work mode)
|
≥200lm (strong mode)
≥60lm (work mode)
|
|
|
RUN TIME
|
≥8h (strong mode)
≥14h (work mode)
|
≥9h (strong mode)
≥18h (work mode)
|
|
|
BEAM DISTANCE
|
120m (work mode)
175m (strong mode)
|
100m (work mode)
165m (strong mode)
|
|
|
ILLUMINATION
(1M)
|
3700lux (work mode)
7800lux (strong mode)
|
2600lux (work mode)
6800lux (strong mode)
|
|
|
BATTERY TYPE
|
Lithium-ion battery
(IEC 61233, IEC 61960)
|
3×LR6AA (IEC60086)
|
|
|
BATTERY RATED CAPACITY
|
3.6V, 3350 mAh
|
3x1.5V
|
|
|
CHARGING WAY
|
matched 1000/01-A31 charging base
|
/
|
|
|
CHARGING TIME
|
＜6.5 h
|
/
|
|
|
RECHARGING CYCLES
|
500 cycles
|
/
|
|
|
LIFESPAN
|
50,000h (without battery)
|
50,000h (without battery)
|
|
|
MATERIAL
|
Nylon (PA-12)
|
Nylon (PA-12)
|
|
|
DIMENSION
|
¢42 X162.5mm
|
¢42 X162.5mm
|
|
|
WEIGHT
|
187g
|
194g
|
|
|
WARRANTY
|
3-5 YEARS
|
3 YEARS
|
|
