Quick Details
-
Flow:
-
65L/min
-
Application:
-
hydraulic press machine
-
System Pressure:
-
16MPa
-
Tank Capacity:
-
1000L
-
Warranty:
-
1 Year
-
Motor Power:
-
22KW
-
Certificate:
-
ISO9001:2008 / CE
-
Actuator:
-
hydraulic cylinders
-
Color:
-
Blue, Black, Red, As customized
-
Product name:
-

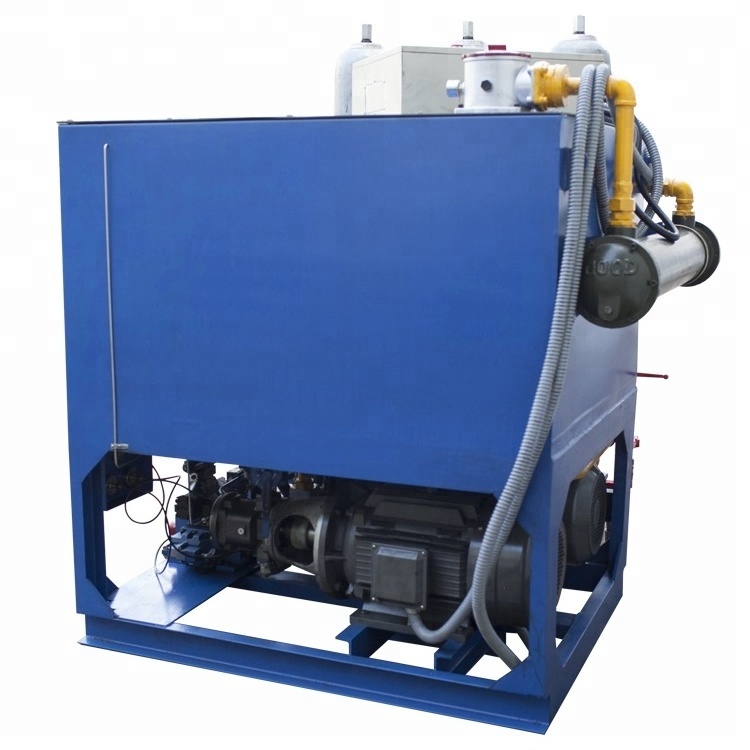

hydraulic power pack station
Quick Details
-
Model Number:
-
YZW1000-Z22
-
Brand Name:
-
HANLiDA
-
Place of Origin:
-
Zhejiang, China
-
Flow:
-
65L/min
-
Application:
-
hydraulic press machine
-
System Pressure:
-
16MPa
-
Tank Capacity:
-
1000L
-
Warranty:
-
1 Year
-
Motor Power:
-
22KW
-
Certificate:
-
ISO9001:2008 / CE
-
Actuator:
-
hydraulic cylinders
-
Color:
-
Blue, Black, Red, As customized
-
Product name:
-
hydraulic power pack station
pto hydraulic power unit
Main Feature
| System Pressure | Max.700bar |
| System Flow Rate | Max.1000L/min |
| Motor Power | DC: 3-230V / AC: 0.18-315KW |
| Electric Voltage | DC/AC, Customized |
| Frequency | 50/60HZ |
| Mounting Type | Vertical, Horizontal, Side Mounting |
| Structure Of Oil Tank | Round, Square, as customized |
| Oil Tank | 3L-1000L, As customized |
Working Schematic
DATA SHEET
Customized Hydraulic Power Pack Units Solutions.
All of the designs in the HANLiDA Hydraulics portfolio of
Mini Hydraulic Power Power Pack Unit
,
Standard Hydraulic Power Pack Units
,
Customized Hydraulic Power Pack Units
,
Whole Set Hydraulic System
,
Solenoid Valves
are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the hydraulic power pack units in our portfolio, enables OEMs to meet their custom hydraulic power pack units requirements while allowing for faster development times.
Question List:
1. How many cylinders will be controlled? and the cylinder size and speed?
2. For example:If in this system there are two cylinders, Are they working separately or working synchronous?
If synchronous, What's the synchronization accuracy when they are up?
3. How do these cylinders move? just move up and down?
4. Piston need to stop in anywhere ?
5. Piston need to stop in a place for some seconds?
6. Piston need to adjust the speed?
7. What is the voltage do you need?
8. Do you need cooling fan? If you will use for a long time it is better to add.
