Quick Details
-
Rolling thinckness:
-
0.8-2.0mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
abena
-
Voltage:
-
5.5kw
-
Dimension(L*W*H):
-
7500*1500*1500mm
-
Weight:
-
7000 kg
-
Feeding width:
-
within 1000mm
-
Marketing Type:
-
good quality
-
Product name:
-

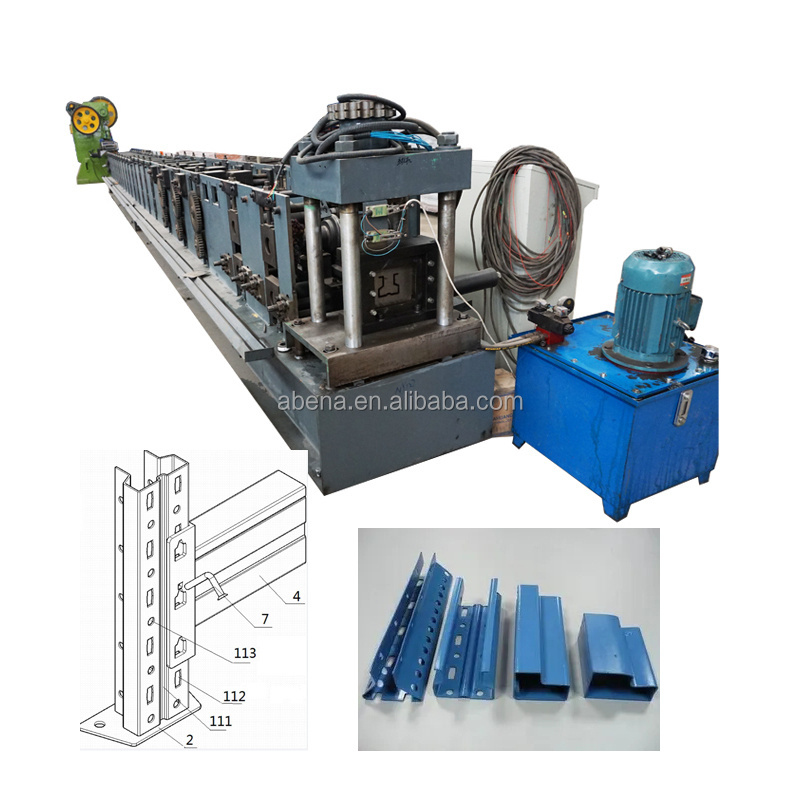

Rack And Shelf Roll Forming Machine
-
Productivity:
-
8-12m/min
-
Control system:
-
Delta PLC control
-
Roller stations:
-
20 roller stations
-
Diameter of shaft:
-
52mm
-
Main motor power:
-
5.5kw
-
Processing precision:
-
Within 1.00mm
-
Main structure of the machine:
-
H steel 400mm
-
weight of machine:
-
6500kg
-
Dimension of machine:
-
7500*1500*1500mm
Quick Details
-
Type:
-
supermarket shelf roll forming machine
-
Tile Type:
-
supermarket shelf
-
Production Capacity:
-
15-30 m/min
-
Rolling thinckness:
-
0.8-2.0mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
abena
-
Voltage:
-
5.5kw
-
Dimension(L*W*H):
-
7500*1500*1500mm
-
Weight:
-
7000 kg
-
Feeding width:
-
within 1000mm
-
Marketing Type:
-
good quality
-
Product name:
-
Rack And Shelf Roll Forming Machine
-
Productivity:
-
8-12m/min
-
Control system:
-
Delta PLC control
-
Roller stations:
-
20 roller stations
-
Diameter of shaft:
-
52mm
-
Main motor power:
-
5.5kw
-
Processing precision:
-
Within 1.00mm
-
Main structure of the machine:
-
H steel 400mm
-
weight of machine:
-
6500kg
-
Dimension of machine:
-
7500*1500*1500mm
Products Description
|
Configurations
|
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
|
|
Control System
|
PLC Delta Inverter
|
|
Main Frame
|
400mm H-Beam
|
|
Main Power
|
7.5kw
|
|
Pump Power
|
5.5kw
|
|
Power Supply
|
380V, 3-Phase,50Hz or as your need
|
|
Forming Speed
|
20m/min
|
|
Roll Station
|
20 roller stations
|
|
Shaft material
|
45#forge steel, thermal fining
|
|
Roller material
|
Gcr15 bearing steel, quenching (HRC55-58)
|
|
Hydraulic Pressure
|
10-12MPa
|
|
Feeding Thickness
|
0.8-2.0mm
|
|
Feeding Width
|
within 1000mm
|
|
Backboard Thickness
|
16mm
|
|
Chain Size
|
1 inch
|
|
Cutter Standard
|
Cr12Mov, heat treatment(HRC58-62°)
|
|
Cr-Plating Size
|
0.05mm
|
|
Overall Size
|
7000×1500×1500mm
|
|
Total Weight
|
6500kg
|
|
No.
|
Component
|
Quantity
|
|
1
|
Hydraulic decoiler
|
1 set
|
|
2
|
Leveling machine
|
1 set
|
|
3
|
Servo feeder
|
1 set
|
|
4
|
Press punching
|
1 set
|
|
5
|
Roll forming machine
|
1 set
|
|
6
|
Hydraulic cutting
|
1 set
|
|
7
|
Output table
|
1 set
|
|
8
|
Hydraulic station
|
1 set
|
|
9
|
PLC controller
|
1 set
|
|
10
|
Spare part&tools
|
1 set
|
