Quick Details
-
Dimension(L*W*H):
-
750*750*1550mm
-
Power (kW):
-
0.25 ; 0.37
-
Weight (KG):
-
300 KG
-
Name:
-

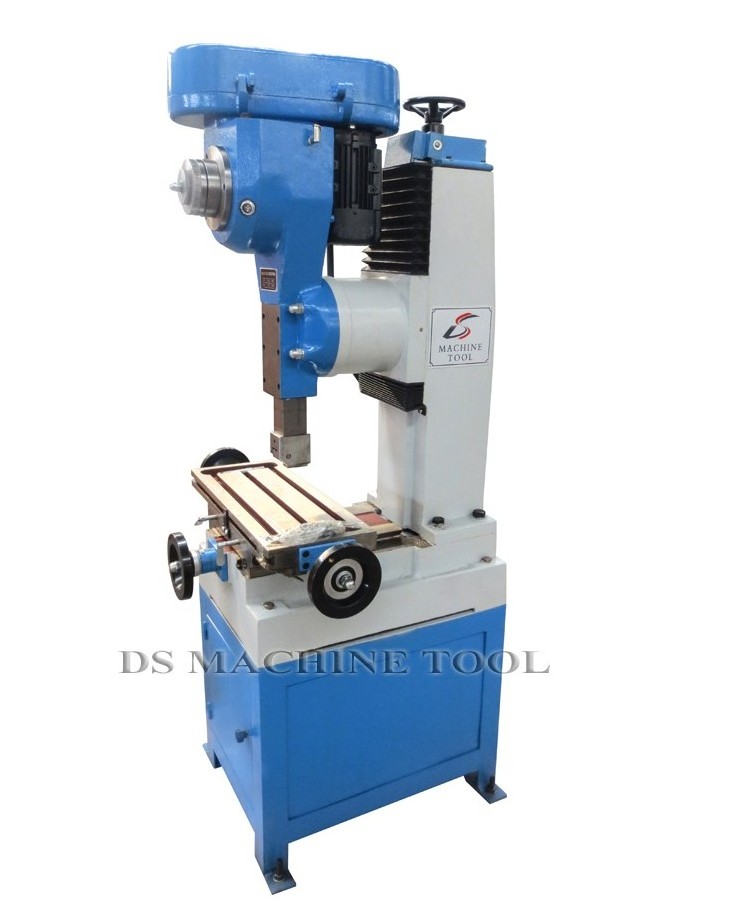

slotting machine for metal Vertical Price of Slotting Machine
-
Model:
-
HT100, HT125
-
Power(W):
-
250W/370W
-
Key word:
-
Slotting Machine
-
Worktable SIZE:
-
500*200mm
-
Color:
-
Support Customized
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DS Machine Tool
-
Voltage:
-
Customer Requireme, 220V/240V/380V 50hz /60hz 3phase
-
Dimension(L*W*H):
-
750*750*1550mm
-
Power (kW):
-
0.25 ; 0.37
-
Weight (KG):
-
300 KG
-
Name:
-
slotting machine for metal Vertical Price of Slotting Machine
-
Model:
-
HT100, HT125
-
Power(W):
-
250W/370W
-
Key word:
-
Slotting Machine
-
Worktable SIZE:
-
500*200mm
-
Color:
-
Support Customized
slotting machine for metal Vertical Price of Slotting Machine
|
Model |
Parameter |
|
|
HT100 |
HT125 |
|
|
The biggest slotting ( mm ) |
100 |
125 |
|
Minimum number of stroke (times/min) ) |
60 |
60 |
|
Maximum stroke times (times/min) |
350 |
350 |
|
The spindle speed |
6 |
6 |
|
For the turning Angle of rest |
90 |
90 |
|
Table size ( mm ) |
500*200 |
500*200 |
|
Table travel ( mm ) |
200*150 |
200*150 |
|
The motor power ( W ) |
250 |
370 |
|
Overall dimensions ( mm ) |
750*750*1550 |
750*750*1550 |
|
The net weight/gross weight ( Kg ) |
236/286 |
243/293 |
Rust-proof oil + plasticbag + fumigation-free wooden boxes+ wooden pallets/iron pallets;
