Automatic Small Electronic Transformer Spool Toroidal Inductor Coil Winding Machine

Automatic Small Electronic Transformer Spool Toroidal Inductor Coil Winding Machine

AM-NRRX-10

Application:Used for spot welding of inductance winding of NR side welding series.

Performance and Parameters:

Feeding mode :vibrating disc feeding

Winding mode :single axis winding

Machine capacity :1.8-2.2KPCS/H

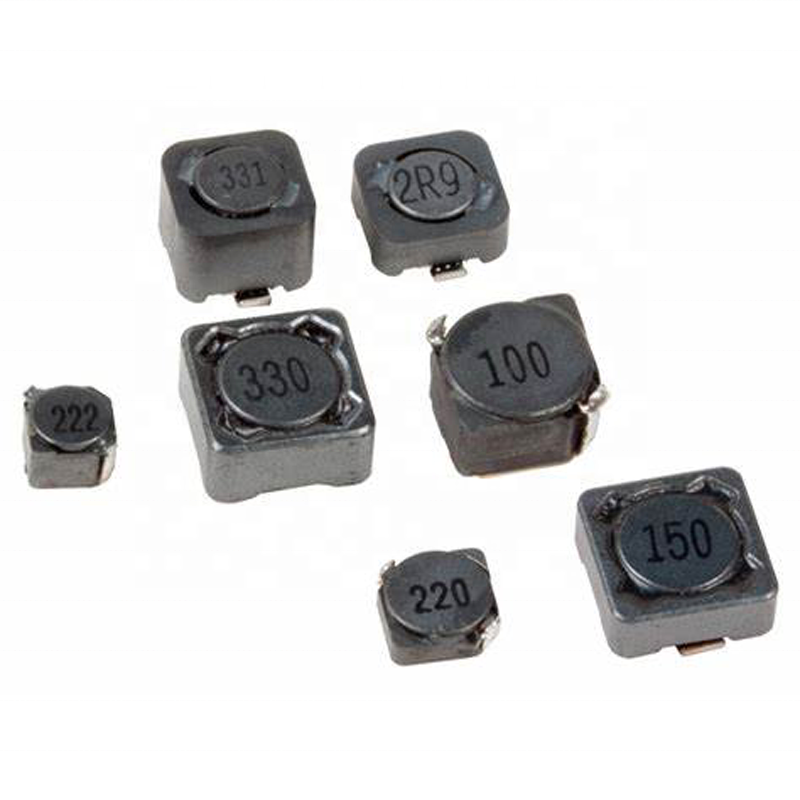

Applicable product: NR side welding series inductance(NR2016,NR2520,NR3015)

Applicable wire diameter :0.02-0.12mm

Winding speed: Max 2000 rpm

Operation control way: Imported PLC control is adopted.The man-machine interface is intuitionistic,simple and convenient and can meet the demand of humanity.

Partitioner steering:counter-clockwise direction(cross station)

Working environment: -5℃-50℃(there is no corrosive and harmful gas and flying dust etc severe environment).

Machine size: L1350*W1300*H1550mm

Power supply: single phase AC220V and 50HZ

Air supply: 0.5-0.7Mpa

Power: around 6.5KW

Total weight: around 650KG

Machine features:

1.Mechanical structure is simple and easy to maintain.Famous-brand high precision partitioner and servo motor are adopted for transposition of segmentation.The repeat precision is high and stable.

2.Discharging mode is flexible.It can put the product in the plate and can discharge bulk material directly.

3.Other functions can be discussed and confirmed in advance according to the requirements of customer.

Details:

About our Factory

Shenzhen Jindongli Packing Equipment Co., Ltd is a high-tech enterprise integrated with scientific research and design, manufacturing and sales services, main products including SMD peripheral devices (such as: semi-automatic taping packaging machine, automatic inductor test packaging machine, automatic IC test packaging machine, automatic capacitor test machine, touch switch automatic taping machine, peeling strength tester, etc.), SMD electronic packing materials, we also processes the incoming materials of taping packages for SMD electronic components.

Certification

Exhibition

Other Products

FAQ

1 .Are you a manufacture?

Yes, we are factory in Shenzhen,Guangdong Province.

2 .What’s the product range?

Our main products including SMD peripheral devices (such as: semi-automatic taping packaging machine, automatic inductor te st packaging machine, automatic IC test packaging machine, automatic capacitor test machine, touch switch automatic taping machine, peeling strength tester, etc.), SMD electronic packing materials, we also processes the incoming materials of taping packages for SMD electronic components.

3. How does your factory do regarding quality control?

Quality is priority.Our factory always attach great importance to quality controlling and each step of production products will be camed out inspection by QC department before shipping.Our factory has gained CCC,ISO,SGS authentication.

4. How do you ship the finished products?

By Sea

By Plane

By courier, TNT , DHL, Fedex, UPS Etc .

5 .What’s the delivery time?

Normally 20 days after get the payment .

6. How to support you when you purchase our machine in first time?

When you meet the problem of our machine under the situation that you are not familiar with our machines.

Do not worry, we can offer:

l User Manual in English

l Operation Video

l Support on-line

l You can send your technician to our factory to attend the skill training.

7 .What’s the Payment term?

Payment term: T/T before shipment.

We accept payment via the Paypal /Western union/TT, you can choose as you like.

8 .What about the warranty?

We provide one-year limited warranty for all machines from the date of purchase
