Quick Details
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
KONLIDA
-
Place of Origin:
-
SUZHOU
-
Product Name:
-

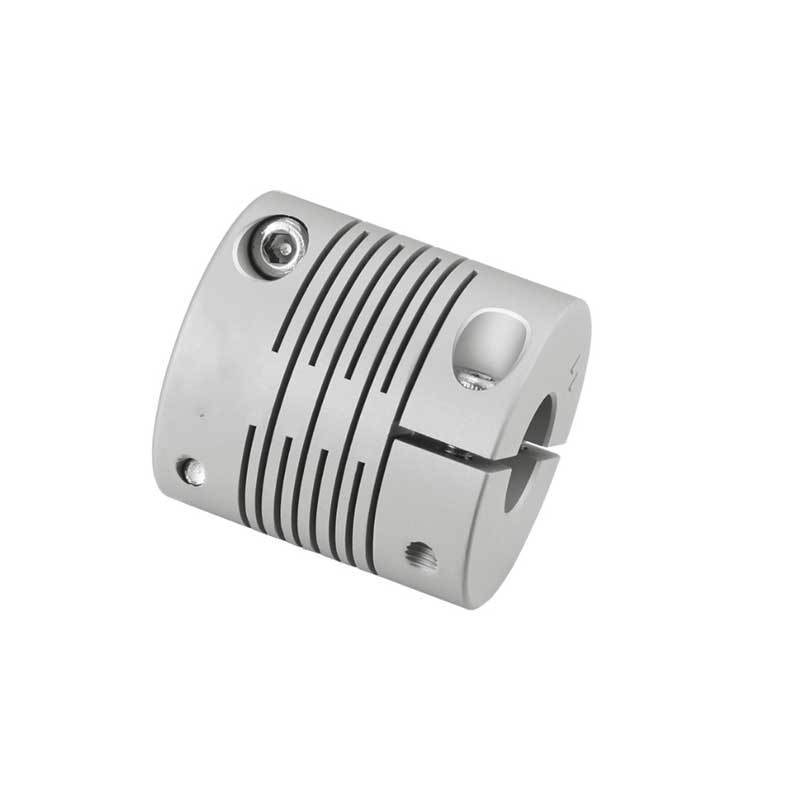

Flexible Coupling 5*8
-
Body Material:
-
Aluminum alloy
-
Features 1:
-
Design for encoder,stepmotor
-
Features 2:
-
Zero backlash,suitable for forward reverse
-
OEM & ODM:
-
Acceptable
-
Surface Treatment:
-
Oxidation
-
Length:
-
17.4mm
-
Diameter:
-
16mm
-
Application:
-
Industrial Equipment
Quick Details
-
Warranty:
-
1 years
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
-
Structure:
-
Universal
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
KONLIDA
-
Place of Origin:
-
SUZHOU
-
Product Name:
-
Flexible Coupling 5*8
-
Body Material:
-
Aluminum alloy
-
Features 1:
-
Design for encoder,stepmotor
-
Features 2:
-
Zero backlash,suitable for forward reverse
-
OEM & ODM:
-
Acceptable
-
Surface Treatment:
-
Oxidation
-
Length:
-
17.4mm
-
Diameter:
-
16mm
-
Application:
-
Industrial Equipment
Product Description
Features:
●
Integrated structure,the overall use of high-strength aluminum alloy material.
●
Elasticity compensates radialangular and axial deviations.
●
Shaft and axial connection without gaps suitable for for
ward and reverse rotation.
●
Commonly used in servo,stepper motor
●
Clamping screw tightening method.
Stainless Steel Encoder Rigid Coupling Encoder Step-servo Motor All-in-one Construction Parallel Line Shaft Coupling
Specification
Dimension:(Unit:mm)
|
Model Parameter
|
Common Bore Diameter d1,d2
|
ΦD
|
L
|
L1
|
L2
|
F
|
M
|
Tightening Screw Torque
(N.M)
|
||||||||
|
KLD-16X17.4
|
3,4.5,6
|
16
|
17.4
|
0.55
|
1.18
|
3.0
|
M2.5
|
1
|
||||||||
|
KLD-19X20
|
3,4,5,6,6.35,7,8
|
19
|
20
|
0.55
|
1.18
|
3.4
|
M2.5
|
1
|
||||||||
|
KLD-24X25
|
4,5,6,6.35,7.8.9.10,11
|
24
|
25
|
0.55
|
1.49
|
3.78
|
M3
|
1.5
|
||||||||
|
KLD-29X30
|
5,6,6.35,7,8,9,9.525,10,11,12,12.7
|
29
|
30
|
0.55
|
1.81
|
4.5
|
M3
|
1.5
|
||||||||
|
KLD-34X35
|
8,9,9.525,10,11,12,12.7,14,15,16
|
34
|
35
|
0.8
|
2.09
|
5.1
|
M3
|
1.5
|
||||||||
|
Specifications(Unit:mm)
|
|
|
|
|
|
|
|
|
||||||||
|
Model Parameter
|
Rated Torque(N.m)
|
Allowable Eccentricity (mm)
|
Allowable Deflection angle (°)
|
Allowable Axial Deviation (mm)
|
Maximum Speed (rpm)
|
Static Torsional Stiffness (N· m/rad)
|
Moment of Inertia (N· m)
|
Coupling Weight
(g)
|
||||||||
|
KD-16X17.4
|
0.75
|
0.05
|
0.5
|
±0.1
|
8000
|
200
|
2.5x10-
7
|
7
|
||||||||
|
KD-19X20
|
1.5
|
0.05
|
0.5
|
±0.1
|
8000
|
270
|
5.8x10-
7
|
12
|
||||||||
|
KD-24X25
|
2.2
|
0.05
|
0.5
|
±0.1
|
6200
|
790
|
1.8x10
-6
|
23
|
||||||||
|
KD-29X30
|
3
|
0.05
|
0.5
|
±0.1
|
5000
|
1400
|
5.2x10
-6
|
41
|
||||||||
|
KD-34X35
|
4.5
|
0.05
|
0.5
|
±0.1
|
4300
|
2200
|
1.1x10
-5
|
62
|
||||||||
|
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed.
|
|
|
|
|
|
|
|
|
||||||||
