Main Technical Parameters
|
|

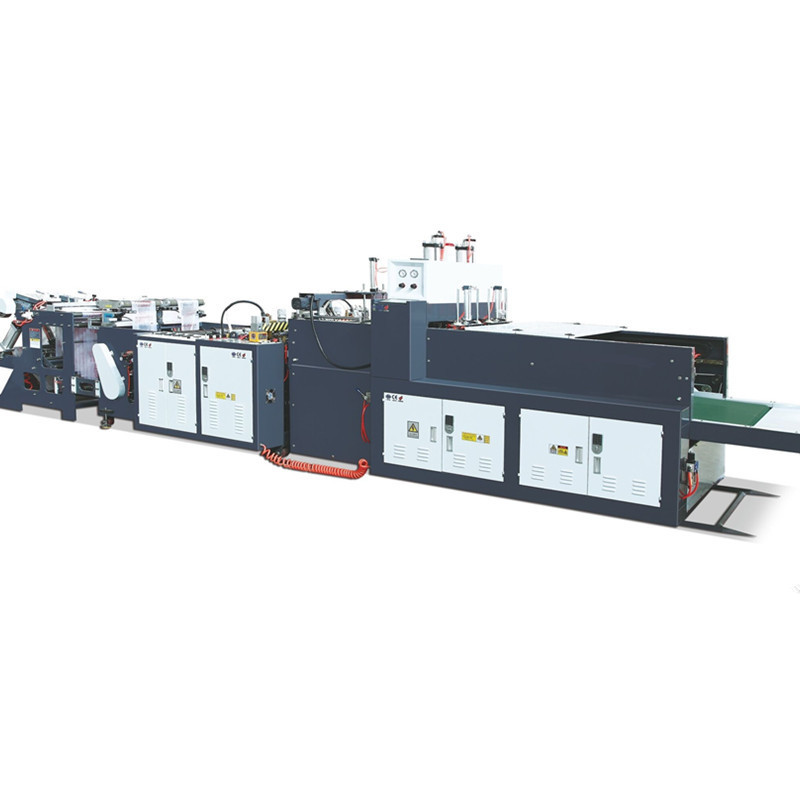

SS-GS High Speed T-shirt Bag Making Machine
|
|
||
|
Model
|
SS-GS400*2
|
SS-GS450*2
|
SS-GS500*2
|
||
|
Max Bag Width
|
350mm
|
400mm
|
450mm
|
||
|
Max Bag Length
|
700mm
|
700mm
|
700mm
|
||
|
Thickness of material
|
0.008-0.05mm
|
0.008-0.05mm
|
0.008-0.05mm
|
||
|
Machine Speed
|
250-300PCS * 2/min
|
250-300PCS*2/min
|
250-300PCS*2/min
|
||
|
Main Motor
|
1.5kw
|
1.5kw
|
2.2kw
|
||
|
Machine weight
|
2500kg
|
2600kg
|
2700kg
|
||
|
Machine Dimension
(L*W*H)
|
8000*1800*1800mm
|
8000*1900*1800mm
|
8000*2000*1800mm
|
||
Name: Auto t-shirt punching part
A. Machine part:Cast aluminum machine hand to catch bags evenly.
B. Air pressure0.15-1.0mpa, pressure cylinder 0.3-0.8mpa.
C. Effective folding length:700mm, folding 350mm.
D. 1.5m conveyor, able to convey more than 50 bunches finished bags.
A.Max. Bag Length:700mm,
Max Bag Width:400mm
B.Thickness of material film:0.008mm-0.05mm.
a. First film packed
b. Use forklift to carry machine
into container one by one.
Use iorn wires to tie up machines
with the container
a. Close the container
b. Shipping on the way to destination port.
