Quick Details
-
Model Number:
-
TSP-001/TSP-001D
-
Type:
-
Capacitive Touch Switch
-
Power:
-
12W
-
Sensing Range:
-
0cm
-
Product name:
-
LED Mirror Touch Switch
-
Max Load:
-
1A/12W
-
Indicator Light:
-
White Light + Blue Light
-
TSP-001:
-
ON OFF + Dimming
-
TSP-001D:
-
Three Color Adjustable + Dimming
-
Dimension:
-
73*46*13MM
-
Support Mirror Thickness:
-
1-5mm Mirror
-
Color:
-
Black case + White Cable
-
Input Plug:
-
Normal EU Plug, US Plug available, please remark
-
Certification:
-
CE
Quick Details
-
Voltage:
-
DC12V, DC12V
-
Place of Origin:
-
GUA
-
Brand Name:
-
Shinechip
-
Model Number:
-
TSP-001/TSP-001D
-
Type:
-
Capacitive Touch Switch
-
Power:
-
12W
-
Sensing Range:
-
0cm
-
Product name:
-
LED Mirror Touch Switch
-
Max Load:
-
1A/12W
-
Indicator Light:
-
White Light + Blue Light
-
TSP-001:
-
ON OFF + Dimming
-
TSP-001D:
-
Three Color Adjustable + Dimming
-
Dimension:
-
73*46*13MM
-
Support Mirror Thickness:
-
1-5mm Mirror
-
Color:
-
Black case + White Cable
-
Input Plug:
-
Normal EU Plug, US Plug available, please remark
-
Certification:
-
CE
The

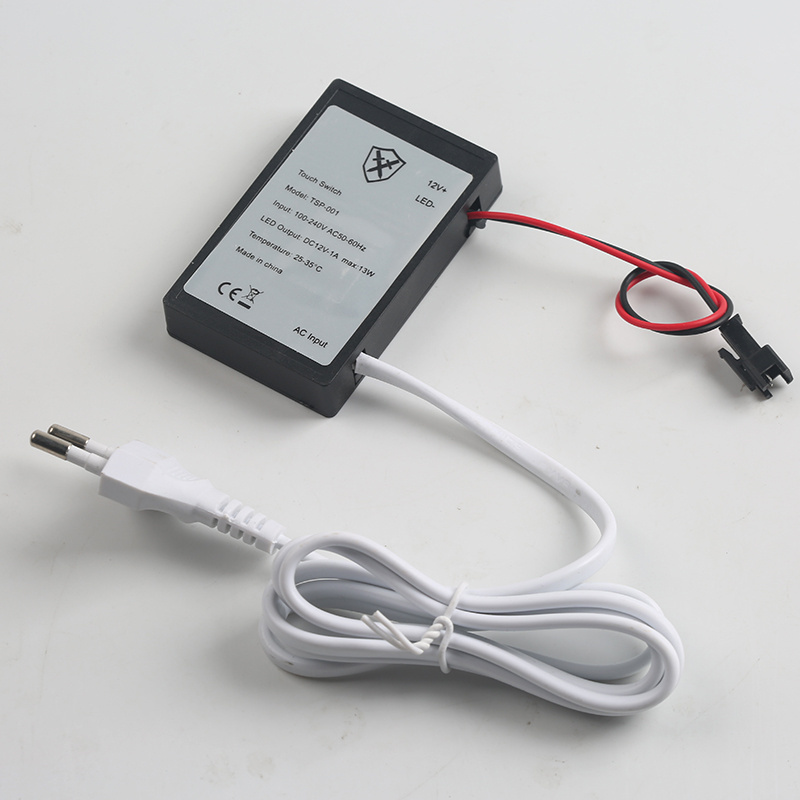

Mirror Touch Switch with Internal LED Power Supply(LED Driver/LED Transformer)
is a smart switch specially designed for all kinds of bathroom smart light mirrors, bathroom anti-fog light mirrors, LED light mirrors, mirror cabinets and other products, and for control closed areas are formed in the places of the buttons by removing the reflective layer.
|
Product Name
|
12W 1A Mirror Touch Switch with Built-in LED Driver
|
|
|
|
Model No
|
TSP-001
|
TSP-001D
|
|
|
Functions
|
ON/OFF+Dimming
|
Tricolor adjustable+Dimming
|
|
|
Input Voltage
|
110V - 240VAC
|
|
|
|
Max Load
|
12VDC 1A 12W Max
|
|
|
|
LED Indicator
|
Blue (ON Mode); White (OFF Mode)
|
|
|
|
Cable Length
|
Input: 120cm；Output: 15cm
|
|
|
|
Color Available
|
Black
|
|
|
|
Dimension
|
73 x 46 x 13mm
|
|
|
|
Support Mirror Thickness
|
≤ 5mm
|
|
|
|
Input Cable Plug
|
EU Plug (Standard)
, US Plug Optional, please remarks when orders!
|
|
|
|
Features
|
Long touch, LED Backlight off
|
|
|
ATTENTION!
1. The outer contour of the picture must be closed! An open contour of the pattern is not allowed.
2. Touch switches are built-in power supply. No need to connect external power supply.
3. Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors
3. Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors
or glue for a heat gun.
