Quick Details
-
Control System Brand:
-
FSCUT
-
Cutting Area:
-
15mm-350mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JQ LASER
-
Weight (KG):
-
6500 KG
-
Product name:
-
Three Chuck Zero Tailings FiberLaser Cutting Mmachine For Metal Tubes
-
Keyword:
-
Aautomatic Feeding tube laser cutting machines
-
Function:
-
Cutting Tube Metal Materials
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser power:
-
2000W / 3000W/4000W/6000W
-
Laser source:
-
Raycus IPG
-
Laser head:
-
Roytools
-
Type:
-
Fiber Lasr Cutting
-
After-sales Service Provided:
-
Service Machinery Overseas
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
100m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
FSCUT
-
Cutting Area:
-
15mm-350mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JQ LASER
-
Weight (KG):
-
6500 KG
-
Product name:
-
Three Chuck Zero Tailings FiberLaser Cutting Mmachine For Metal Tubes
-
Keyword:
-
Aautomatic Feeding tube laser cutting machines
-
Function:
-
Cutting Tube Metal Materials
-
Cutting materials:
-
Stainless Steel Carbon Steel
-
Laser power:
-
2000W / 3000W/4000W/6000W
-
Laser source:
-
Raycus IPG
-
Laser head:
-
Roytools
-
Type:
-
Fiber Lasr Cutting
-
After-sales Service Provided:
-
Service Machinery Overseas
Product Description

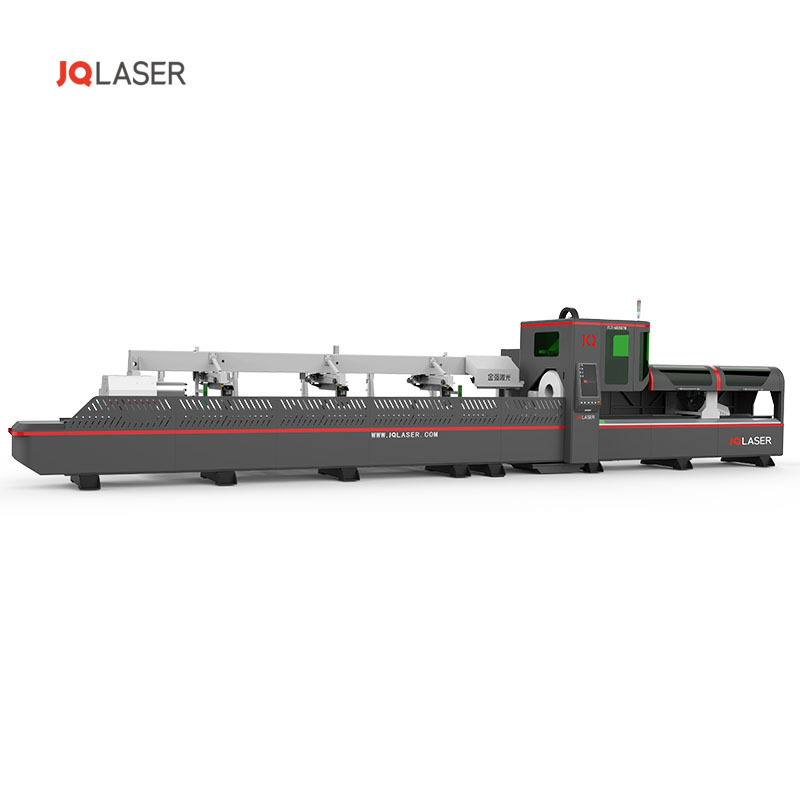

*JQLASER FLT-6035ETN Automatic Three Chuck Laser Tube Cutting Machine
Advantage：
* Servo follow-up receving device.
* The universal loading device.
* Side extraction and sinking combined three-dimensional extraction design, with stronger smoke extraction and slag extraction ability;
* Universal modular design, which can be quickly upgraded according to different scenarios, different pipe diameters, and different blanking lengths to maximize customer needs;
Parameter
|
Model
|
|
FLT-6035ETN
|
|
|
Maximum cut pipe length
|
|
Raw material length 4000~6000mm; cutting length 0~6000mm
|
|
|
Cut pipe diameter
|
|
40~200mm (circle of workpiece)
|
|
|
Minimum tailings
|
|
≥0mm
|
|
|
X, Y axis positioning accuracy
|
|
±0.05/1000mm
|
|
|
X, Y axis repeat positioning accuracy
|
|
±0.03/1000mm
|
|
|
Acceleration
|
|
0.8G m/s²
|
|
|
Maximum operating speed
|
|
60 m/min
|
|
|
Maximum weight for each tube
|
|
200Kg
|
|
|
Chuck rated speed
|
|
80rpm
|
|
|
Mainframe shape
|
|
about 17000×5500×2600mm
|
|
|
Laser power
|
|
3000w-6000w
|
|
Product Structure
FLT-6035ETN Automatic Three Chuck Laser Tube Cutting Machine
:
Mainframe Shape
The high-strength pipe splicing bed is processed by high-temperature tempering to reduce the internal stress of the bed and avoid deformation , ensure the stability of the machine base for long-term use.
Three Chucks Mutual Shift For Fine Cutting.
Independently researched and developed full-stroke chuck to realize cutting and blanking of any length of pipe, using the entire pipe as much as possible to achieve "zero remains" cutting.
Fully Automatic Loading System
Equipped with a fully automatic loading system to reduce dependence on labor and reduce the labor intensity of operators.
Universal Modular Design
Equipped With Fscut 5000A Bus System
The perfect cooperation of the bus system and the bus motor gives the machine unparalleled advantages in straight-line operation, high-speed cornering, speed reduction, and speed increase;
Sample
*WE SUPPORT FREE SAMPLES SERVICE！！
YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Industry Application
JQLASER fiber laser cutting machines
are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, sheet metal processing, etc.
Certificate
*We have passed
CE
certification,
ISO9001
quality management system certification, Alibaba Jinpincheng Enterprise Certification and design patents and other international certifications.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Customer Site
