2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system
2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system

2bbl 1000l beer machine making nano brewery equipment alcohol electric brewing system

FOB Reference Price: Get Latest Price
≥1 Pieces
US $10465
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
Customizable
Dimension(L*W*H):
Customizable
Weight:
1450 KG
Marketing Type:
New Product 2023
Product Name:
Stainless Steel 1000L Unitank
Material:
Stainless Steel 304
Capacity:
1000L
Inner jacket:
3.0mm
Outer jacket:
2.0mm
Insulation:
Polyurethane/rockwool 80mm
Cooling way:
Double wallet with dimple cooling jacket
Polish Finish:
0.4μm
Function:
Brewing Beer Brewing Equipment
Application:
Brewery/Restaurants/Brewpub/Brewing Plant/Home/Laboratory

Quick Details

Place of Origin:
Shandong, China
Brand Name:
ZR BREW
Voltage:
Customizable
Power:
Customizable
Dimension(L*W*H):
Customizable
Weight:
1450 KG
Marketing Type:
New Product 2023
Product Name:
Stainless Steel 1000L Unitank
Material:
Stainless Steel 304
Capacity:
1000L
Inner jacket:
3.0mm
Outer jacket:
2.0mm
Insulation:
Polyurethane/rockwool 80mm
Cooling way:
Double wallet with dimple cooling jacket
Polish Finish:
0.4μm
Function:
Brewing Beer Brewing Equipment
Application:
Brewery/Restaurants/Brewpub/Brewing Plant/Home/Laboratory
Products Description
Brewing good beer requires good beer equipment. Whether you're brewing beer for your home, pub or brewery, ZR BREW can provide a turnkey solution for your yield needs. We have 1-vessel, 2-vessel, 3-vessel and 4-vessel brewing equipment. We have been adhering to the principle that the equipment is more energy-efficient and easier to operate, so as to save the greatest possible cost for your brewery operation. We also produce fermentation tanks and sake tanks

Product Paramenters

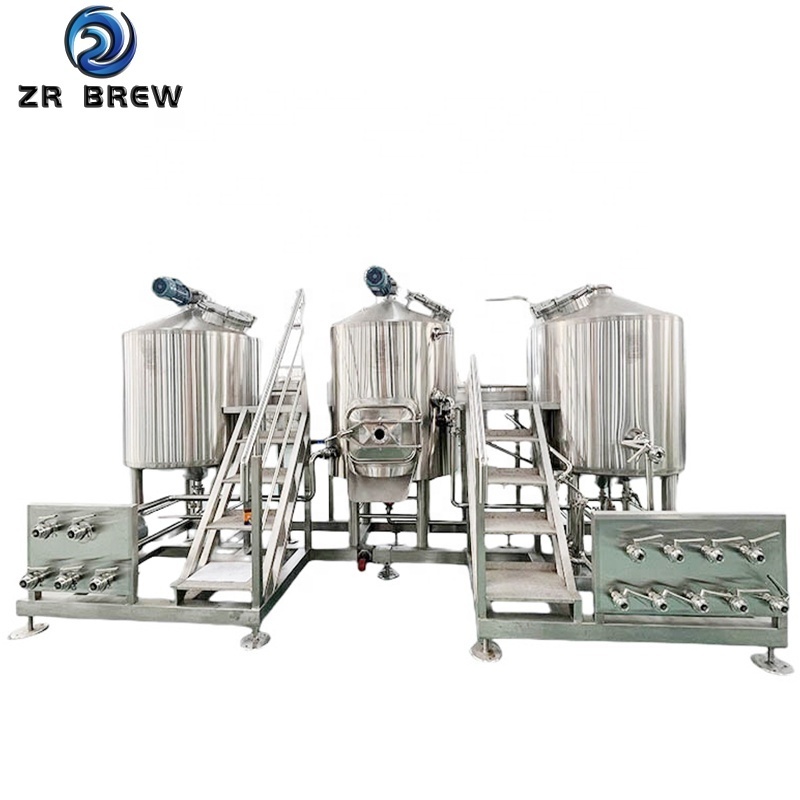

1000L 3-vessel brewhouse
Production
1000L/Batch,Up to 4 batches/day, up to 120T /month
Jacket
Material
SUS304/SUS316
SUS304
ombination method
3-Vessel
0.3 (45psi)
Application
Restaurant /Bar /Hotel /Brewery
Lager/Ale/ IPA/Fruit Beer/ Creative Craft Beer
Useful capacity
1000L
Gross capaity
1400L
Heating way
Electric heating /Steam heating /Direct fire heating
Control System
Fully automated with PLC Siemens /Semi-Automated with PID Schneider
Voltage
Customized
Power
25kw
Water Consumption
6T
Floor space
70-120 ㎡
Note:1Barrel (BBL) =117 Liter 1Hl=100 Liter 1Gallon=3.7854 Liter 145psi=1MPa
Opening a brewery?


01


Brewhouse System
1000L Mash  tun
1
1000L Lauter tun
1
1000L Boiling / Whirlpool Tank
1
Heat-exchanger ,pump and etc.
1 set

02

Fermentation System
1000L Fermentation tank
Calculate according to yield
1000L Bright beer tank
2

03

Heating System
2000L Hot water tank
1
Boiler
1 set

04

Cooling System
2000L Glycol Tank
1
Chiller
1 set

05

CIP cleaning system
100L Acid Tank
1
100L Lye tank
1
Pump
1
06
Control system
Semi-automatic/Fully automatic
1
1000L/Batch,Up to 4 batches/day, up to 12T /month
Details Images
Specification selection
(L)
Production capacity(L)
Power(KW)
Water consumption(T)
Floor space(㎡)
Roof height(mm)
ZR-200
200L/Batch
Electric heating:24KW
Steam / direct fire heating:10KW
1.2
25-40
2300
ZR-300
300L/Batch
Electric heating:36KW
Steam / direct fire heating:10KW
1.8
25-50
2500
ZR-400
400L/Batch
Electric heating:48KW
Steam / direct fire heating:10KW
2.4
35-50
3000
ZR-500
500L/Batch
Electric heating:55KW
Steam / direct fire heating:10KW
2.9
40-60
3000
ZR-600
600L/Batch
Electric heating:60KW
Steam / direct fire heating:15KW
3.6
40-60
3200
R-700
700L/Batch
Electric heating:65KW
Steam / direct fire heating:20KW
4.2
50-70
3200
ZR-800
800L/Batch
Electric heating:70KW
Steam / direct fire heating:20KW
4.8
50-70
3200
ZR-1000
1000L/Batch
Electric heating:80KW
Steam / direct fire heating:25KW
6
70-120
3500
ZR-1500
1500L/Batch
Steam / direct fire heating:130KW
9
100-200
4100
ZR-2000
2000L/Batch
Steam / direct fire heating:140KW
12
150-250
4400
ZR-2500
2500L/Batch
Steam / direct fire heating:150KW
15
180-300
4900
ZR-3000
3000L/Batch
Steam / direct fire heating:200KW
18
200-350
4900
ZR-5000
5000L/Batch
Steam / direct fire heating:300KW
30
400 and above
6000
Our Advantages
1.Pre-sale service :
1. Free turnkey beer brewing/filling/packaging solutions.
2. The technical team with 13 years of experience in the beer brewing equipment industry, one-to-one service, provides different brewing process according to your requirements.
3. According to your site, carry out overall project planning and provide two-dimensional and three-dimensional layout drawings
2.After- sale service:
1. Perfect packaging and transportation, all the tanks are wrapped by three layers of PE protective film, the nozzles are blocked by dust caps, the spare parts are sealed in wooden boxes, the whole loading process is recorded by photos, and accompanied by a checklist, sent to you together.

2. Complete installation and commissioning services, providing detailed installation instructions
in English or French, online video-guided installation and offline door-to-door installation. You can choose between two installation and commissioning modes. We are also establishing technical service teams around the world, so that you can look back worry-free.

3. Lifetime warranty and technical consultation.
Project Case
Why Choose ZR BREW

ABOUT ZR BREW

Shandong Zeren Machinery Equipment Co., Ltd. referred to as ZR BREW.ZR BREW is an equipment manufacturer focusing on the biological fermentation industry, mainly engaged in beer brewing equipment, providing high-end comprehensive services of product design, production, processing, installation, technical process training. ZR BREW's products have been exported to more than 40 countries and regions in the world. Mainly concentrated in Europe and North and South America.

ZR BREW Company is located in Jinan City, and the factory is located in Dezhou City, covering an area of 10,000 square meters. The company has 52 employees, including 6 senior technicians and 8 intermediate technicians, with more than 20 undergraduates. Project leaders and technical engineers have more than 13 years of work experience in the beer industry.
Certifications
FAQ
1.How to achieve temperature control?
The PLC or digital displayer is connected to the PT100 temperature sensor installed on the tank through the signal line to control the temperature.

2.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.

3.What is your payment term? 1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.  2. Paypal or trade assurance is available.
4.How long is your delivery time? Usually the lead time for fermenter tank is 30 working days, while the lead time for complete brewery project is 40 working days, timed from final drawing confirmed

5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing.
