EweLink Wireless Wifi Switch DC 5V 12v 24v 32v Inching/Self-Locking Wireless Relay Module Smart Home Automation Receiver Module

EweLink Wireless Wifi Switch DC 5V 12v 24v 32v Inching/Self-Locking Wireless Relay Module Smart Home Automation Receiver Module

FOB Reference Price: Get Latest Price

≥10 Pieces

US $5.25

≥100 Pieces

US $4.85

≥1000 Pieces

US $4.65

≥100000000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: MU

Model Number:: MU-7-32V

Operating Temperature:: -40 degrees to +70 degrees

Product name:: eWeLink Wifi Module 1CH DC 12V 32V Inching Self-locking WIFI Receiver

APP Name:: Ewe Link

Certificate:: CE ROHS

Package:: Electrostatic Bag

Condition:: New100%

MOQ:: 10 PCS

Usage:: Smart Home

Current:: Max 10A

Voltage:: 7-32V

Support:: alexa, google home, IFTTT

Certification:: CE

Quick Details

Max. Current:: 10A

Max. Voltage:: 32V

Network:: Wifi

Place of Origin:: Guangdong, China

Brand Name:: MU

Model Number:: MU-7-32V

Operating Temperature:: -40 degrees to +70 degrees

Product name:: eWeLink Wifi Module 1CH DC 12V 32V Inching Self-locking WIFI Receiver

APP Name:: Ewe Link

Certificate:: CE ROHS

Package:: Electrostatic Bag

Condition:: New100%

MOQ:: 10 PCS

Usage:: Smart Home

Current:: Max 10A

Voltage:: 7-32V

Support:: alexa, google home, IFTTT

Certification:: CE

Product Description

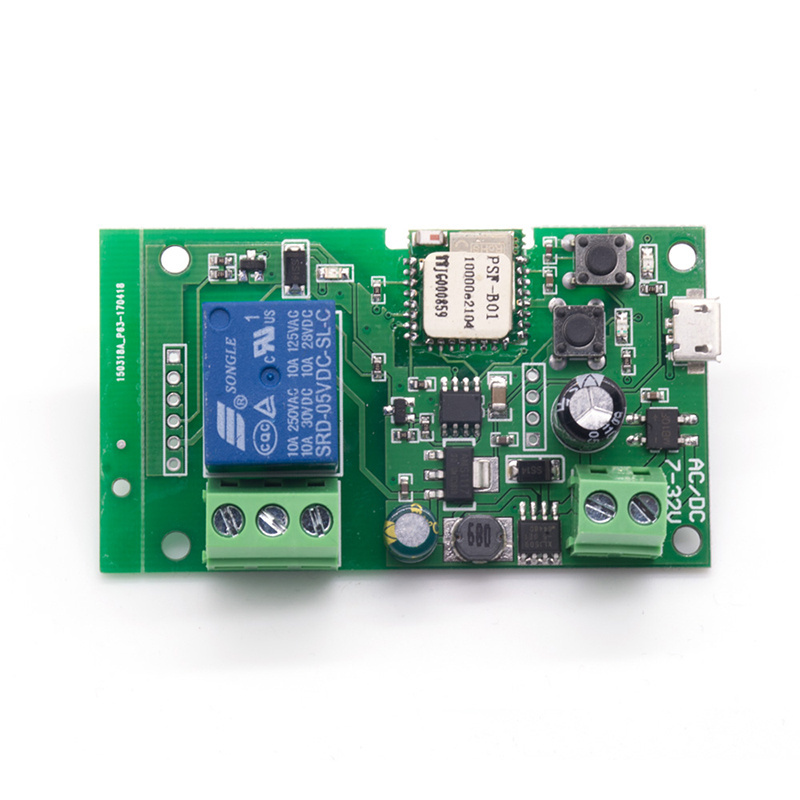

Name	eWeLink Wifi Module 1CH DC 12V 32V Inching Self-locking WIFI Receiver 10A Relays
Max Current:	10A
Voltage	7-32V DC
APP	EWELINK
Transportation Mode	Wifi

Description

This wireless switch is a low-cost, affordable device that allows users to remote turn on/off connected appliance of different
types and brands via app EWeLink from anywhere anytime in the world, and by setting timing schedules for your appliances, you can
maintain an carefree life. It supports inching /self-locking mode. In self-locking mode, customers can remotely turn on/off
connected devices immediately. When in inching mode, customers can have two wiring ways to select: Turn on 1s and then auto-off,
Turn off 1s and then auto-on

Features:
*Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
*Supports status tracking: device status timely provided to the EWeLink.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric
curtain, etc.
*Supports max 8 enabled scheduled/countdown/loop timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, for Google Home/Nest, IFTTT

Specifications:
LEDs: 3 LEDs(indicate working mode, wifi status, relay on/off status respectively)
Supports to control different voltage ranges
USB port power supply more convenient
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥ one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching /self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: EWeLink on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH

1channel
1ch DC7V-32V (No RF function) Size: 70.5*27.4*23mm
